Home >> Toyota >> 2007 >> Sequoia Limited, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (2UZ-FE) >> Throttle Body >> Components

Throttle Body: Components

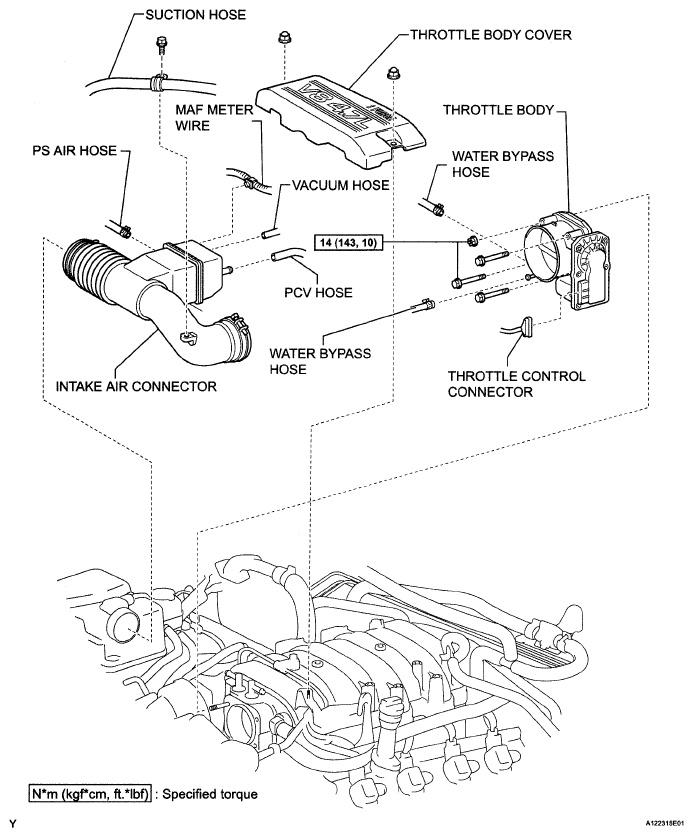

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05190654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
