Fuel Tank: Installation

  1. INSTALL FUEL PUMP ASSEMBLY

    (See INSTALLATION  )

  2. INSTALL FUEL TANK ASSEMBLY
    1. Set up the fuel tank to the transmission jack.
    2. Operate the transmission jack and install the fuel tank.
    3. Install the 2 fuel tank bands with the 2 bolts.

      Torque: 62 N*m (632 kgf*cm, 45 ft.*lbf)

  3. CONNECT FUEL HOSE AND BREATHER TUBE
    1. Connect the fuel inlet hose to the filler pipe and install the clamp.
    2. Connect the breather tube. (See INSTALLATION  )

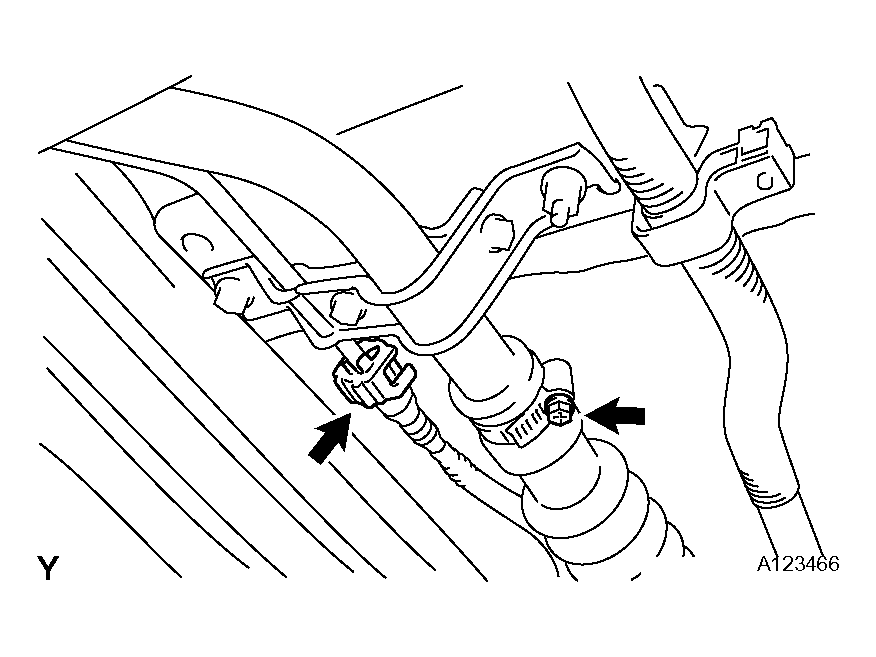

      Fig 1: Connecting Fuel Inlet Hose & Breather Tube
      G04507498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT FUEL TANK VENT HOSE
    1. Connect the fuel tank vent hose to the charcoal canister.

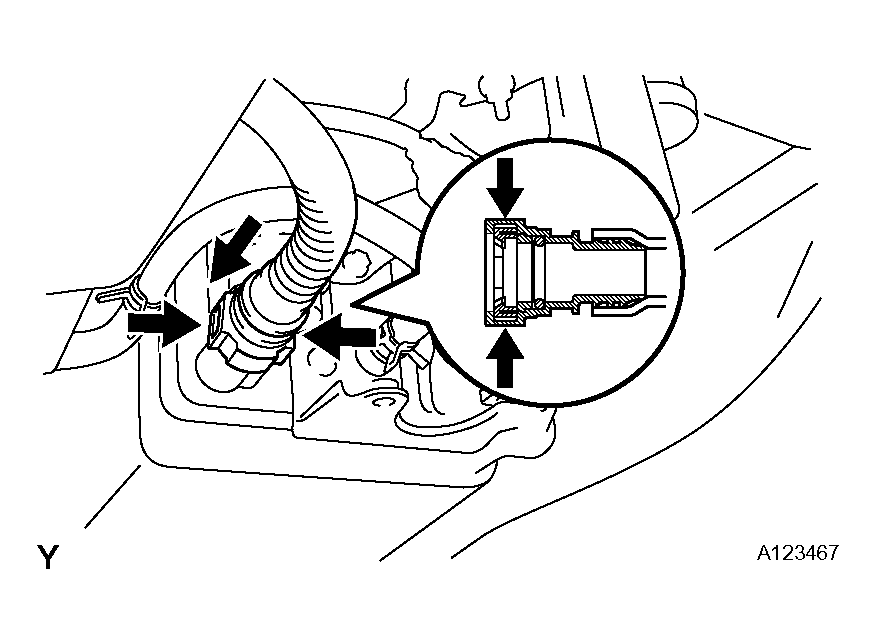

      Fig 2: Disconnecting Fuel Tank Vent Hose
      G04507499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT FUEL TANK MAIN TUBE AND RETURN TUBE

    (See INSTALLATION  )

  6. INSTALL FUEL TANK PROTECTOR
    1. Install the fuel tank protector with the 2 bolts and 2 nuts.
  7. CONNECT FUEL PUMP CONNECTOR
  8. CHECK FOR FUEL LEAKS
  9. INSTALL SPARE TIRE

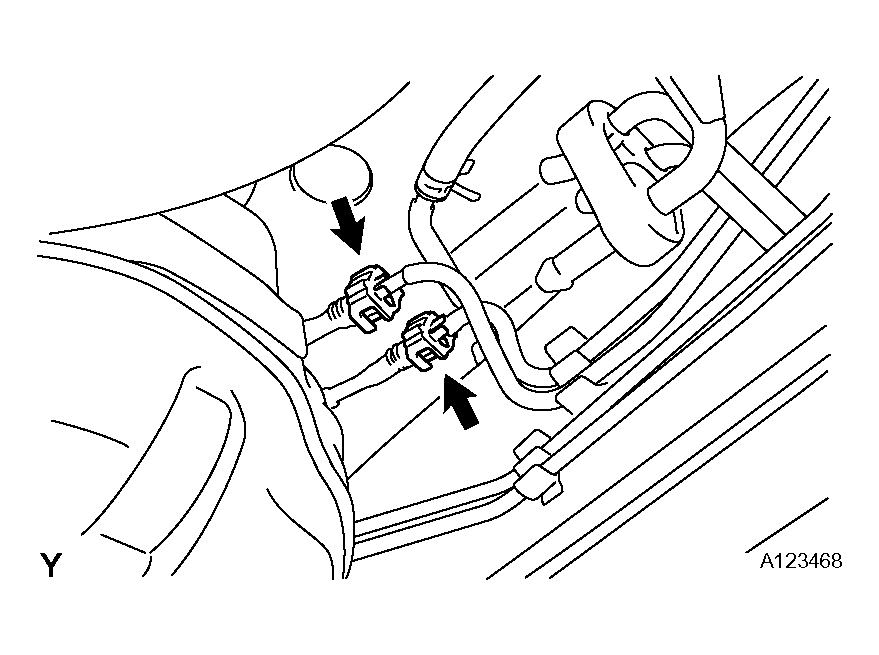

    Fig 3: Connecting Fuel Tank Main Tube & Return Tube
    G04507500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
