Home >> Toyota >> 2007 >> Sequoia Limited, RWD >> Repair and Diagnosis >> General Information >> Identification >> Introduction >> Identification Information >> Vehicle Identification And Serial Numbers

Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
      1. Vehicle Identification Number
      2. Certification Label

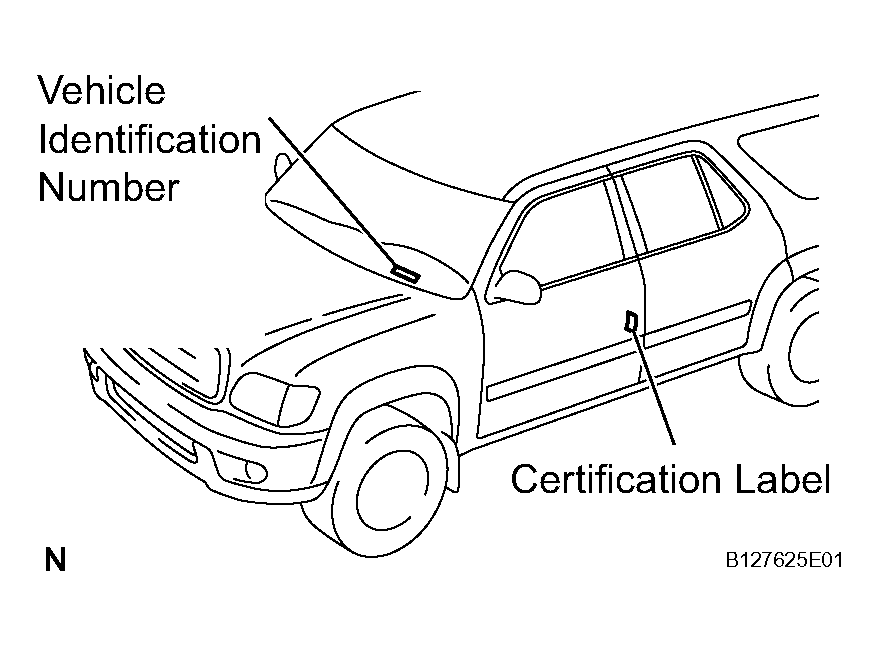

        Fig 1: Identifying Vehicle Identification Number & Certification Label Location
        G04506021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.
      1. Engine Serial Number

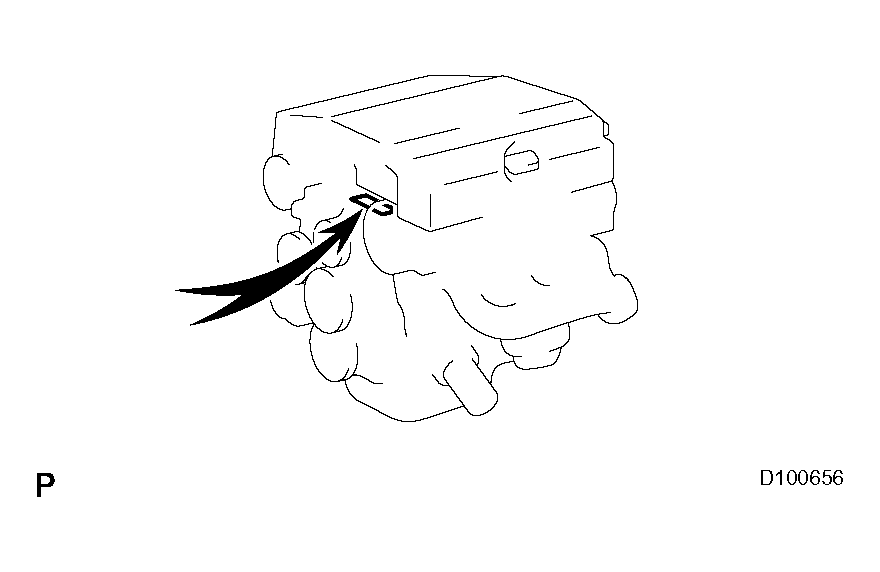

        Fig 2: Identifying Engine Serial Number Location
        G04506022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Transmission Serial Number

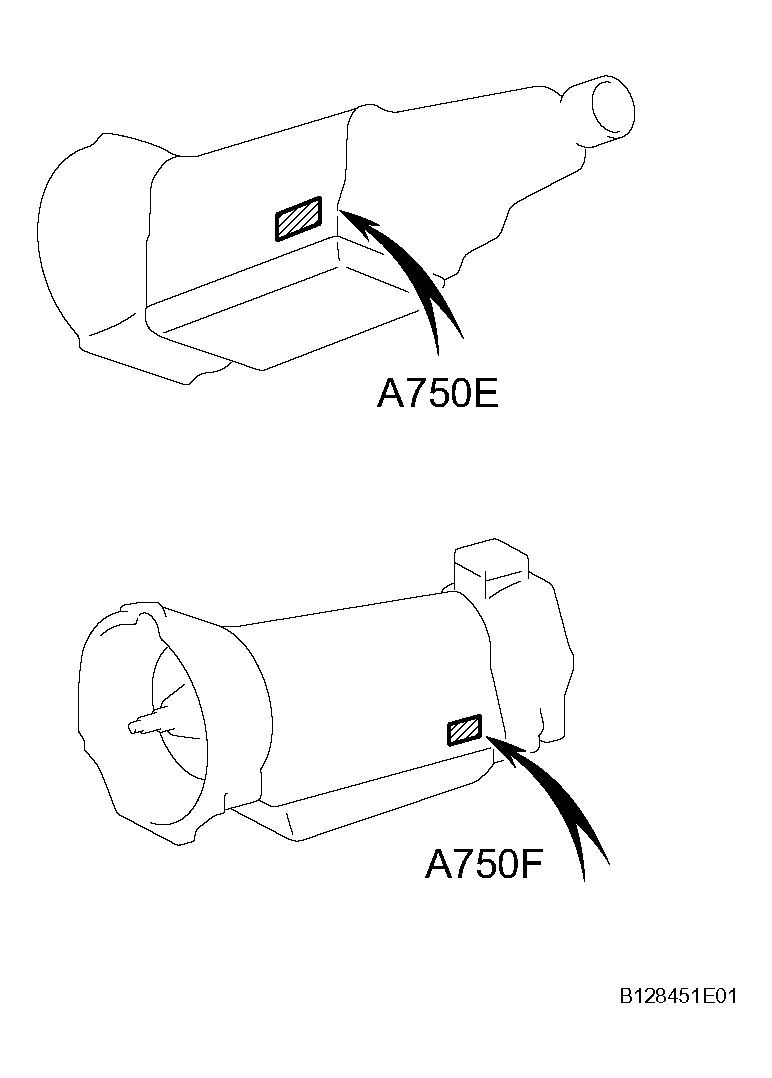

        Fig 3: Identifying Transmission Serial Number Location
        G04506023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
