Power Window without Jam Protection: Notes

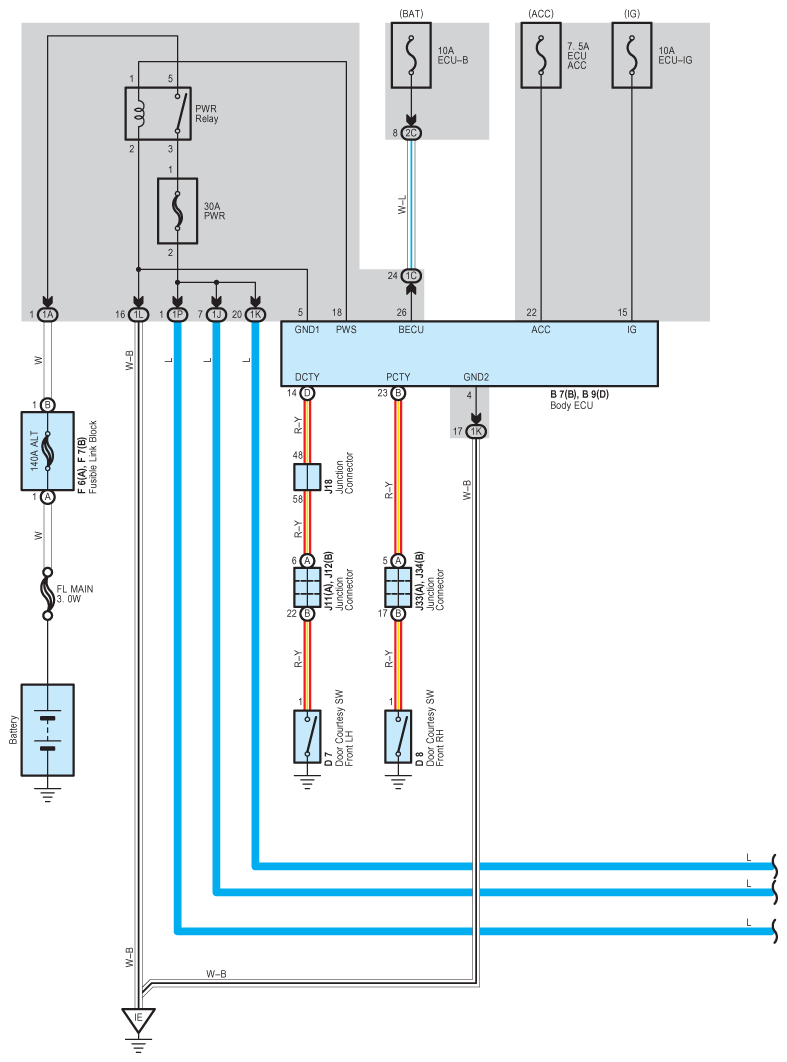

Fig 1: Power Window System (Without Jam Protection) Wiring Diagram (1 Of 3)
G08841958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

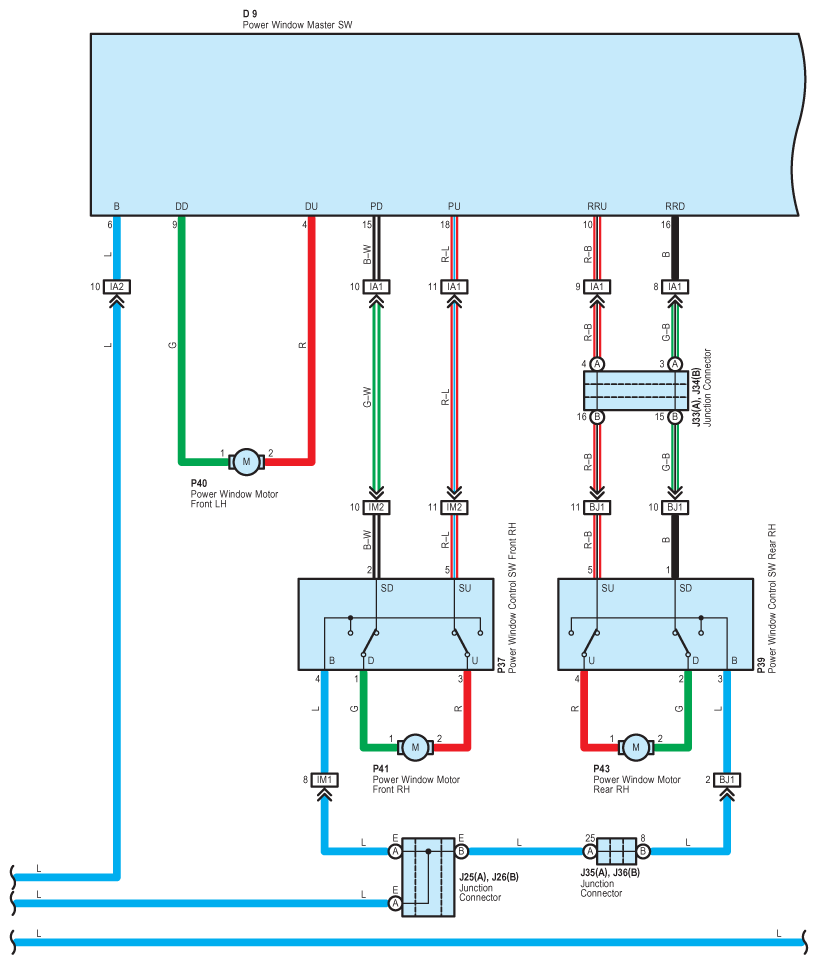

Fig 2: Power Window System (Without Jam Protection) Wiring Diagram (2 Of 3)
G08841959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

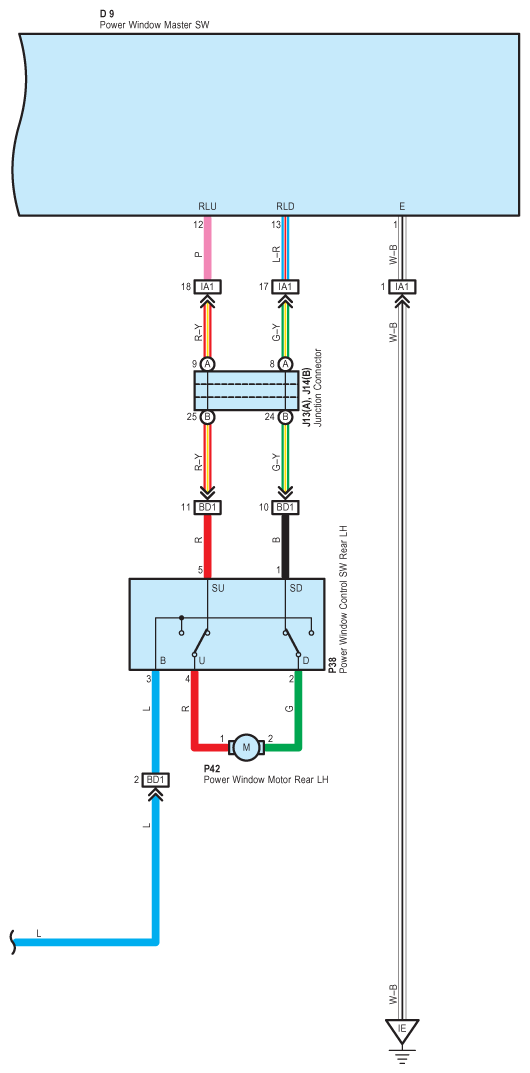

Fig 3: Power Window System (Without Jam Protection) Wiring Diagram (3 Of 3)
G08841960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
