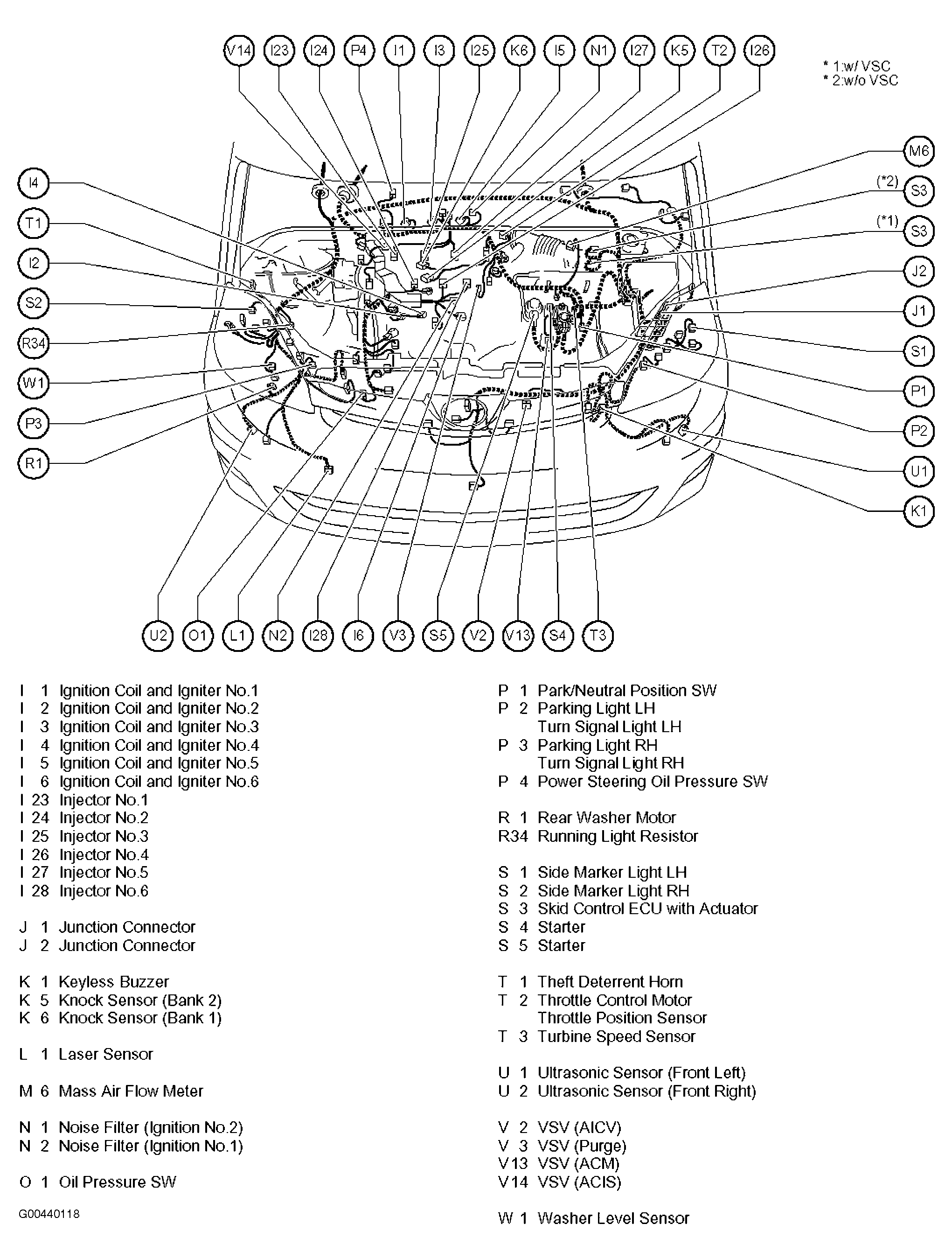

Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

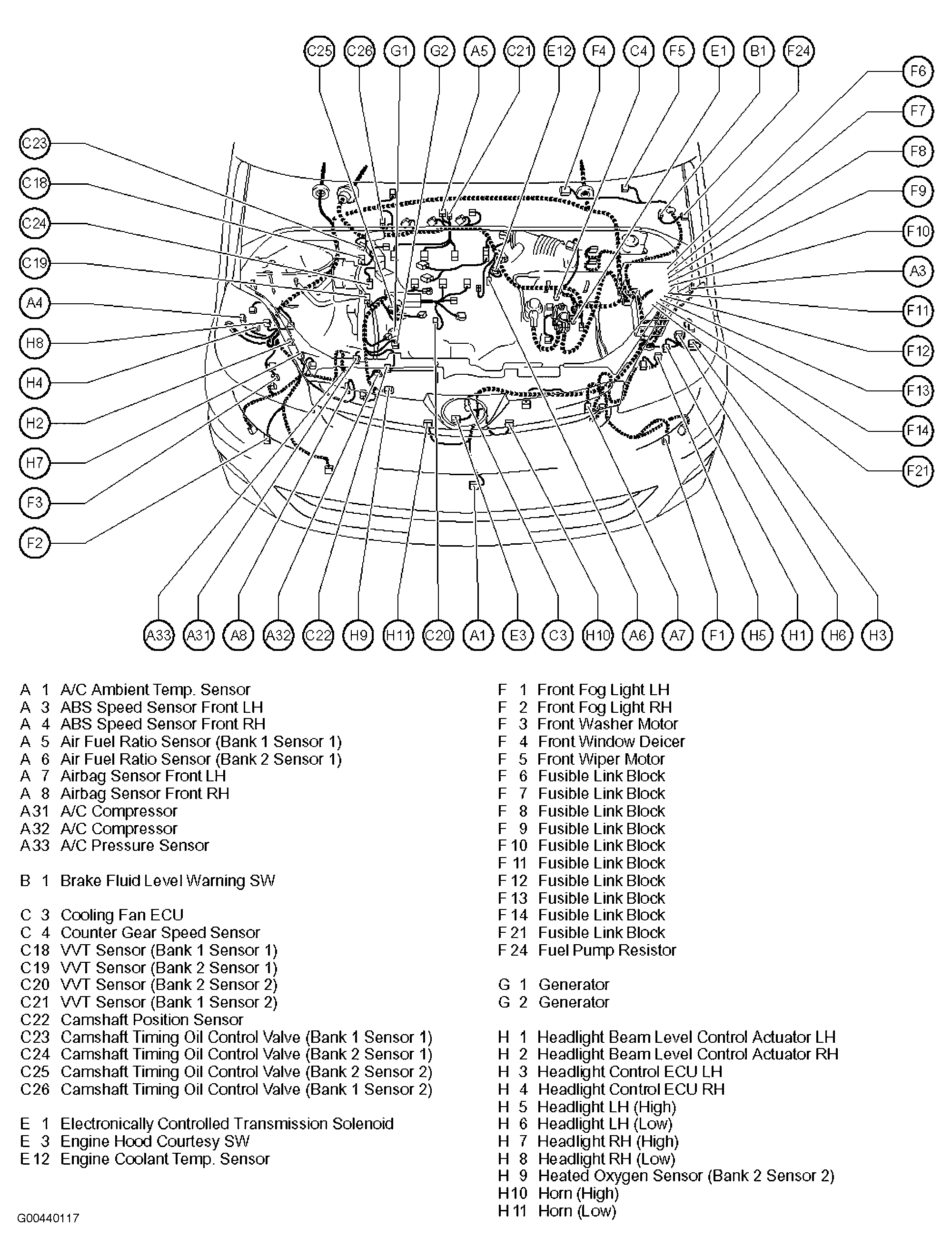

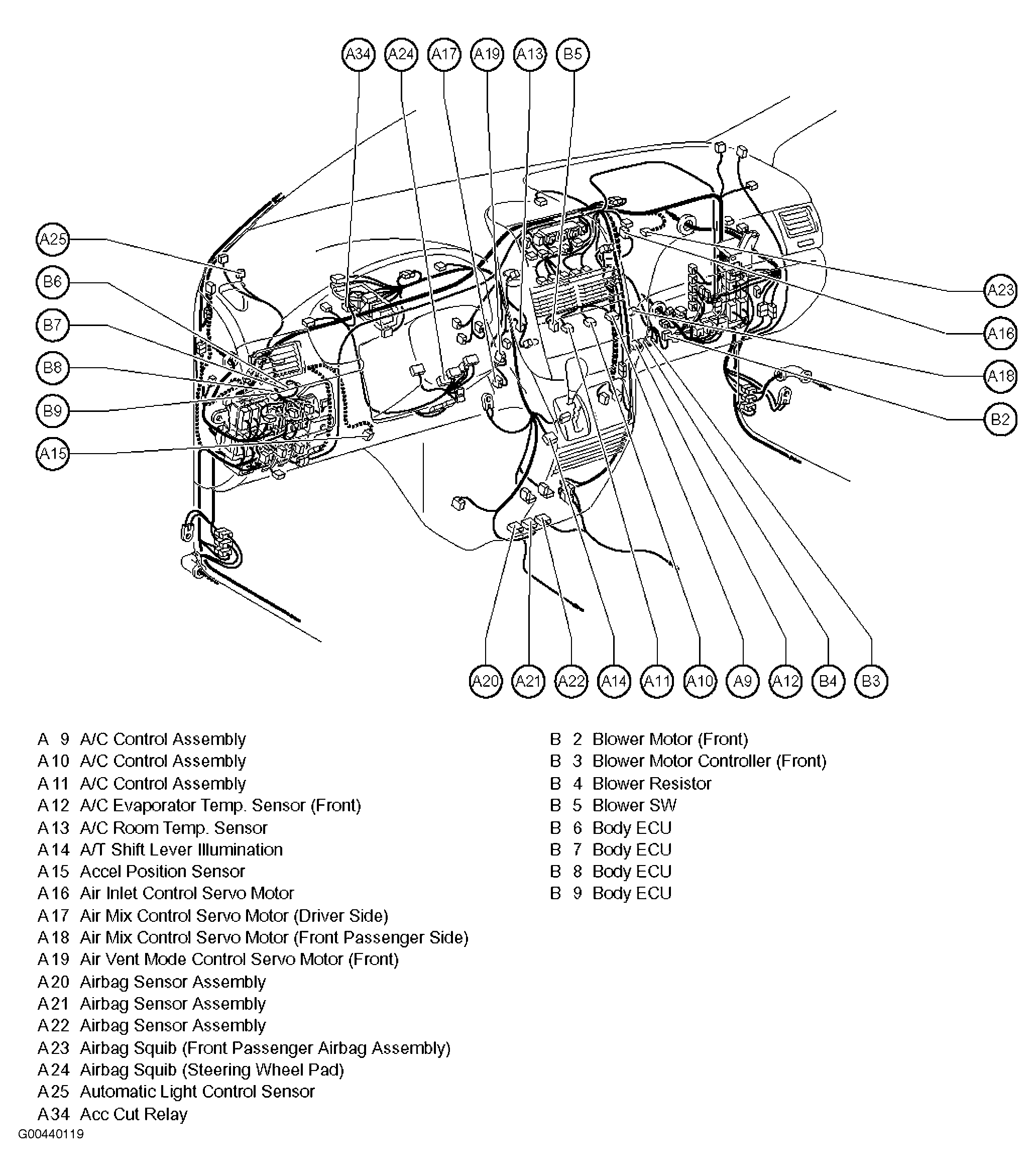

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

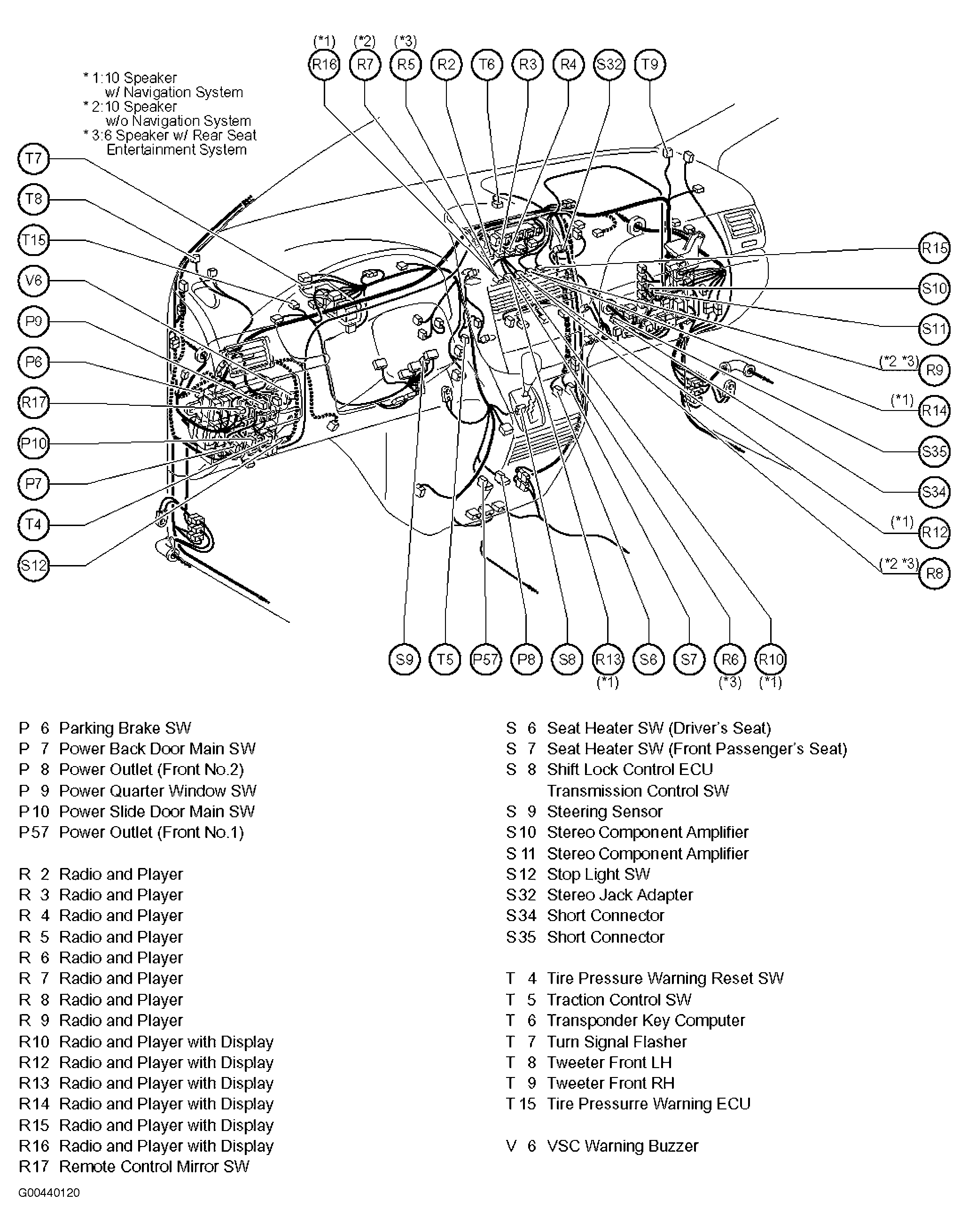

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

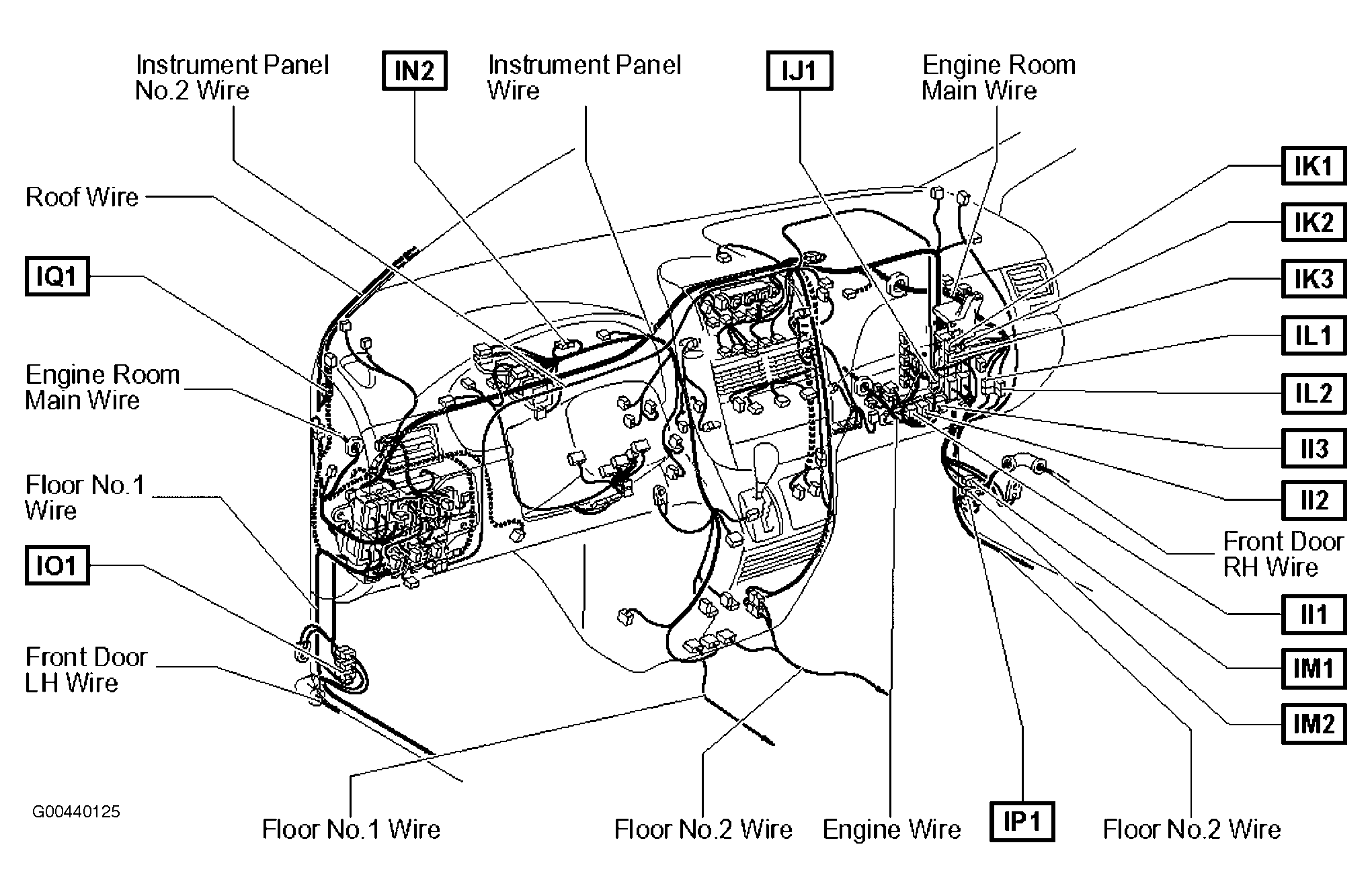

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

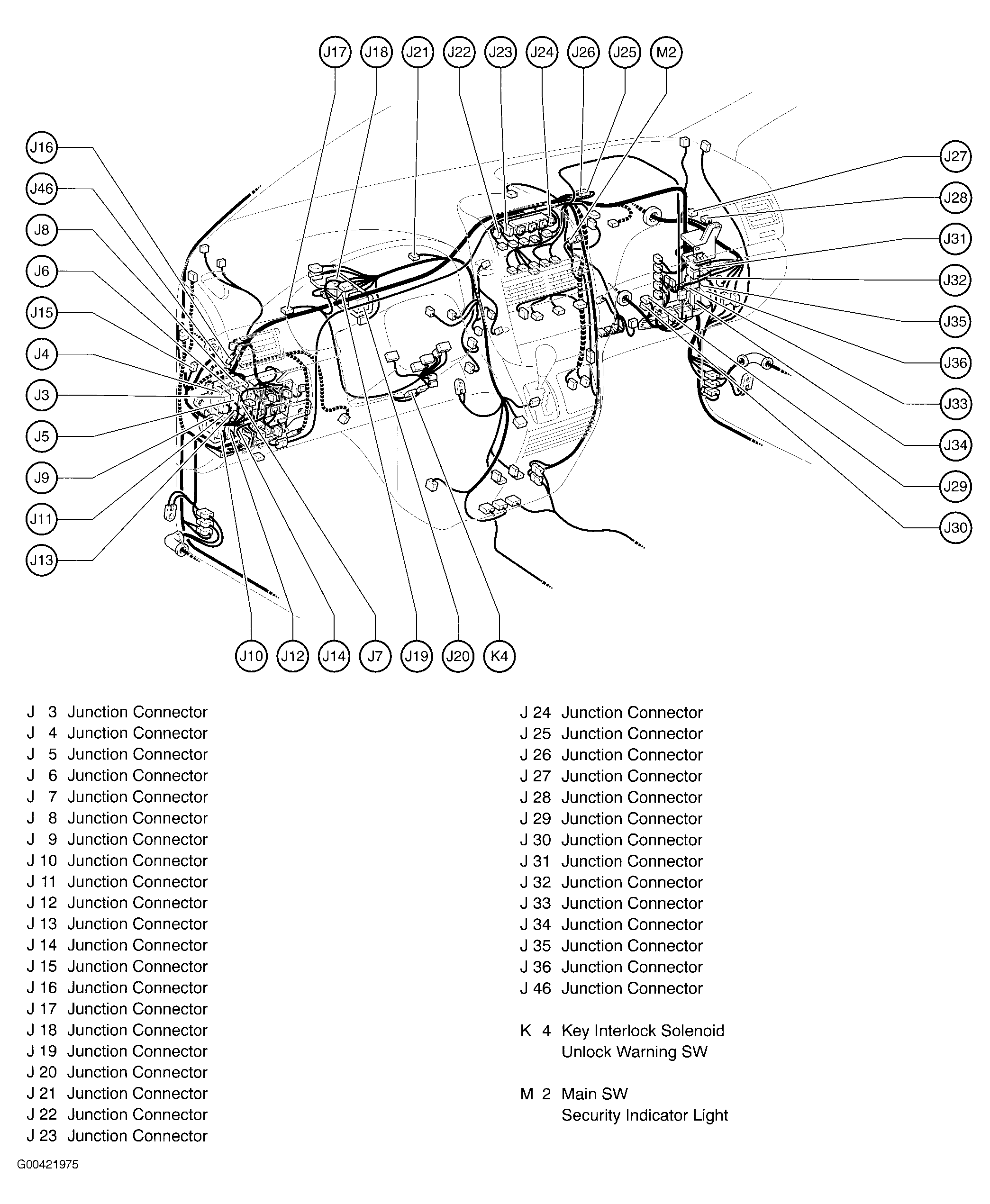

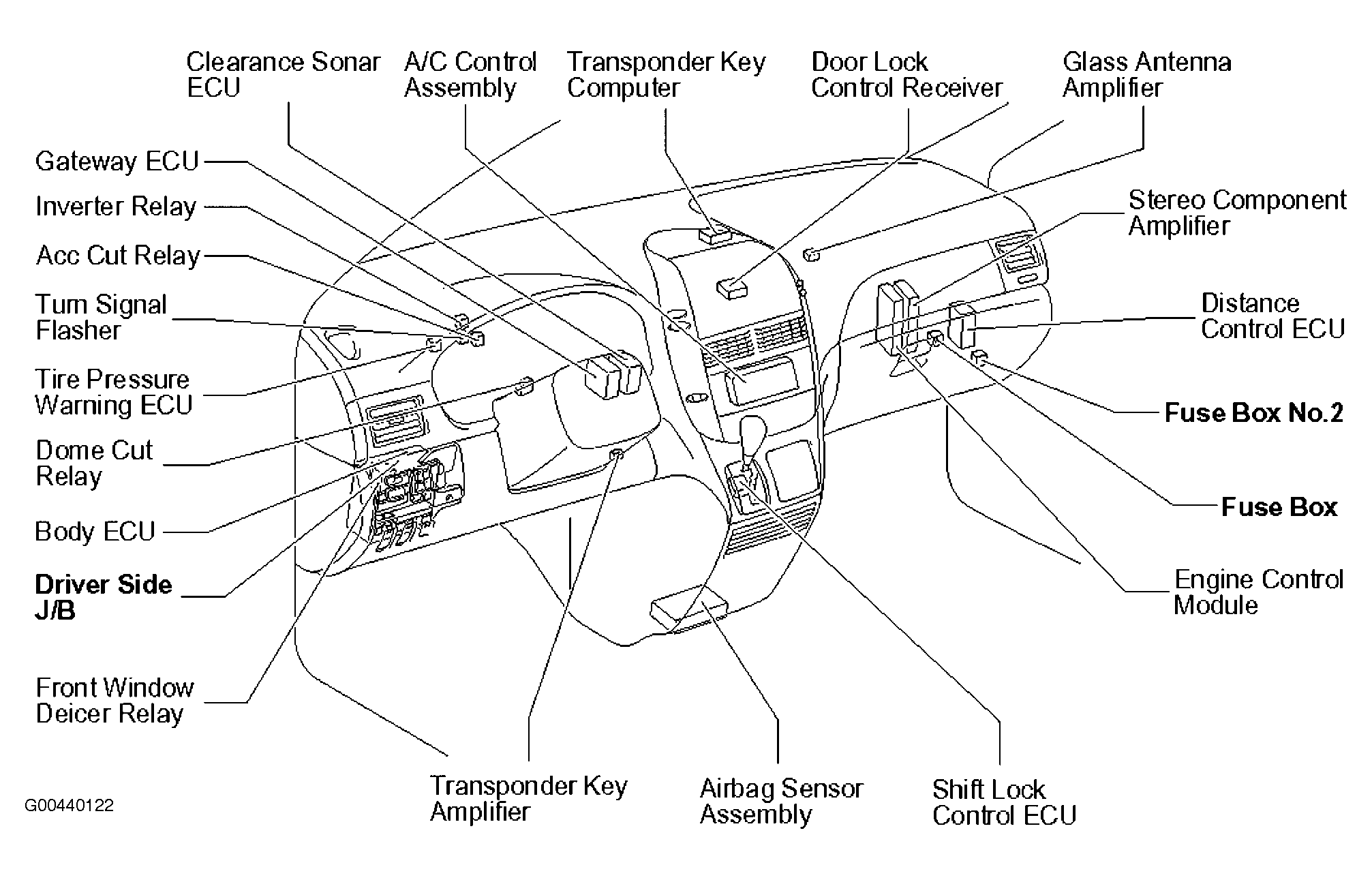

Fig 6: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

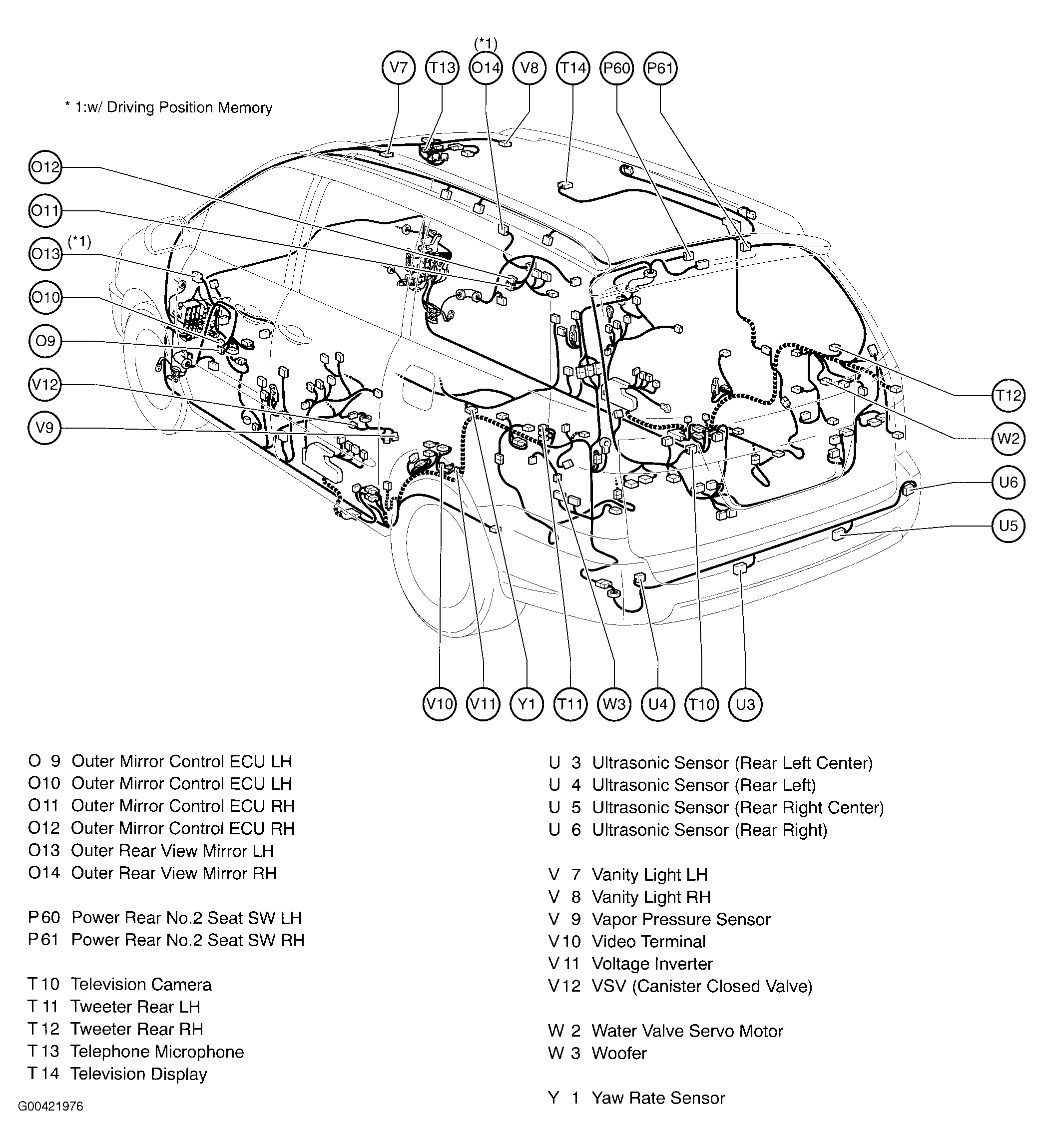

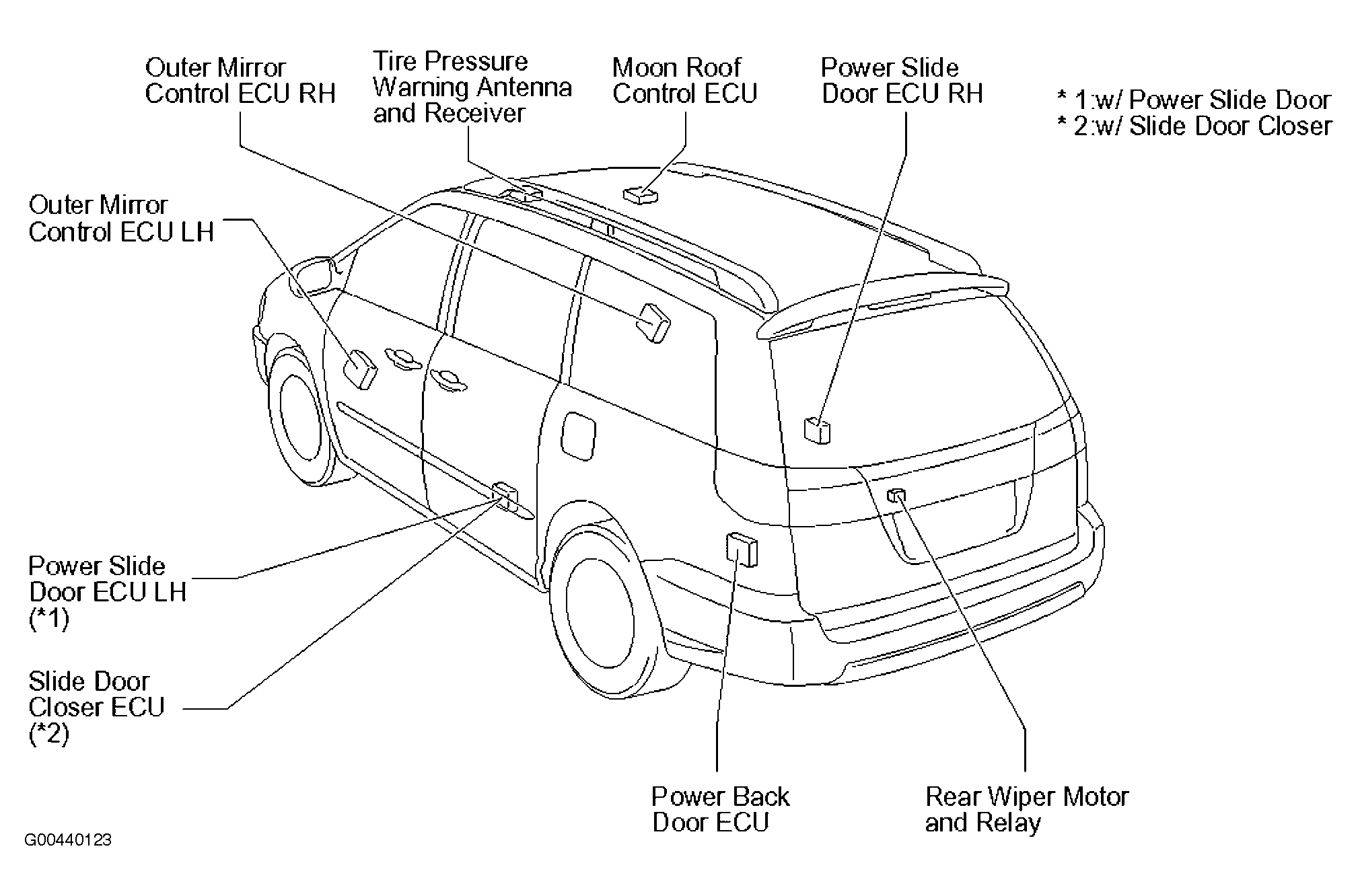

Fig 7: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

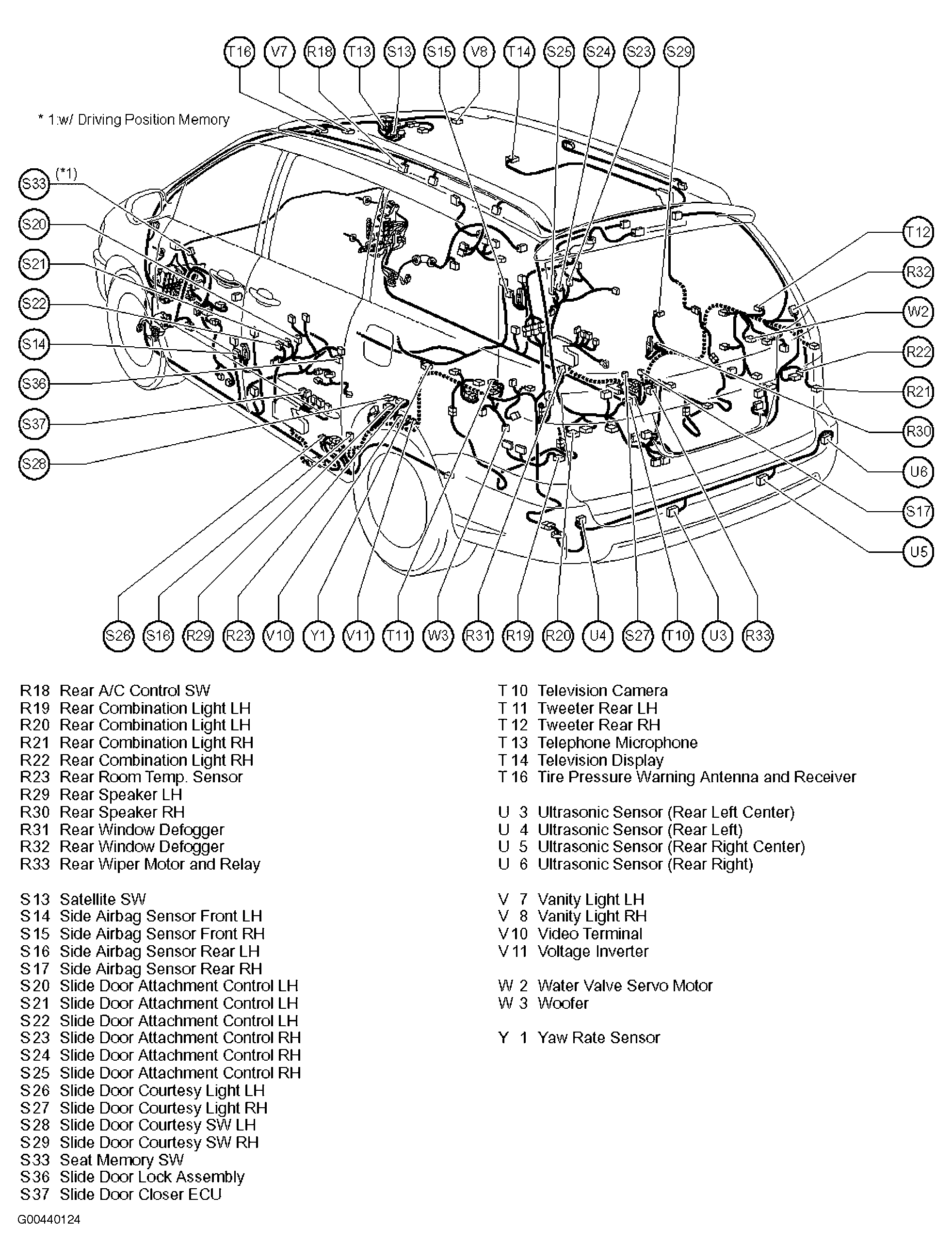

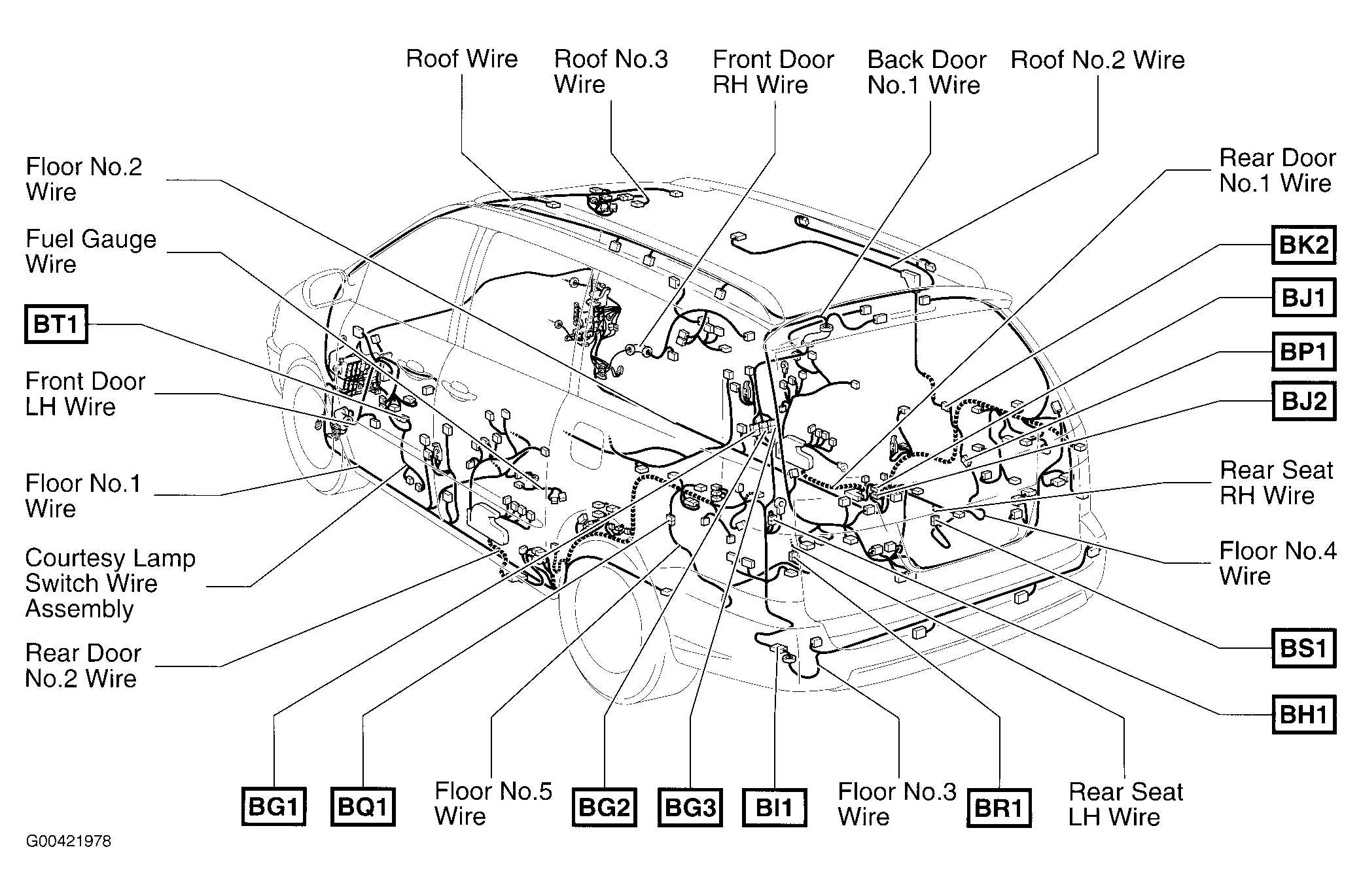

Fig 8: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

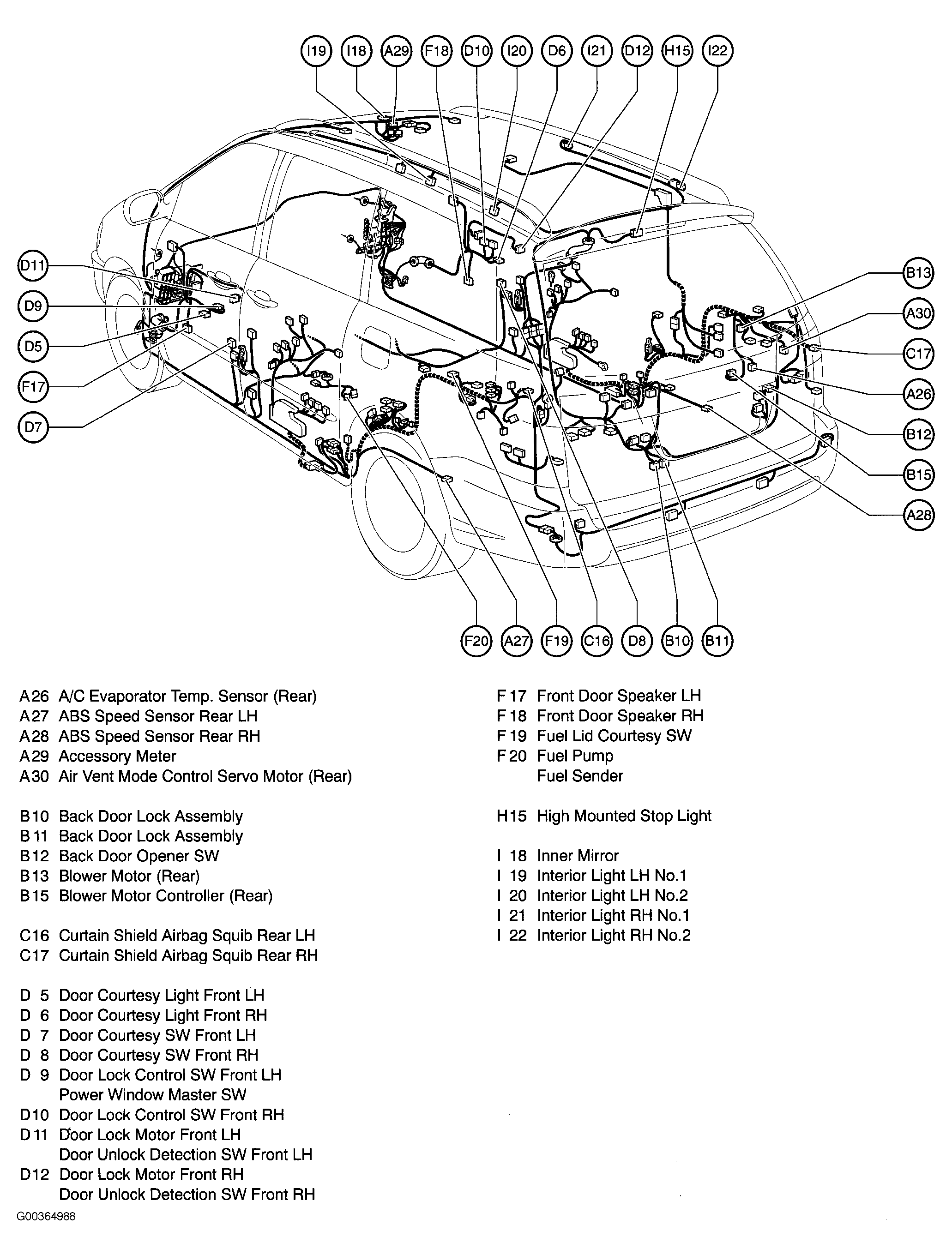

Fig 9: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

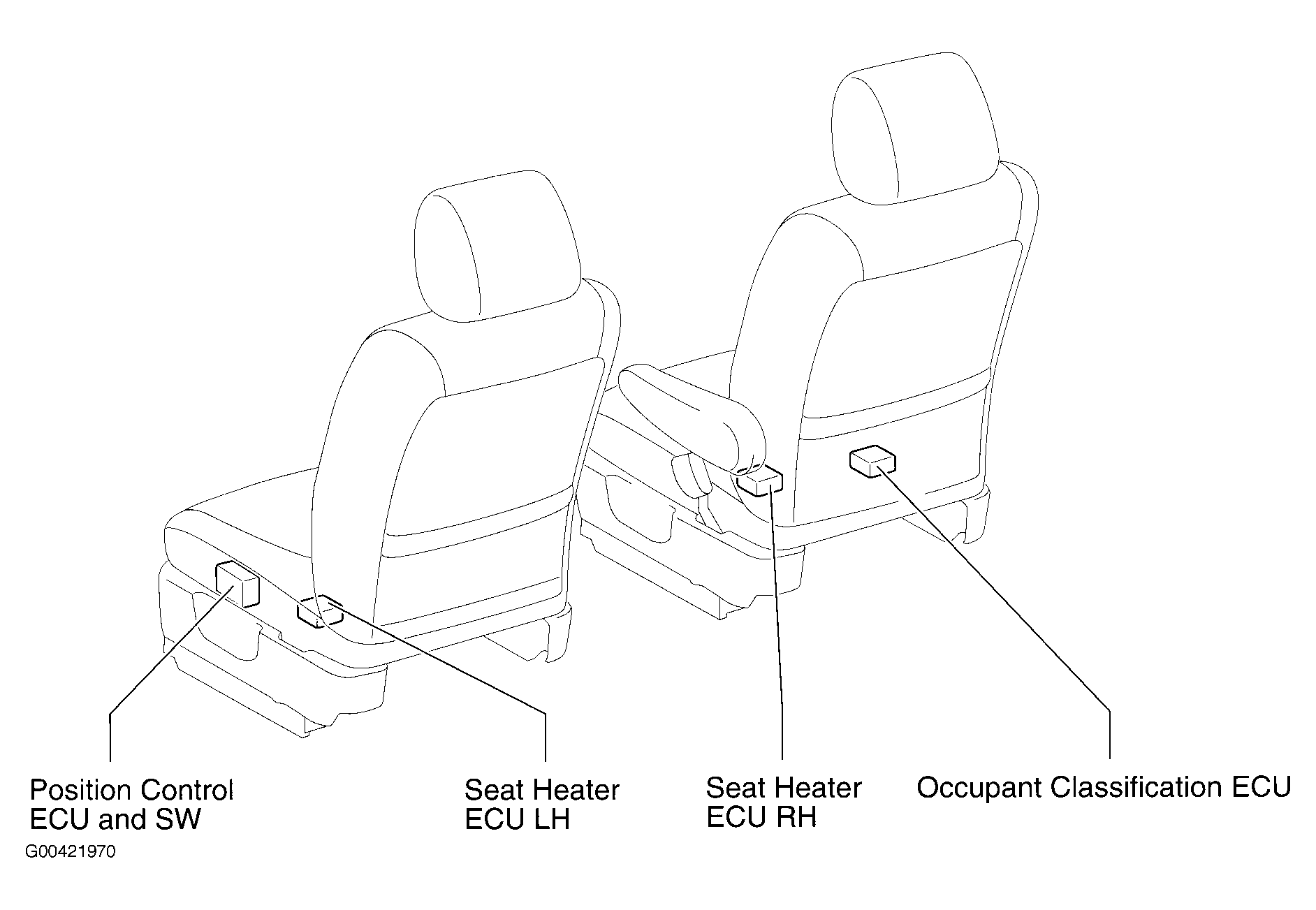

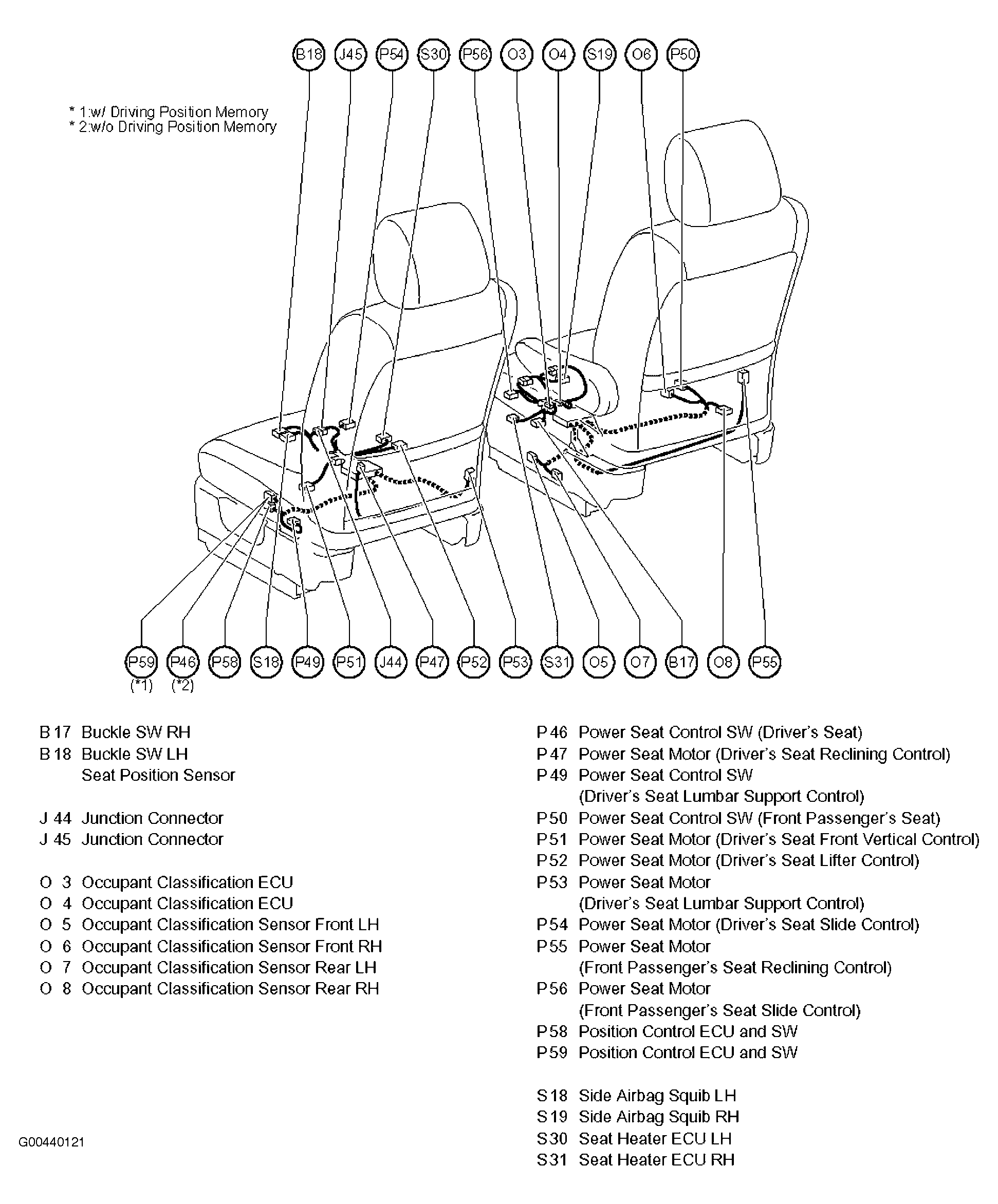

Fig 11: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Front Seats

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

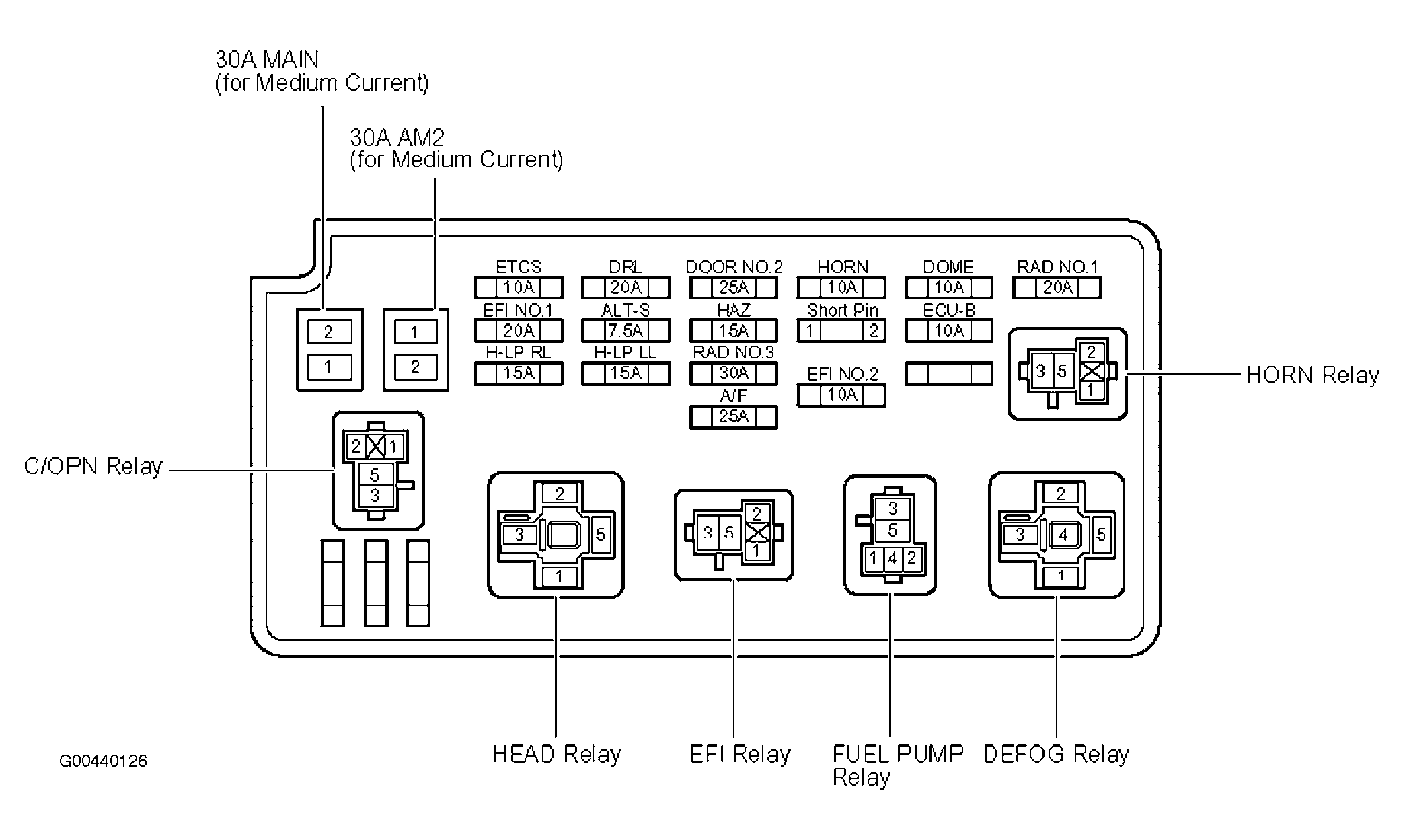

Fig 21: Engine Room J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

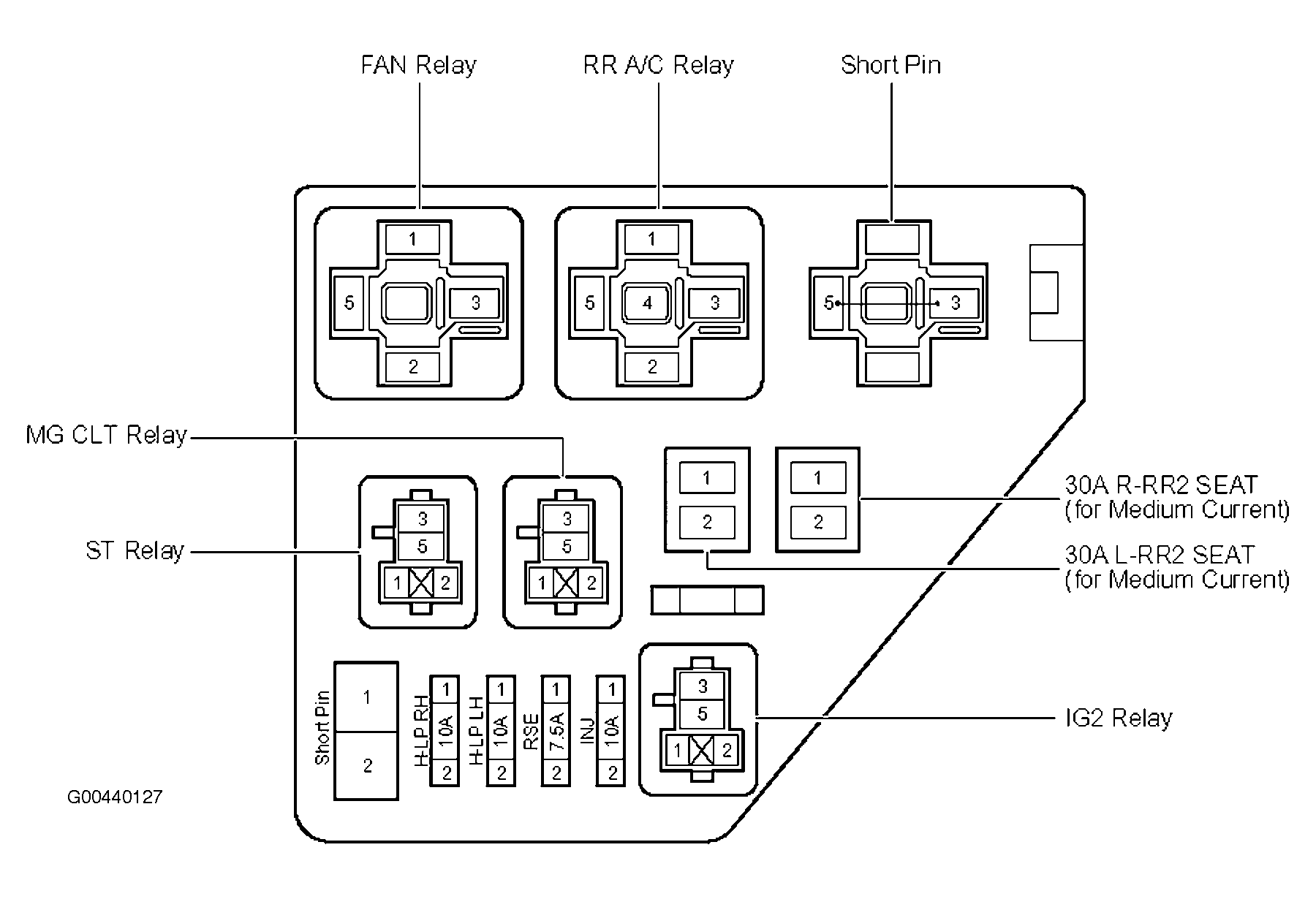

Fig 22: R/B No. 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: R/B No. 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY BLOCK NO. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.3 Relay
DRL No.2 Relay
DRL No.4 Relay

Fig 24: R/B No. 5

ENGINE COMPARTMENT RELAY BLOCK NO. 5 RELAY IDENTIFICATION

RELAY DESCRIPTION
VSC Fail Relay
VSC MTR Relay

Fig 25: R/B No. 6

ENGINE COMPARTMENT RELAY BLOCK NO. 6 RELAY IDENTIFICATION

RELAY DESCRIPTION
BRK Relay
A/F Relay

Fig 26: Driver Side J/B

DRIVER'S SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
Fog Relay
IG1 Relay
PWR Relay
ACC Relay

Fig 27: Dash

Fig 28: Vehicle Overview

Fig 29: Front Seats

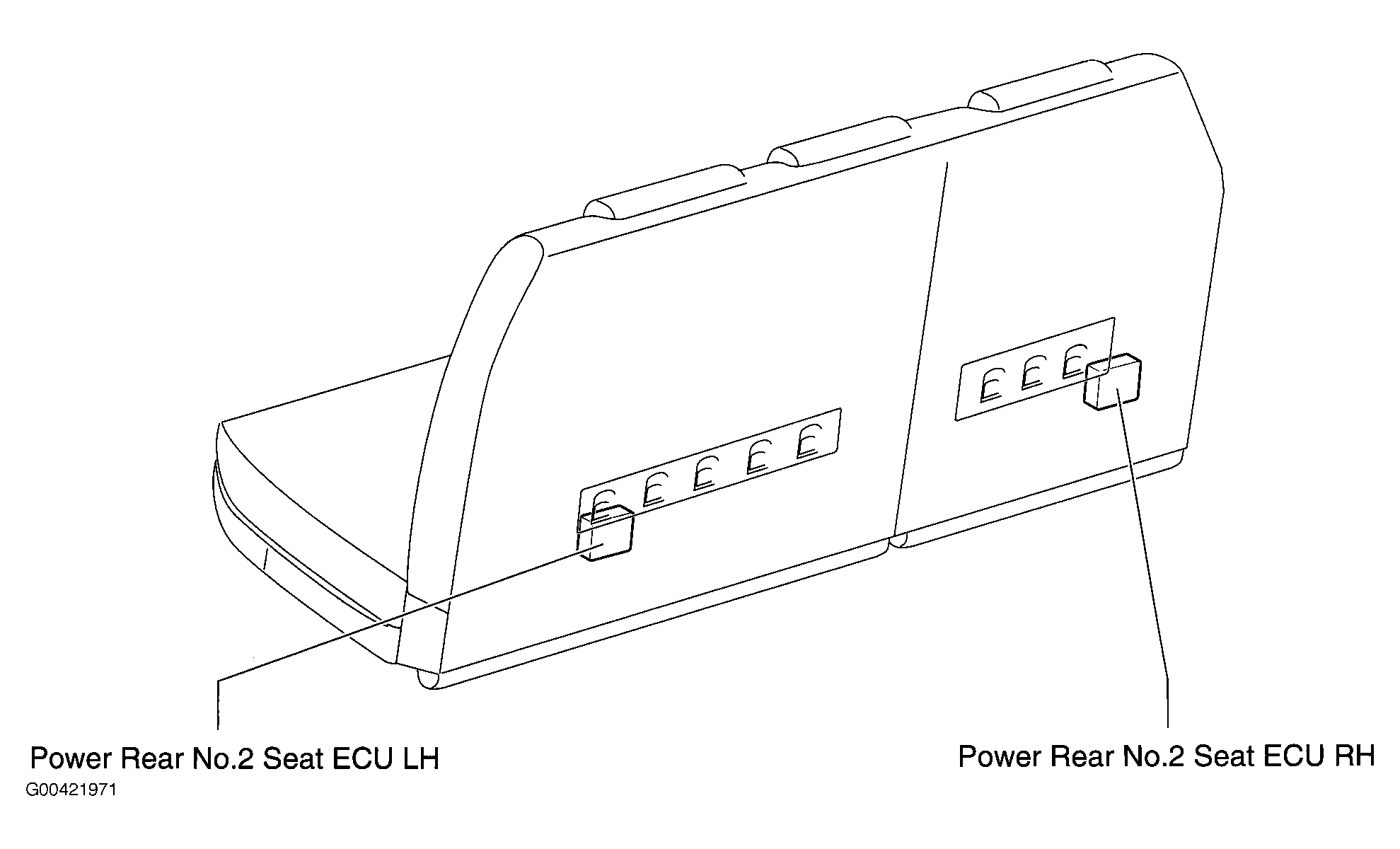

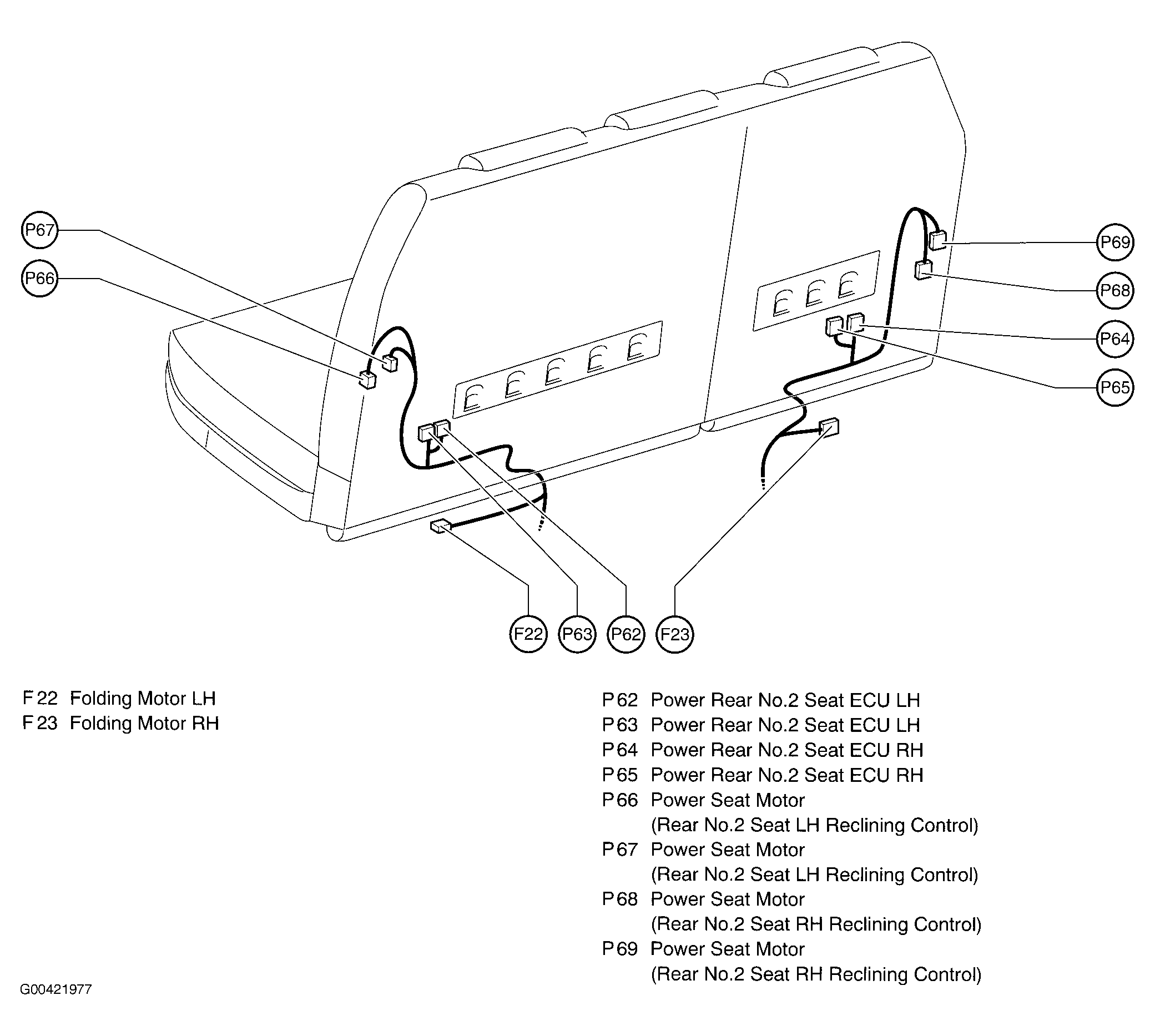

Fig 30: Rear No. 2 Seat

Fig 31: Rear No. 2 Seat

Fig 32: Front Seat W/ Power Seat
