Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustrations.
      1. Vehicle Identification Number Plate
        2. Fig 1: Identifying Vehicle Identification Number Plate
        G05157010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Certification Label
        3. Fig 2: Identifying Vehicle Identification Number Plate For Regular Cab
        G05157011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 3: Identifying Vehicle Identification Number Plate For Double Cab, Crew Max
        G05157012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustrations.
      1. Engine Serial Number

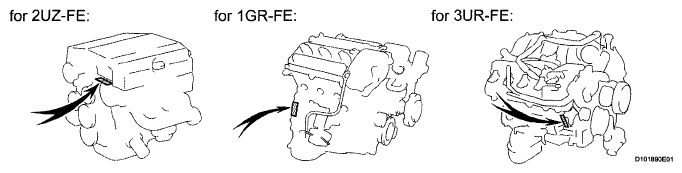

        Fig 4: Identifying Engine Serial Number
        G05157013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Transmission Serial Number
        Fig 5: Identifying Transmission Serial Number
        G05157014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
