Headlight System: Notes

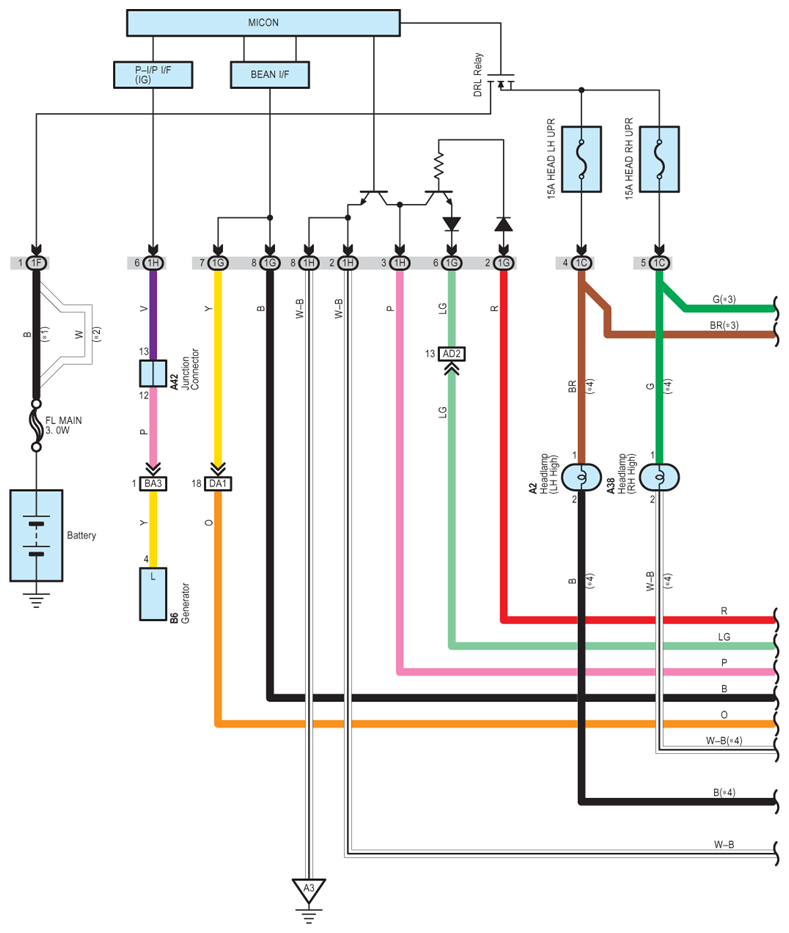

Fig 1: Headlight - Circuit Diagram (1 Of 4)
G07616427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

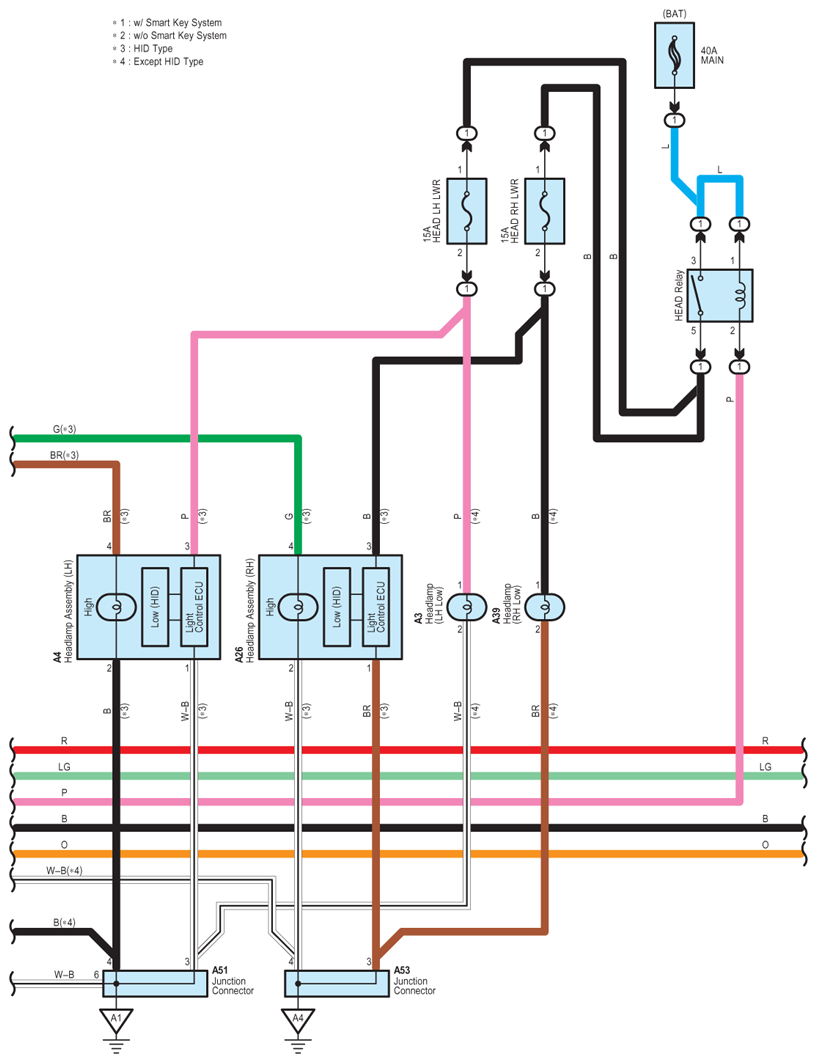

Fig 2: Headlight - Circuit Diagram (2 Of 4)
G07616428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

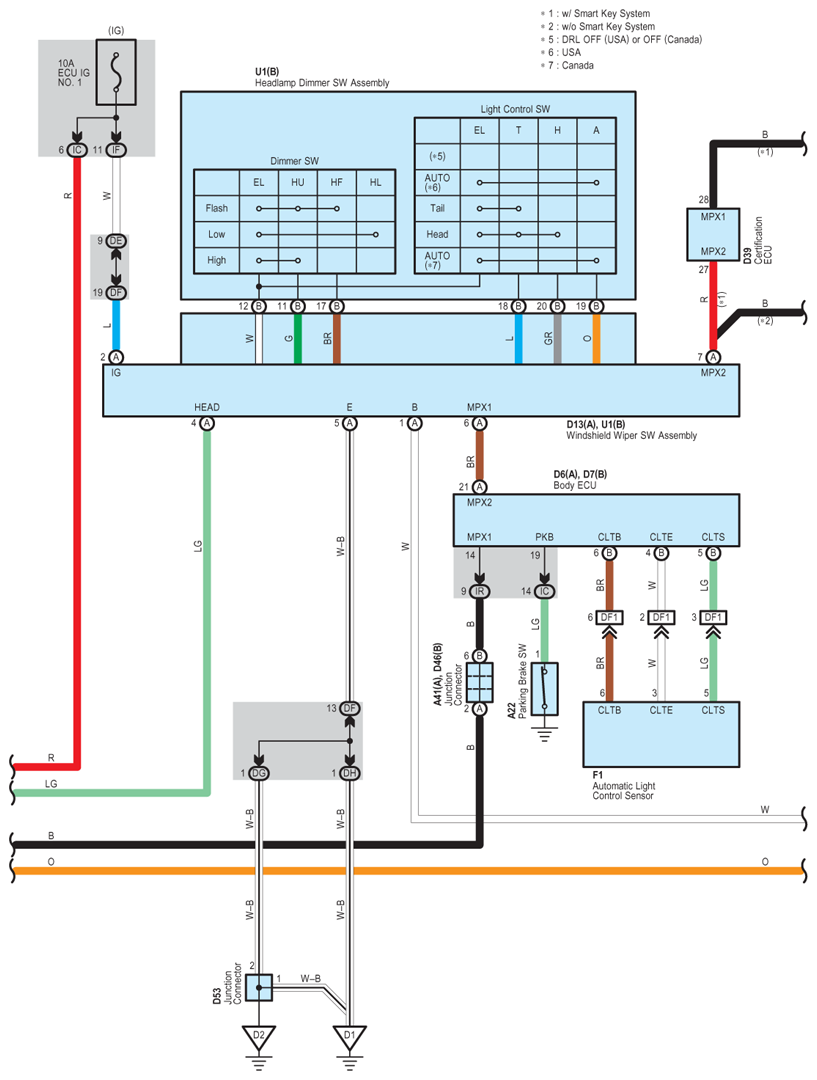

Fig 3: Headlight - Circuit Diagram (3 Of 4)
G07616429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

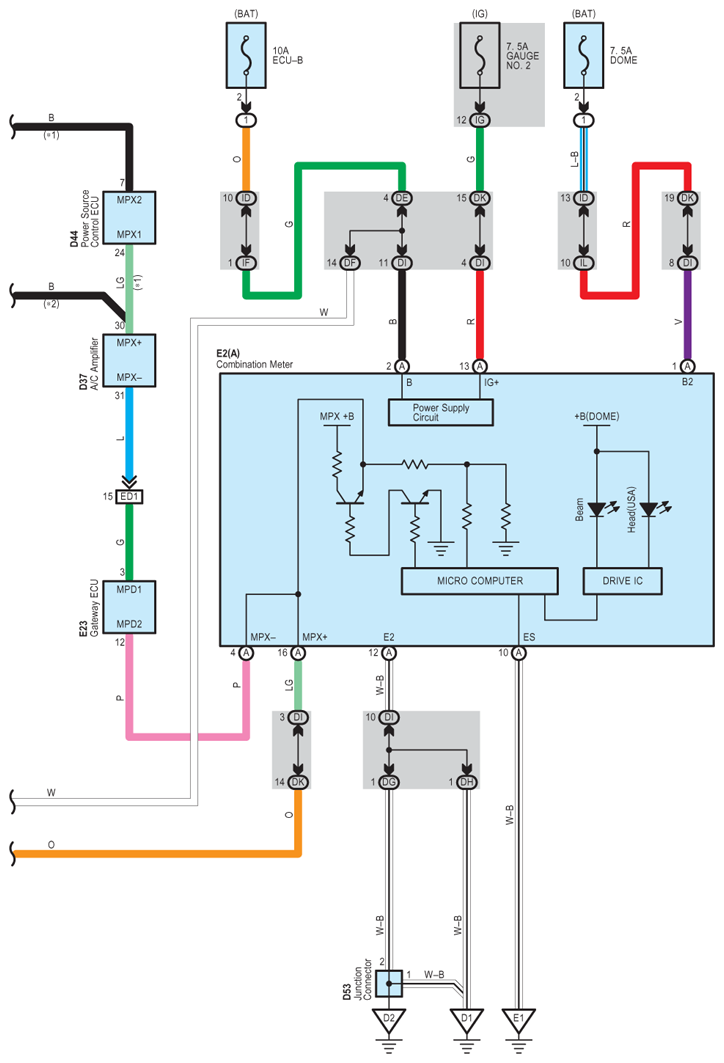

Fig 4: Headlight - Circuit Diagram (4 Of 4)
G07616430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
