Power Window System: Notes

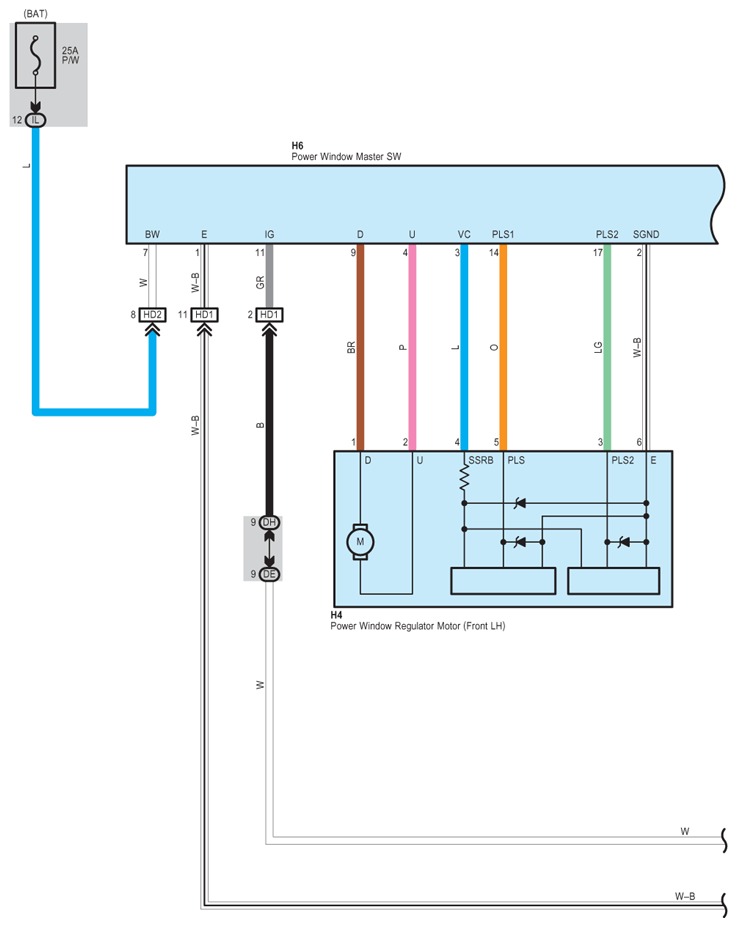

Fig 1: Power Window - Circuit Diagram (1 Of 4)
G07616486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

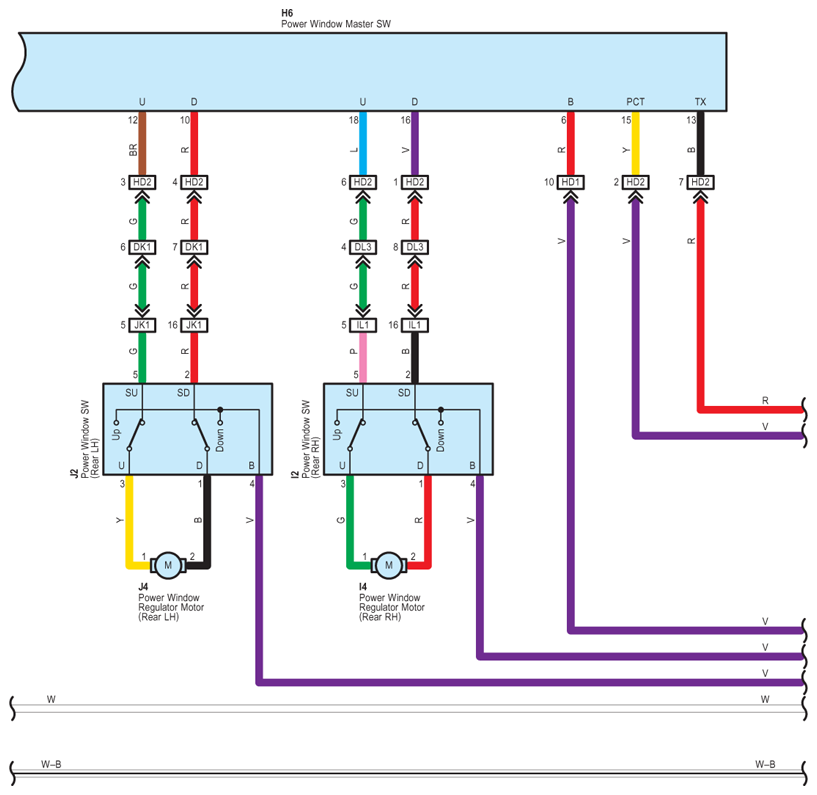

Fig 2: Power Window - Circuit Diagram (2 Of 4)
G07616487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

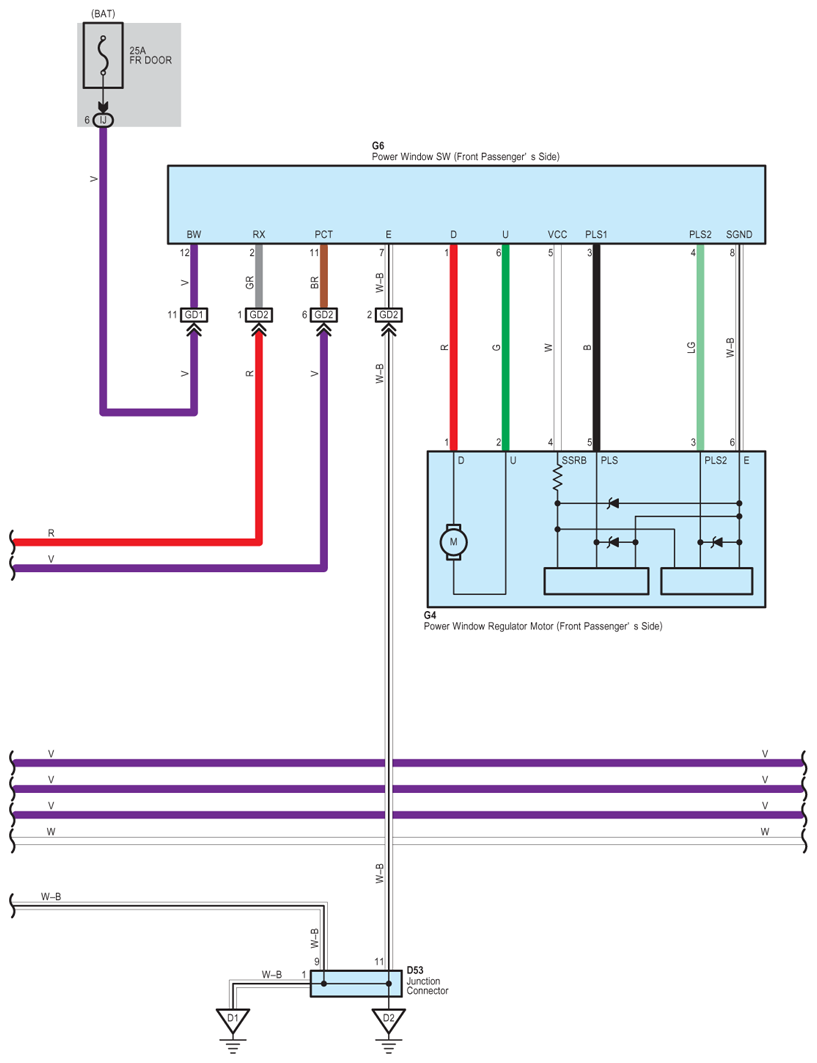

Fig 3: Power Window - Circuit Diagram (3 Of 4)
G07616488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

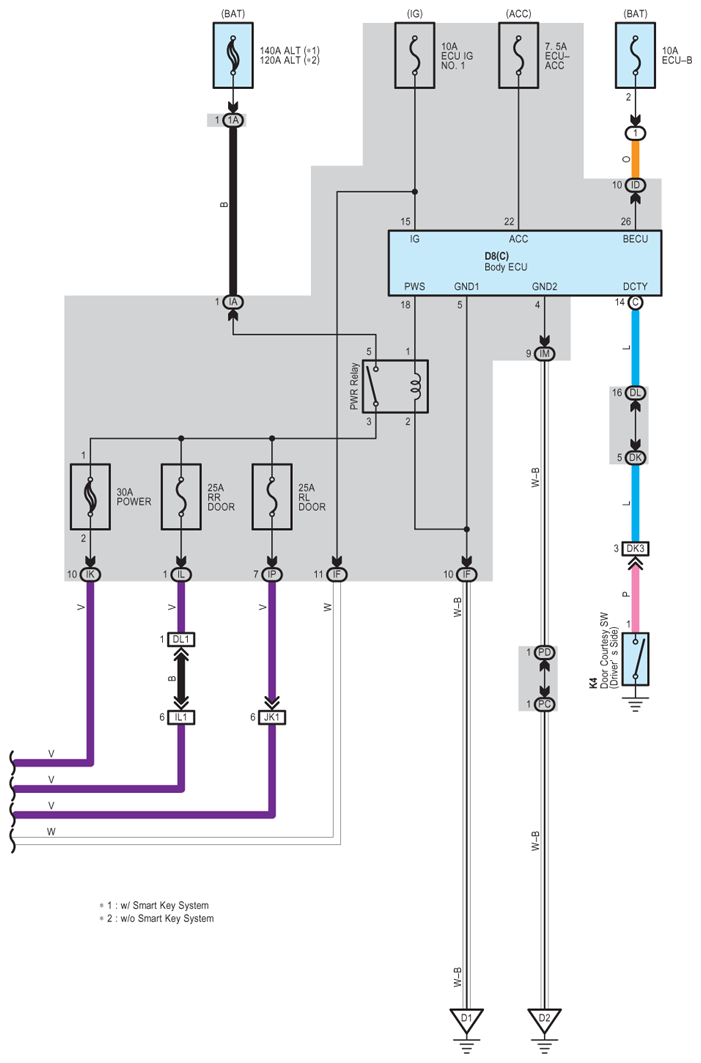

Fig 4: Power Window - Circuit Diagram (4 Of 4)
G07616489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
