Starting System without Smart Key System: Notes

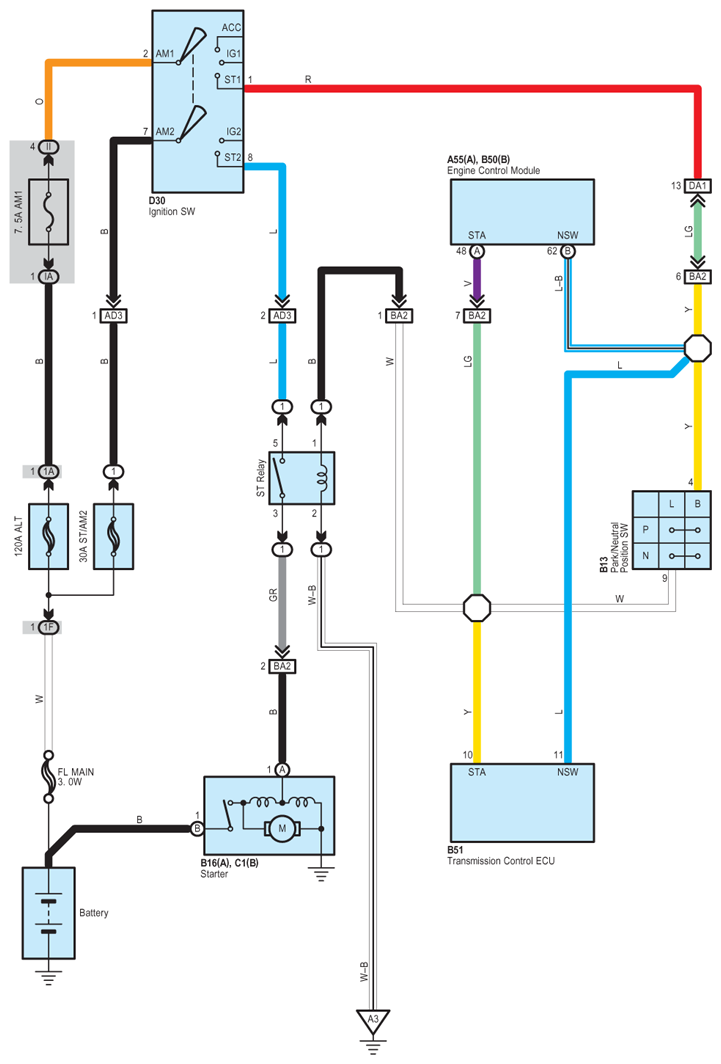

Fig 1: Starting Without Smart Key System - Circuit Diagram

G07616404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
