Rear Strut Rod: Installation

1. Install the rear strut rod (rear side), bolt and nut, and temporarily tighten the bolt.
   NOTE: When temporarily tightening the bolt, keep the nut from rotating.
   Fig 1: Locating Rear Strut Rod

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Support the rear axle carrier.

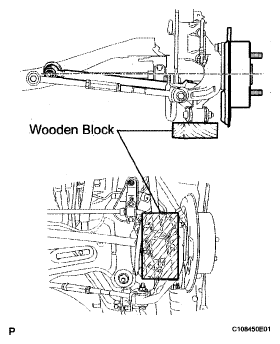

   Fig 2: Supporting Rear Axle Carrier With Wooden Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the rear strut rod (inner side) with the bolt and nut.
   Fig 3: Locating Rear Axle Carrier Strut Rod

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Jack up the rear axle carrier, placing a wooden block to avoid damage. Apply load to the suspension so that the installed bolt of the rear suspension No. 1 arm (inner side of vehicle) is horizontally aligned with the center of the rear axle hub.

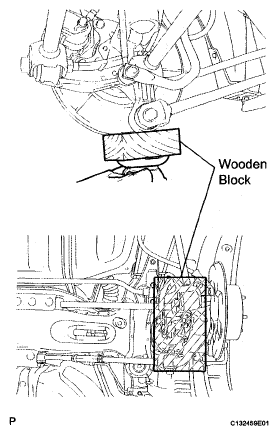

   Fig 4: Placing Wooden Block

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Fully tighten the bolt.

   Torque: 113 N*m (1,152 kgf*cm, 83 ft.*lbf)

   Fig 5: Tightening Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fully tighten the bolt.

   Torque: 113 N*m (1,152 kgf*cm, 83 ft.*lbf)

   Fig 6: Tightening Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the parking brake No. 3 cable assembly with the bolt.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

   Fig 7: Locating Parking Brake No. 3 Cable Assembly With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
