Home >> Toyota >> 2008 >> Corolla CE, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> Deceleration Sensor >> Components

Deceleration Sensor: Components

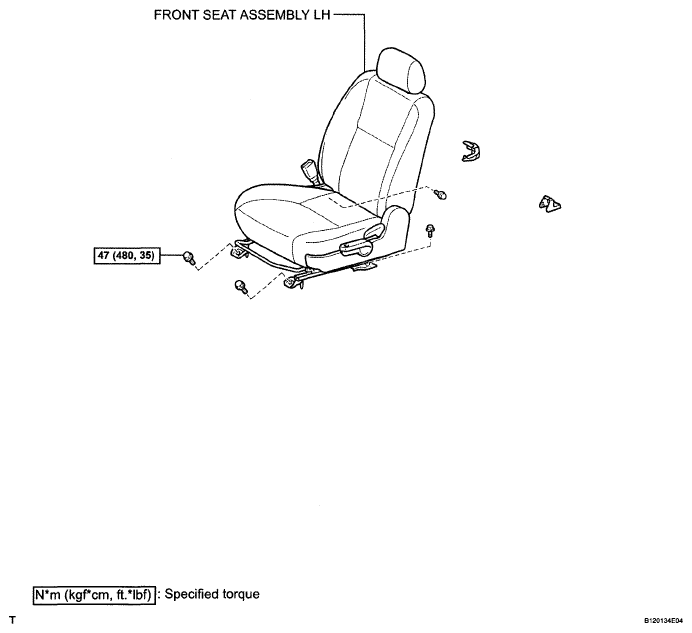

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G05194995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

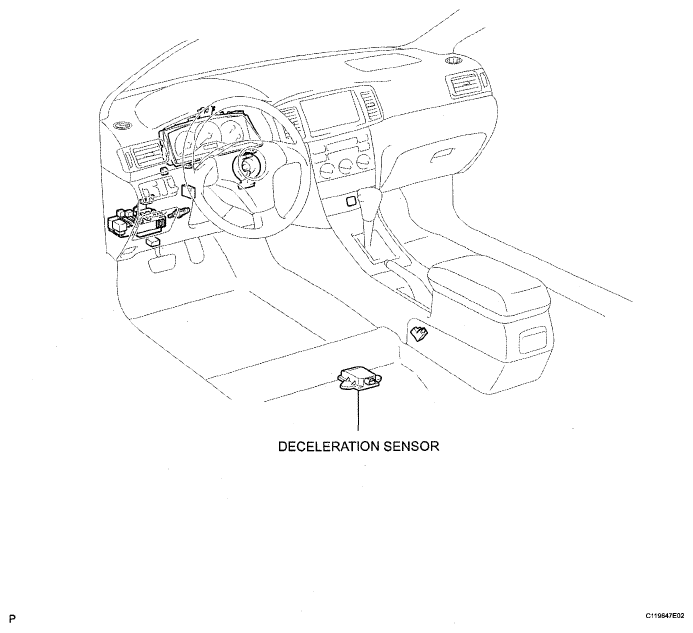

Fig 2: Identifying Deceleration Sensor Replacement Components (2 Of 2)
G05194996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
