Interior Light System: Notes

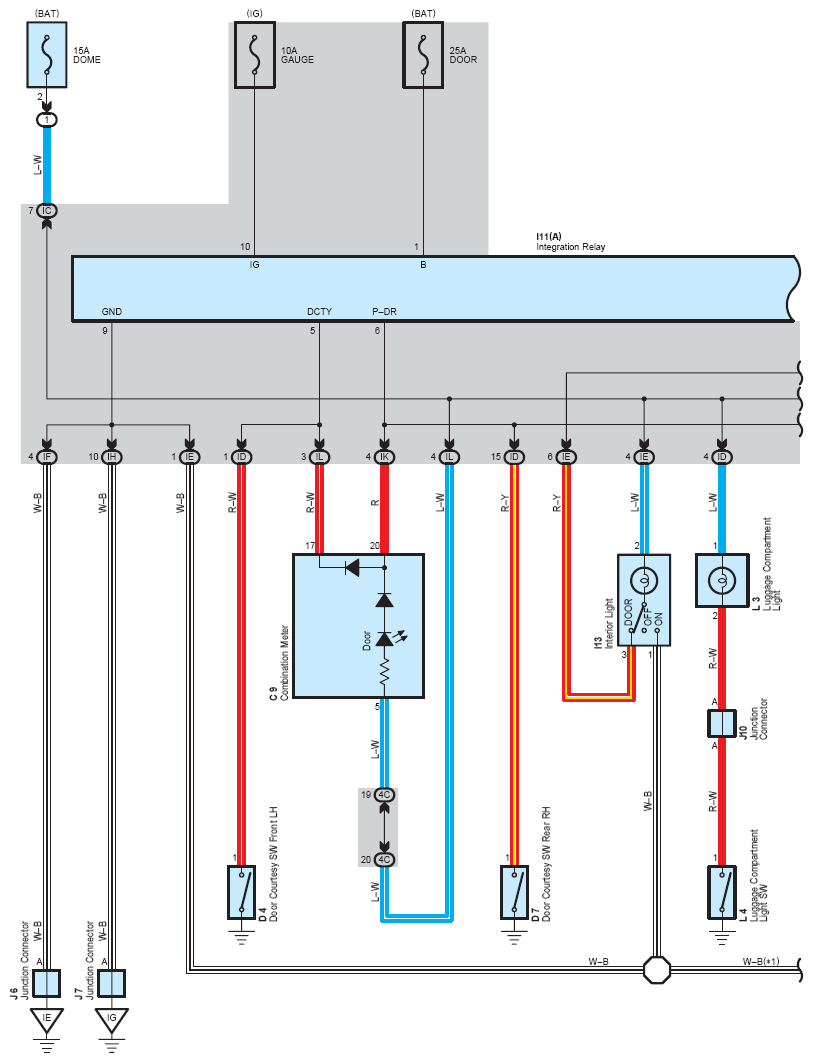

Fig 1: Interior Light - Circuit Diagram (1 Of 2)
G07604069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

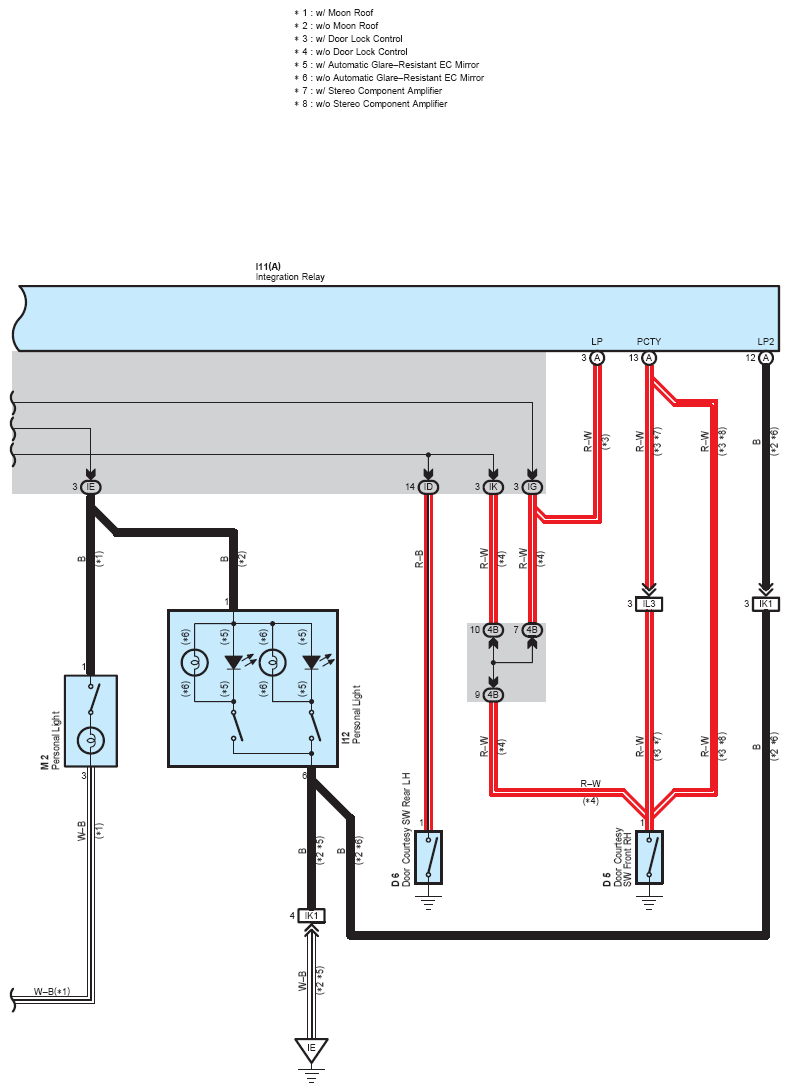

Fig 2: Interior Light - Circuit Diagram (2 Of 2)
G07604070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
