Power Source System: Notes

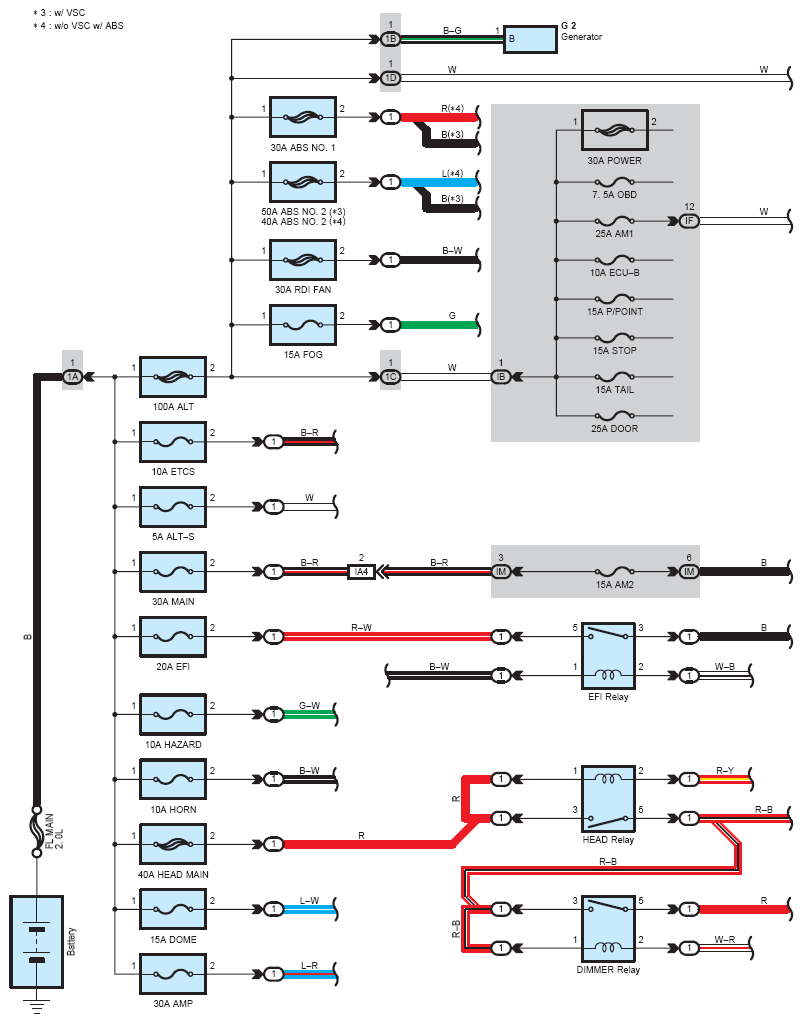

Fig 1: Power Source - Circuit Diagram (1 Of 2)
G07604046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

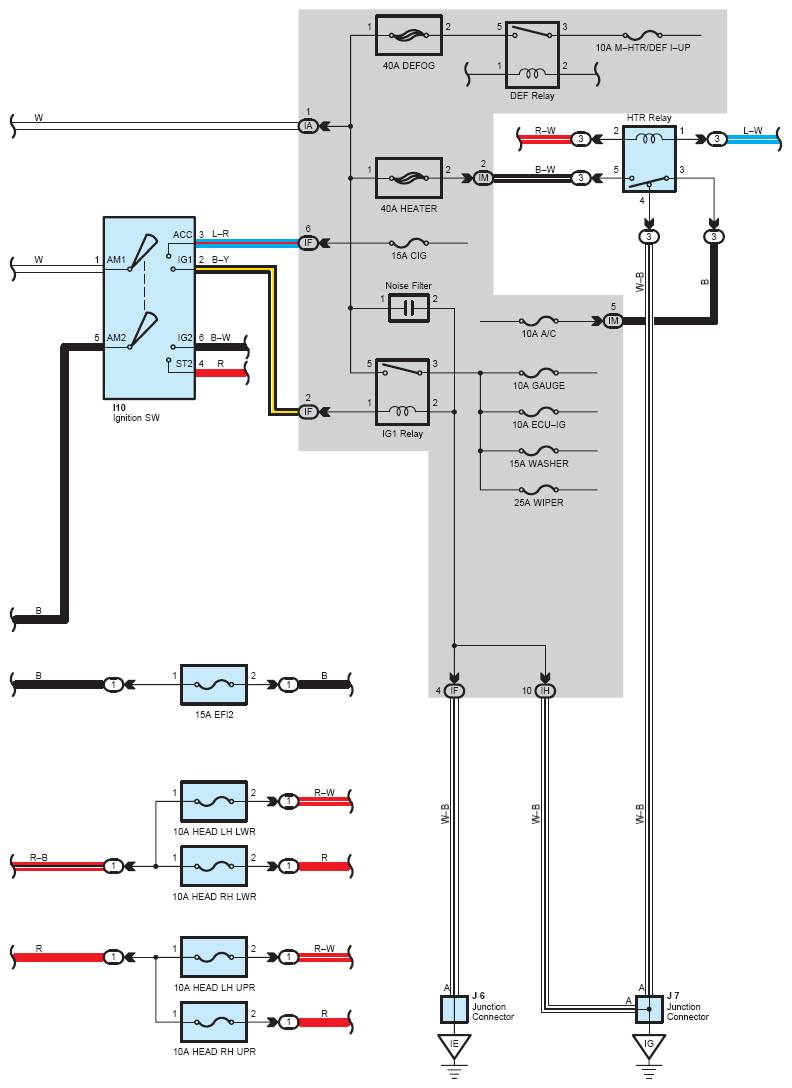

Fig 2: Power Source - Circuit Diagram (2 Of 2)
G07604045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
