Home >> Toyota >> 2008 >> Corolla CE, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control System (1ZZ-FE) >> Throttle Body >> Components

Throttle Body: Components

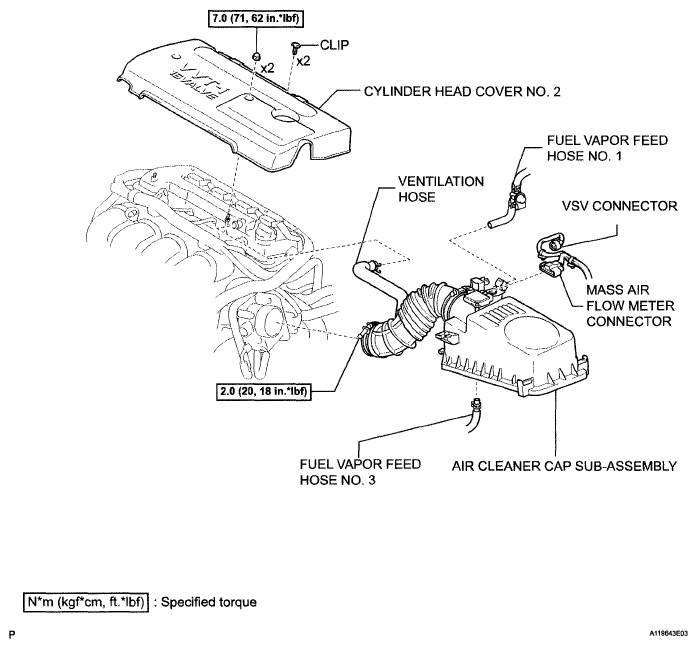

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 2)
G05192701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

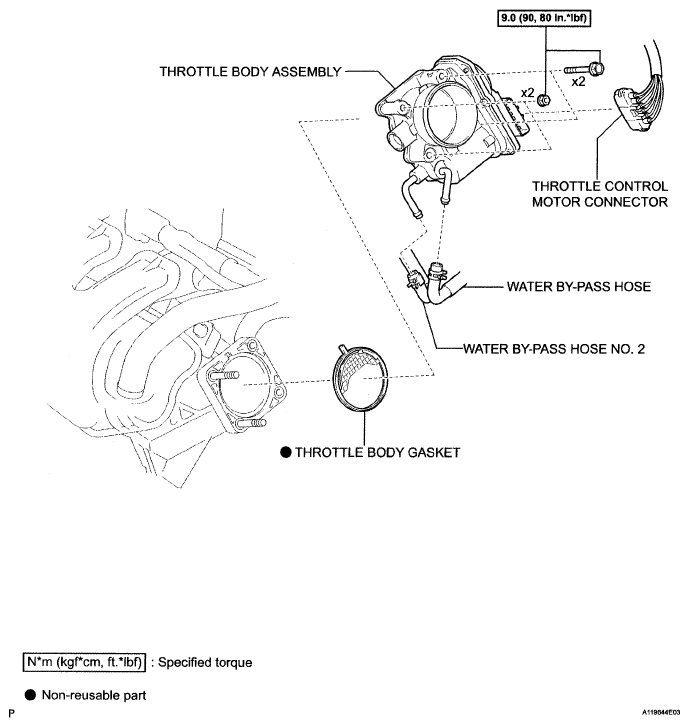

Fig 2: Identifying Throttle Body Replacement Components With Torque Specification (2 Of 2)
G05192702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
