Power Outlets: Clock: Installation

INSTALL CLOCK ASSEMBLY
1. Engage the 2 claws and install the clock assembly.
  HINT:

  Push the clock assembly in the direction shown in the figure below, to install it.

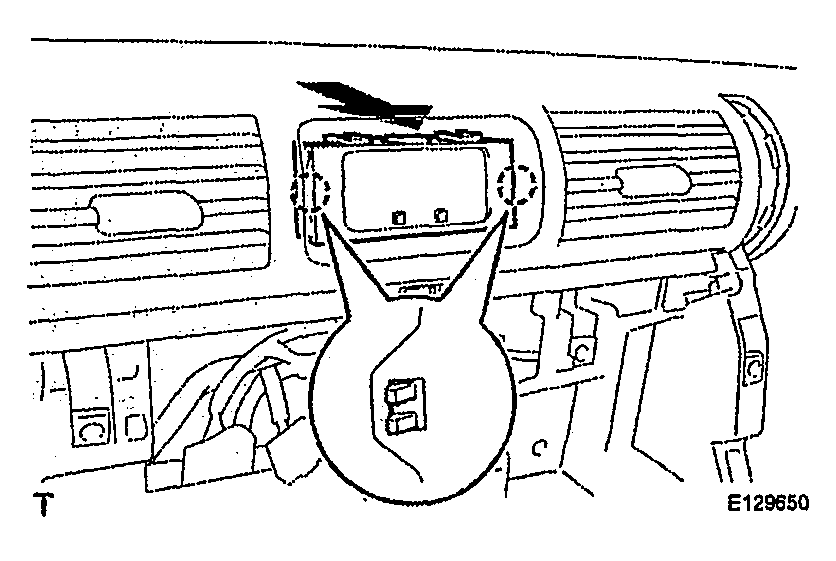

  Fig 1: Identifying Clock Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIO RECEIVER ASSEMBLY (See INSTALLATION )
INSTALL INTEGRATION CONTROL PANEL ASSEMBLY (See INSTALLATION )
INSTALL INSTRUMENT PANEL GARNISH RH (See INSTALLATION )
INSTALL INSTRUMENT PANEL GARNISH LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
