Home >> Toyota >> 2008 >> FJ Cruiser RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System >> VVT Sensor >> Components

VVT Sensor: Components

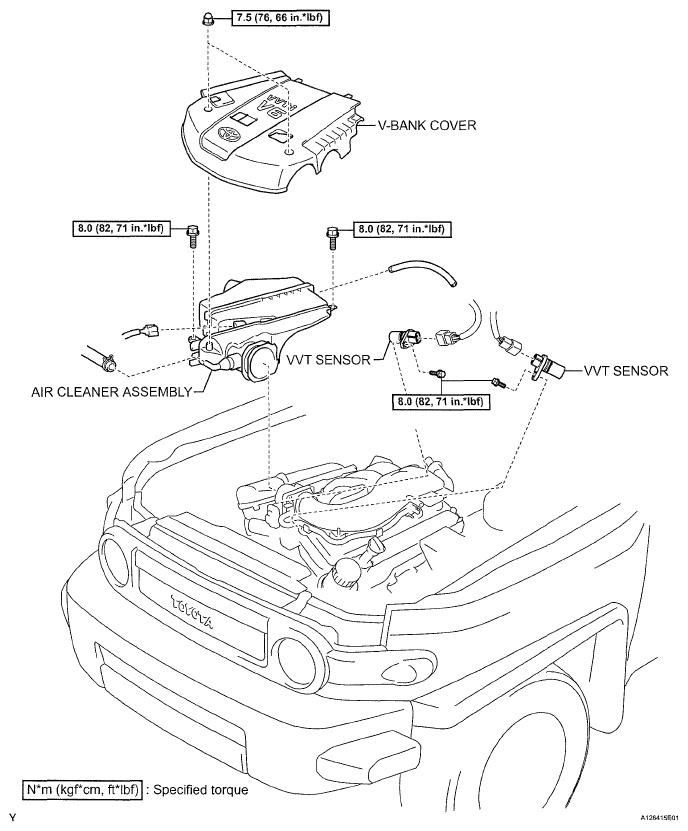

Fig 1: VVT Sensor Replacement Components With Torque Specifications
G05577611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
