Home >> Toyota >> 2008 >> Highlander Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control System (Hybrid) >> Heated Oxygen Sensor >> Components

Heated Oxygen Sensor: Components

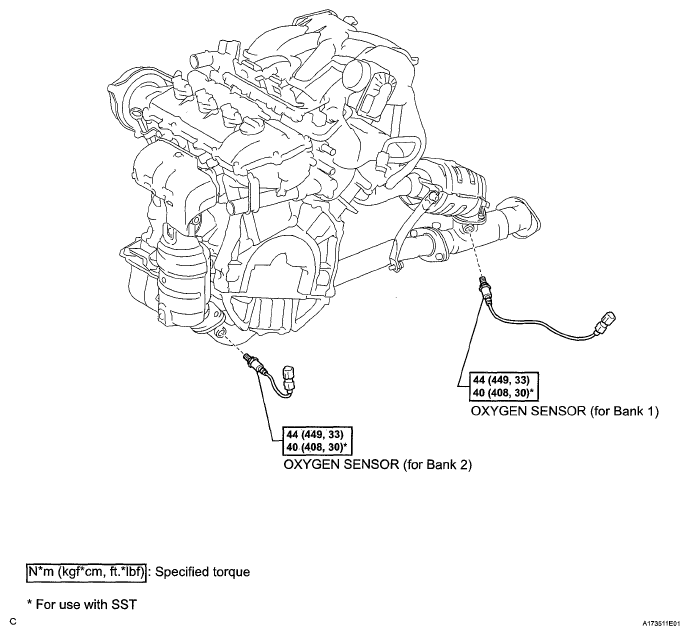

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
G05625772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
