Home >> Toyota >> 2008 >> Highlander Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control System (Hybrid) >> Knock Sensor >> Components

Knock Sensor: Components

Fig 1: Throttle Body Replacement Components Replacement With Torque Specifications (1 Of 3)
G05625714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

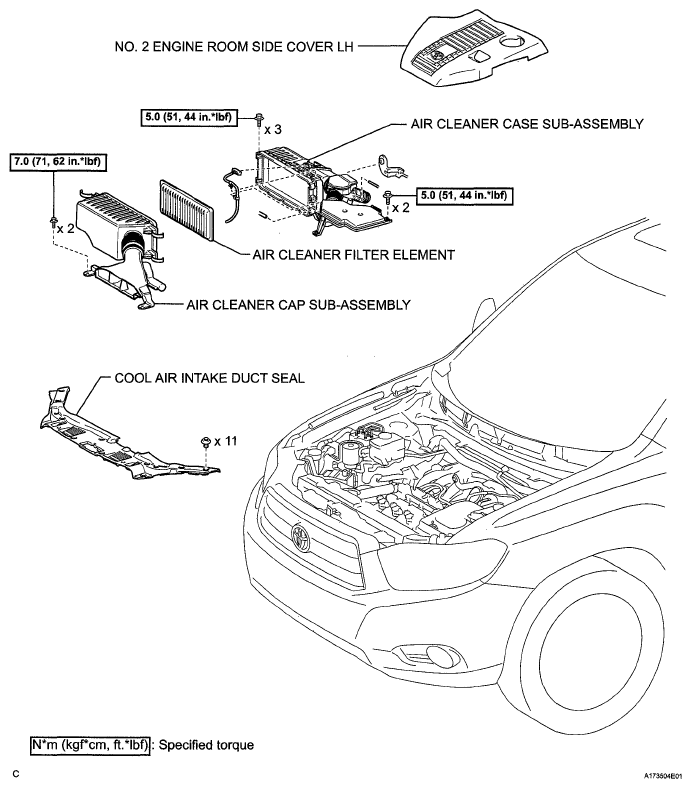

Fig 2: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 5)
G05625747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

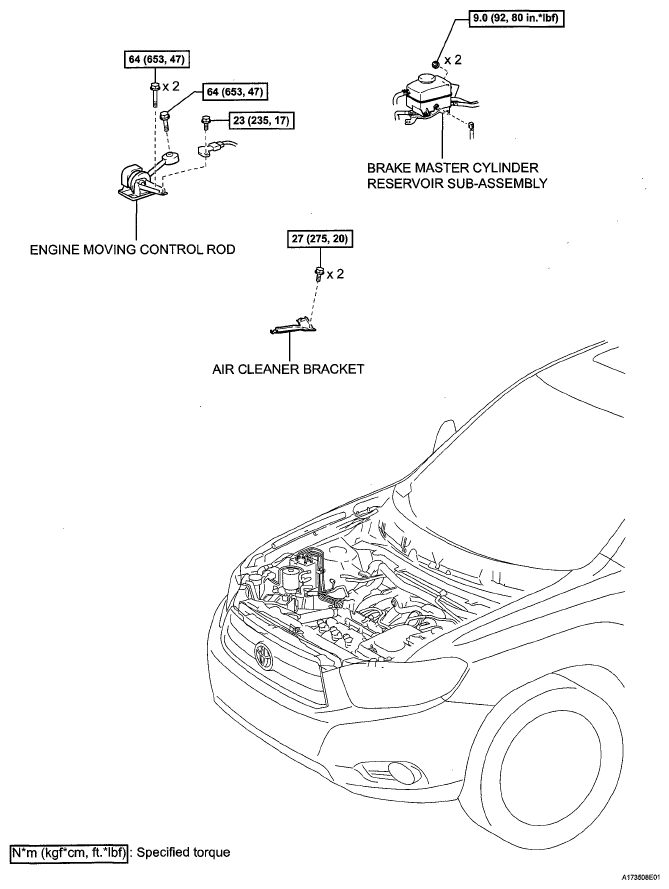

Fig 3: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 5)
G05625748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

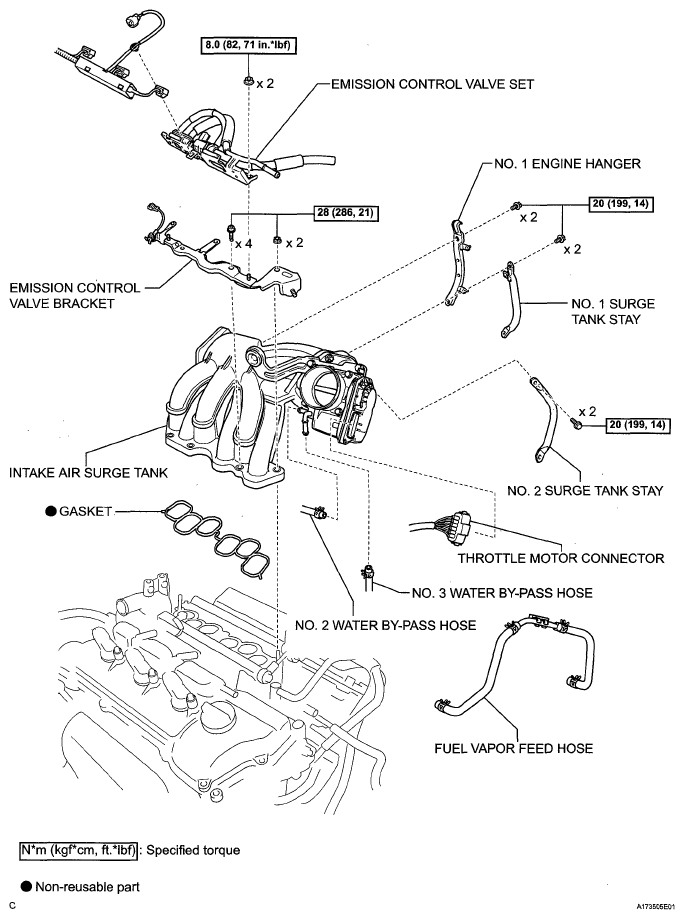

Fig 4: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 5)
G05625749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

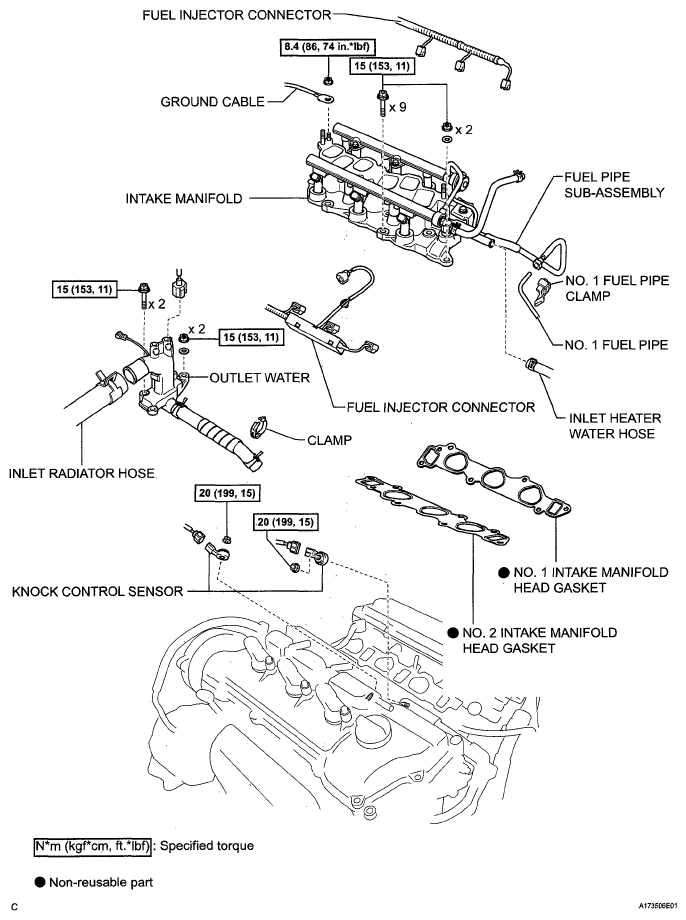

Fig 5: Lnock Sensor Replacement Components With Torque Specifications (5 Of 5)
G05625750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
