EVAP System: Description

While the engine is running, if predetermined conditions (closed loop, etc.) are met, the purge VSV is opened by the ECM (included in the hybrid vehicle control ECU) and stored fuel vapors in the canister are purged to the intake manifold. The ECM will change the duty cycle ratio of the Purge VSV to control purge flow volume.

Purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed to enter the canister through the vent valve to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister.

The ECM monitors the condition of both the key-off monitor and purge flow monitor to ensure proper operation of the EVAP system.

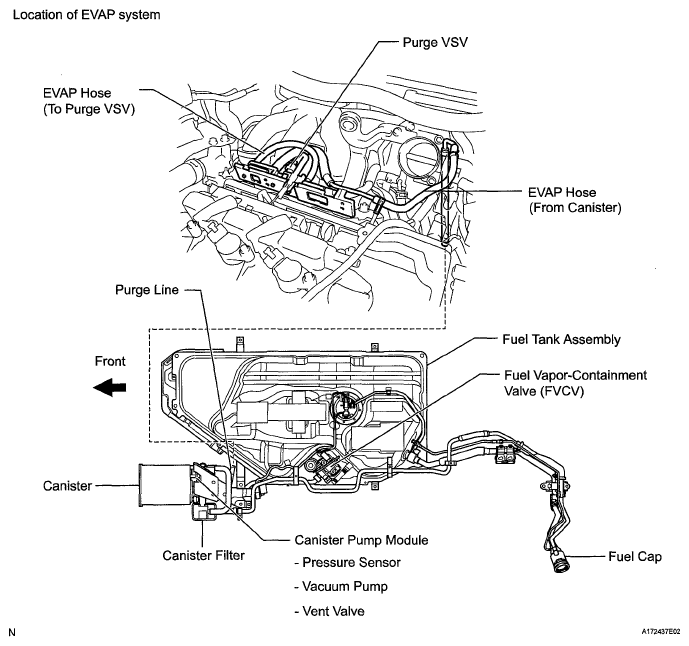

Fig 1: Identifying EVAP System Components (1 Of 2)
G05625621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

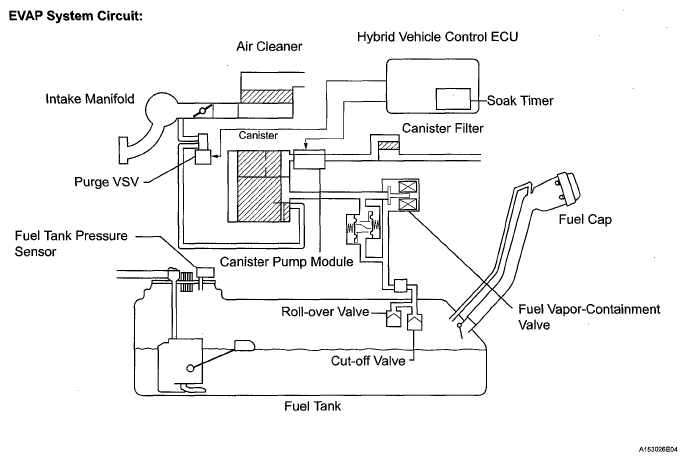

Fig 2: Identifying EVAP System Components (2 Of 2)
G05625622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMPONENTS OPERATION CHART

Components Operation
Canister Contains activated charcoal to absorb fuel vapors that are created in fuel tank.
Cut-off valve Located in the fuel tank. Valve closes by its own weight when vehicle is overturned to prevent fuel from spilling out.
Purge VSV Opens or closes line between canister and intake manifold. ECM (included in the hybrid vehicle control ECU) opens and closes purge VSV to control EVAP purge flow. ECM opens purge valve to purge the fuel vapors that were absorbed by canister to intake manifold. ECM controls EVAP volume purged to intake manifold by duty cycle (current-carrying time) to purge valve. (ON: Open, OFF: Closed)
Roll-over valve Located in fuel tank. Valve floats and closes when fuel tank is filled to 100%. Also, valve closes by its own weight when vehicle is overturned to prevent fuel from spilling out.

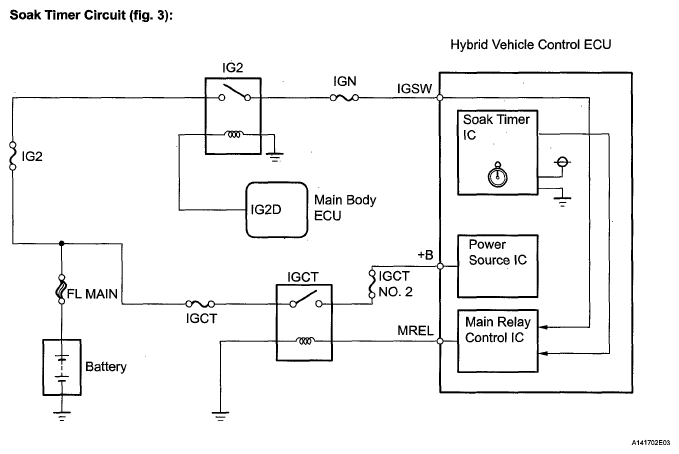

Soak timer Built into ECM (included in the hybrid vehicle control ECU). To ensure that EVAP monitor values will be accurate, soak timer counts 5 hours (-15 minutes) from when power switch is turned off. This will allow fuel to cool down, which will stabilize Fuel Tank Pressure (FTP). When approximately 5 hours have passed, ECM turns ON (refer to Fig 5).
Fuel vapor-containment valve Opens and closes line between fuel tank and canister. When vehicle is stopped, this valve stays closed to keep fuel vapors in the tank and prevent them from being absorbed by canister. During refueling, valve opens to allow fuel vapors from tank to be absorbed by canister. When the vehicle is being driven, the valve maintains a slight positive pressure in the fuel tank.
Fuel tank pressure sensor Converts pressure in fuel tank into voltage reading for use by ECM (included in the hybrid vehicle control ECU). ECU supplies 5 V to sensor, and uses voltage reading that is output as feedback to allow monitoring of fuel tank pressure (refer to Fig 5).
Canister pump module The following 5 items labeled (a) to (e) are canister pump module components. Canister pump module cannot be disassembled.
(a) Vent valve Can either close vent for canister, or open vent to atmosphere. When ECM (included in hybrid vehicle control ECU) turns valve on, canister vent is closed. Alternately, when ECM turns valve off, canister vent is opened to atmosphere. To check for leaks in EVAP system, purge VSV is left closed, vent valve is turned on (canister vent is closed), and vacuum pump is operated to create a vacuum (negative pressure) is system (refer to Fig 3).
(b) Canister pressure sensor ECM (included in hybrid vehicle control ECU) applies 5 V to pressure sensor, allowing it to create voltage reading that is used by ECM to detect pressure in canister (refer to Fig 4).
(c) Check valve Composed of nylon ball and spring. Valve blocks off atmosphere from outlet of vacuum pump.
(d) Leak detection pump Used to create negative pressure in EVAP system to allow checking for leaks.
(e) Reference orifice The diameter of reference orifice is 0.02 inches. Vacuum (negative pressure) is created, and pressure is measured with purge VSV closed (off) and vent valve off (in vent position). This reference pressure is used to set a baseline (criterion pressure) against which a small leak can be judged.

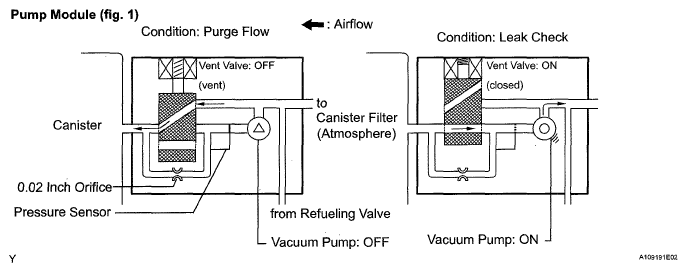

Fig 3: EVAP System Purge Flow Chart
G05625623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Canister Pressure Sensor Output Voltage Graph
G04828295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Canister Pressure Sensor Circuit Diagram
G05625625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Fuel Tank Pressure Sensor Output Voltage Graph
G05200164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Key-off monitor

This monitoring system checks for canister pump module malfunctions and leaks from the EVAP and closed tank systems. Be sure to leave the vehicle for at least 5 hours to sufficiently cool the fuel and stabilize fuel tank pressure. This makes EVAP system monitoring more accurate.

HINT:

If the engine coolant temperature is 35°C or more, 5 hours after the power switch has been turned off, the ECM (included in the hybrid vehicle control ECU) will begin performing a monitor check after another 2 hours. If the engine coolant temperature is still 35°C or more, 7 hours after the power switch has been turned off, the ECM will begin performing a monitor check after another 2.5 hours.

There are two methods for monitoring the EVAP system.

  1. If the fuel tank pressure is higher or lower than the atmospheric pressure, the system determines that there are no leaks in the closed tank system and the system will check for leaks from the piping and canister between the purge VSV and canister pump module. (Method A)
  2. If the fuel tank pressure is almost the same as the atmospheric pressure, vacuum will be allowed to enter the fuel tank and the system will check for leaks from the fuel tank after checking for leaks from the canister. (Method B)

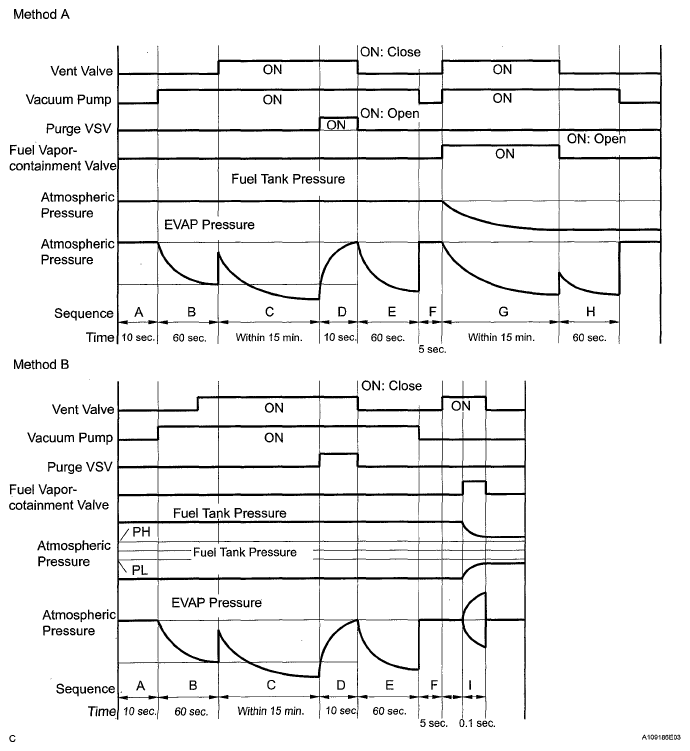

Fig 7: EVAP System Malfunction Chart
G05625627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PRESSURE MEASUREMENT CHART

Sequence Operation Description Duration
- ECM (Included in hybrid vehicle control ECU) activation Activated by soak timer, 5 hours (7 or 9.5 hours) after power switch turned off. -
A Atmospheric pressure measurement Vent valve turned OFF (vent) and EVAP system pressure is measured by ECM (included in the hybrid vehicle control ECU) in order to register atmospheric pressure. If pressure in EVAP system is not between 70 kPa and 110 kPa (525 mmHg and 825 mmHg), ECM (included in hybrid vehicle control ECU) cancels EVAP system monitor. 10 seconds
B First 0.02 inch leak pressure measurement In order to determine 0.02 inch leak pressure standard, vacuum pump creates negative pressure (vacuum) through 0.02 inch orifice and then ECM (included in the hybrid vehicle control ECU) checks if vacuum pump and vent valve operate normally. 60 seconds
C EVAP system pressure measurement Vent valve is turned ON (closed) to shut EVAP system. Negative pressure (vacuum) is created in EVAP system, and EVAP system pressure is then measured. Write down measured values as they will be used in leak check. If EVAP pressure does not stabilize within 15 minutes, ECM (included in hybrid vehicle control ECU) cancels EVAP system monitor. 15 minutes
D Purge VSV monitor Purge VSV opens and then EVAP system pressure is measured by ECM (included in hybrid vehicle control ECU). Large increase indicates normal. 10 seconds
E Second 0.02 inch leak pressure measurement After second 0.02 inch leak pressure measurement, leak check is performed by comparing first and second 0.02 inch leak pressure standards. If stabilized system pressure is higher than second 0.02 inch leak pressure standard, ECM (included in the hybrid vehicle control ECU) determines that EVAP system has a leak. 60 seconds
F Resetting Fuel tank pressure is compared with atmospheric pressure. If tank pressure is higher than PH or lower than PL, ECM (Included in hybrid vehicle control ECU) determines that EVAP system is normal and runs sequence I in method B. If tank pressure is around atmospheric pressure, ECM performs sequence G in method A. 5 seconds
G Fuel tank pressure measurement Vent valve is turned ON (closed). Fuel vapor-containment valve opens to allow negative pressure to enter the fuel tank and fuel tank pressure is measured. Write down measured values because they will be used in leak check. If fuel tank pressure does not stabilize within 15 minutes, ECM (included in the hybrid vehicle control ECU) stops monitoring. 15 seconds*
H Third 0.02 inch leak pressure measurement After 3rd 0.02 inch leak pressure measurement, leak check of fuel tank is performed. If recorded fuel tank pressure is higher than 3rd 0.02 inch leak pressure, ECM (included in the hybrid vehicle control ECU) determines that EVAP system has a leakage. 60 seconds
I Fuel vapor-containment valve close stuck check Fuel vapor-containment valve is opened for a certain period of time to check whether the valve is stuck closed. 0.1 second
J Final check Atmospheric pressure is measured and then monitoring result is recorded by ECM (included in the hybrid vehicle control ECU). -
HINT:
*: If there is only a small amount of fuel in the fuel tank, stabilizing the EVAP pressure takes longer than usual.

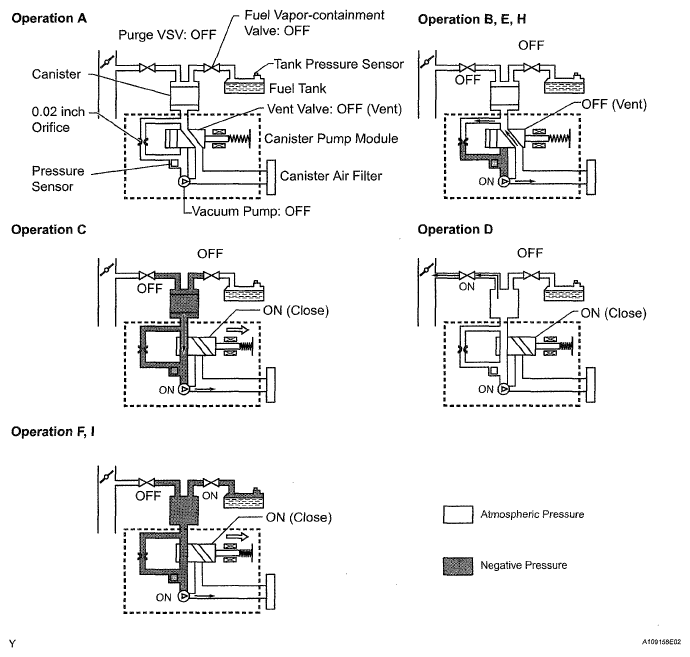

Fig 8: EVAP System Operation Chart
G05625628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Purge flow monitor

If EVAP system pressure change is less than 7.5 mmHg (1 kPa) when the engine is running and the purge VSV is turned ON (closed), the ECM (included in the hybrid vehicle control ECU) determines that the purge flow is insufficient.

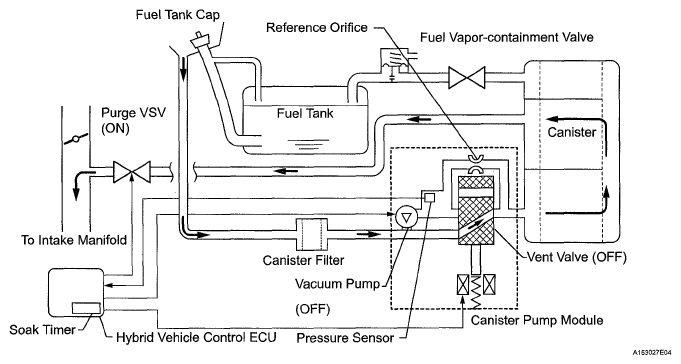

Fig 9: EVAP System Diagram
G05625629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
