Throttle Body: Components

Fig 1: Throttle Body Replacement Components Replacement With Torque Specifications (1 Of 3)
G05625714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Throttle Body Replacement Components Replacement With Torque Specifications (2 Of 3)
G05640149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

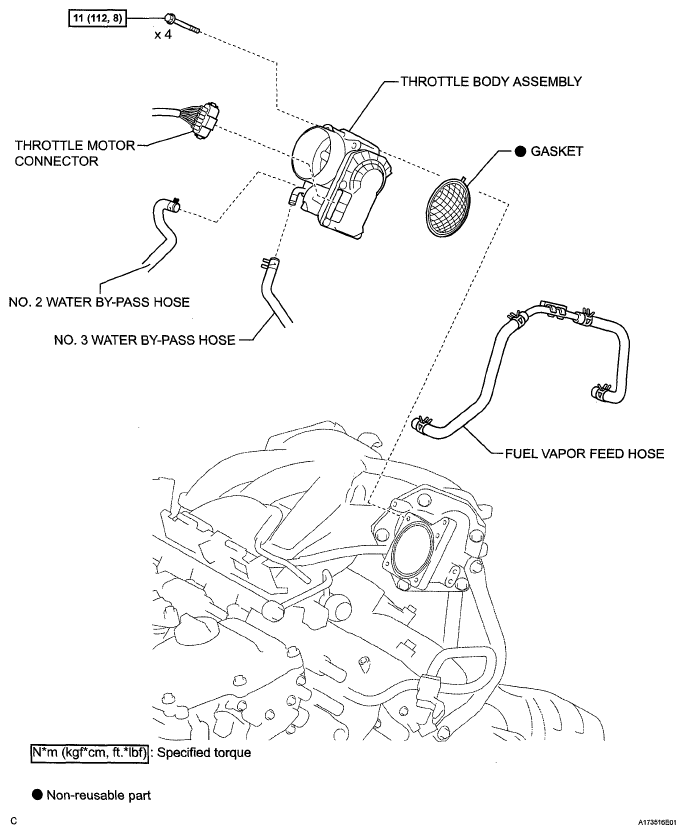

Fig 3: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
G05625716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
