Back Window Glass: Components

Fig 1: Identifying Back Window Glass Replacement Components (1 Of 2)
G05636406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

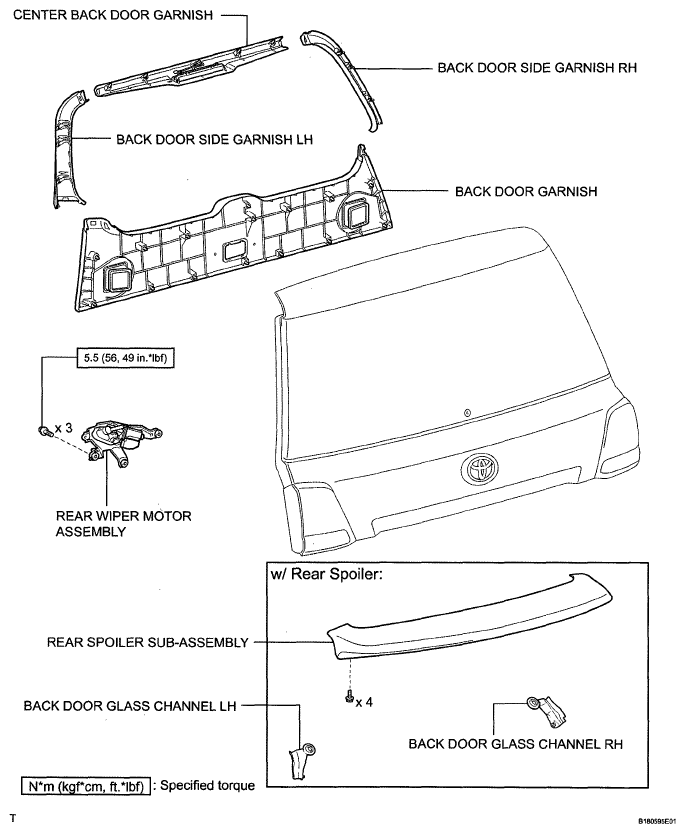

Fig 2: Identifying Back Window Glass Replacement Components (2 Of 2)
G05636407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
