Power Window Control System
>>
Parts Location
Parts Location

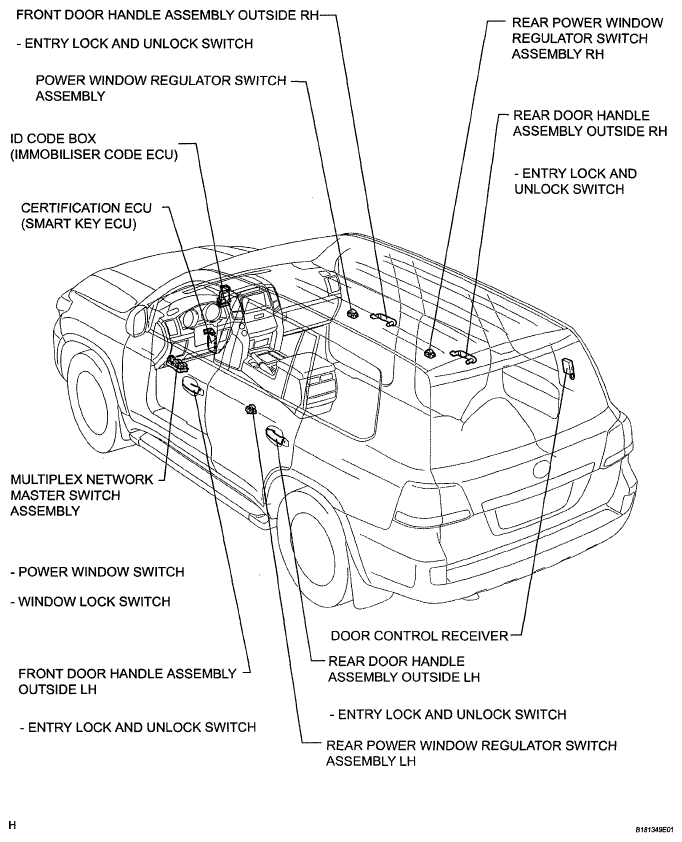

Fig 1: Identifying Power Window Control System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

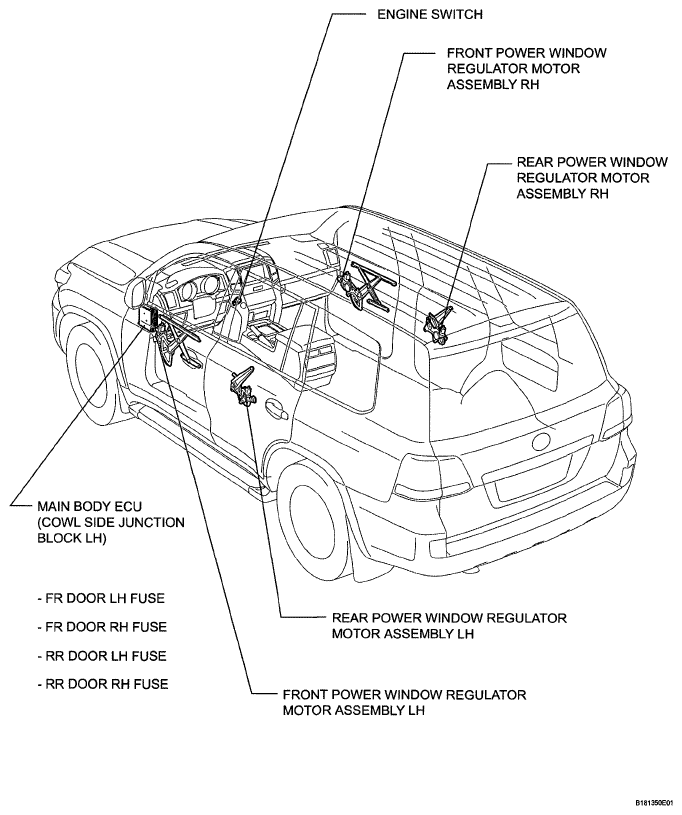

Fig 2: Identifying Power Window Parts Control System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
