Rear Window Defogger System does not Operate
>>
Wiring Diagram

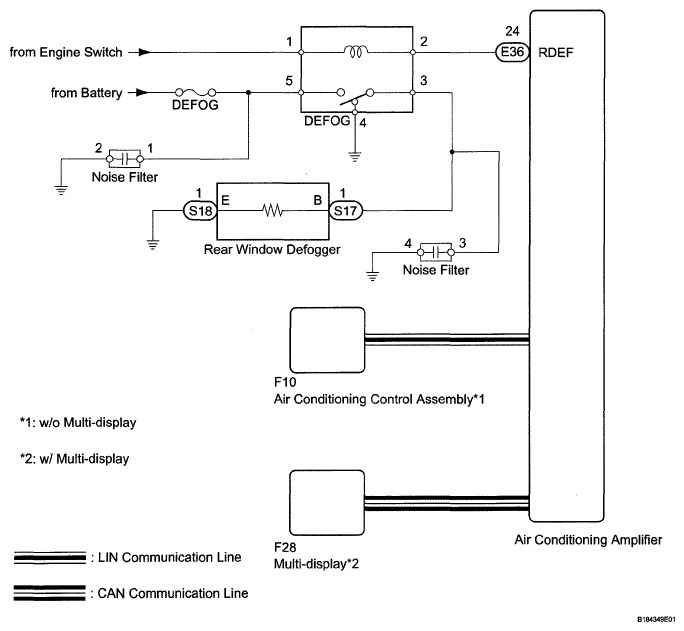

Rear Window Defogger System does not Operate: Wiring Diagram
Fig 1: Engine Switch Communication Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
