Home >> Toyota >> 2008 >> Land Cruiser >> Repair and Diagnosis >> Body & Frame >> Windows >> Window/Glass >> Windshield Glass >> Components

Windshield Glass: Components

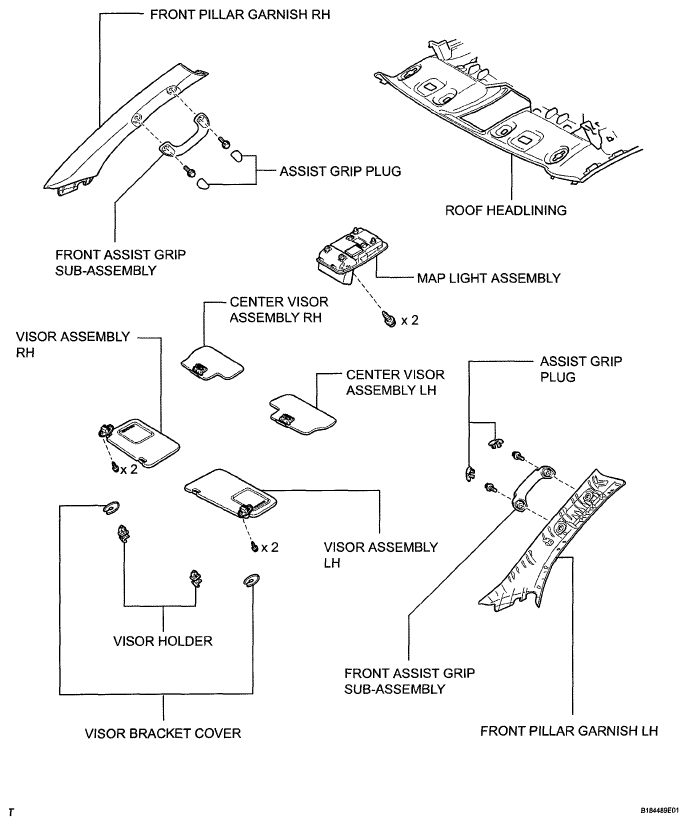

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 4)
G05636374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

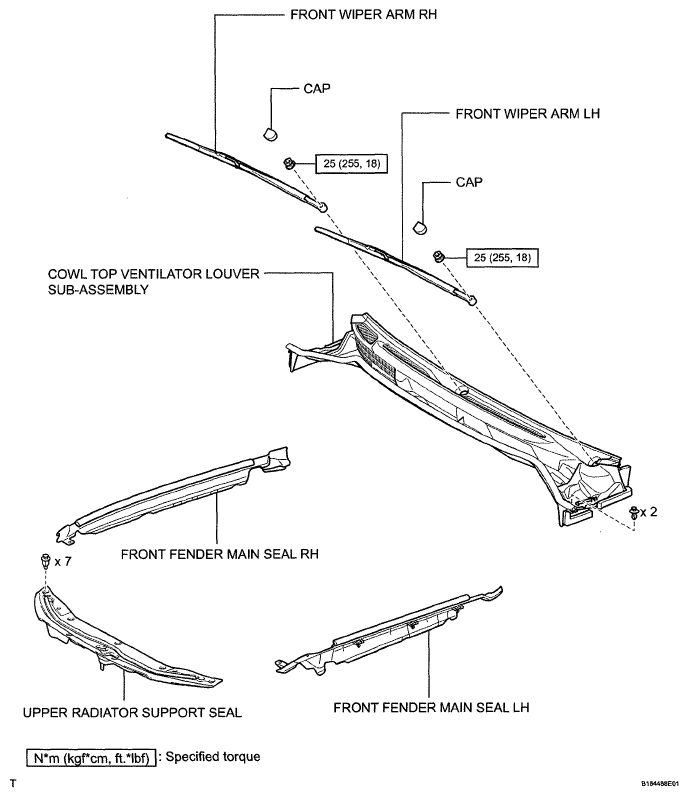

Fig 2: Identifying Windshield Glass Replacement Components (2 Of 4)
G05636375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

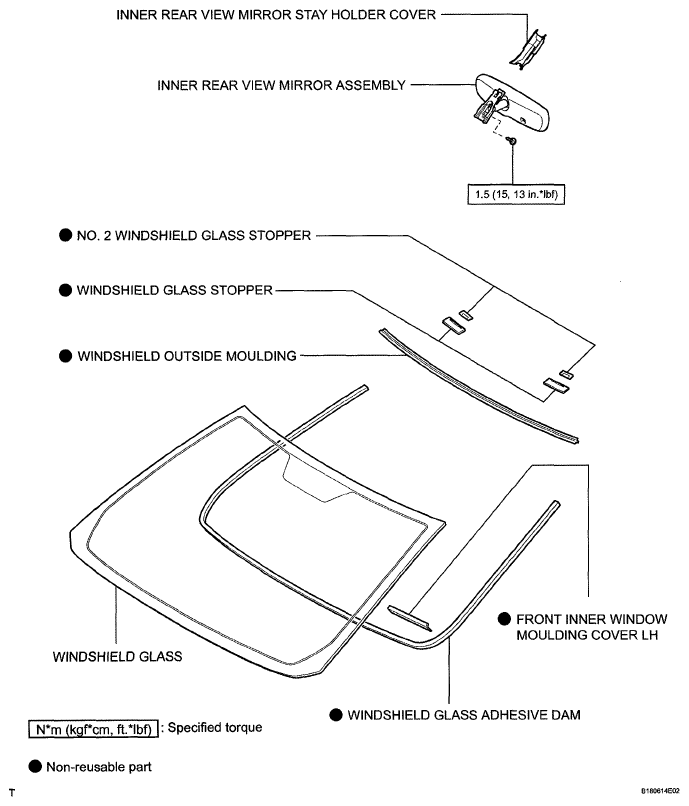

Fig 3: Identifying Windshield Glass Replacement Components (3 Of 4)
G05636376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Windshield Glass Replacement Components (4 Of 4)
G05636377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
