Charging System: Notes

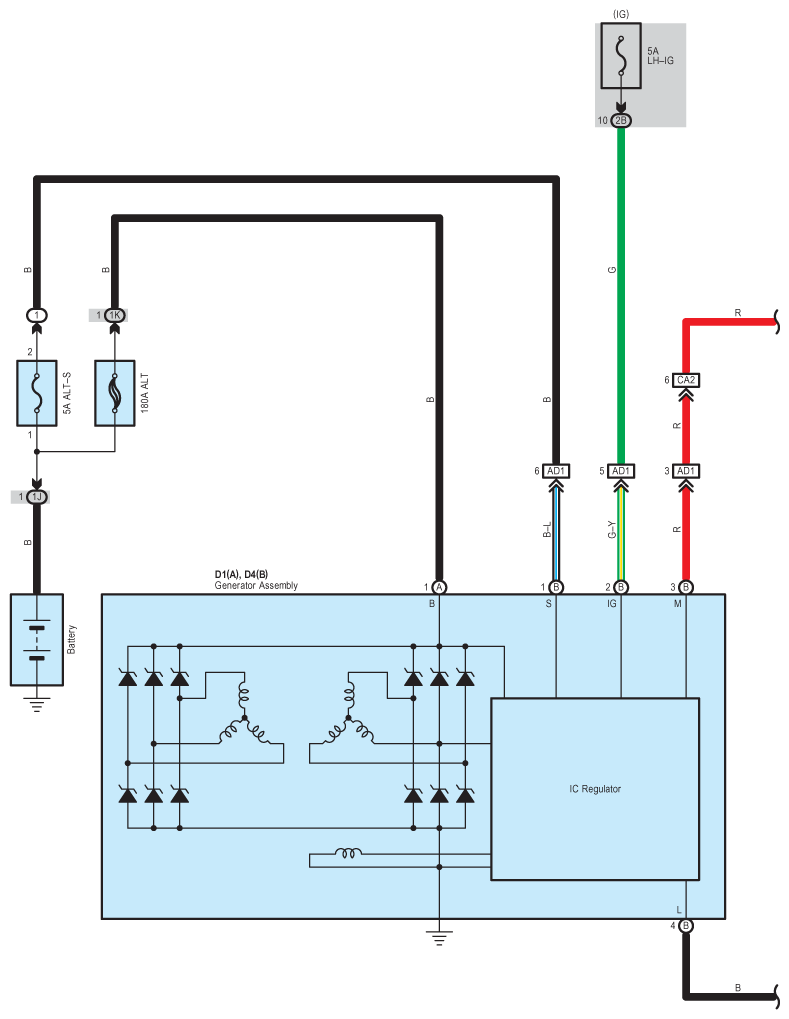

Fig 1: Charging - Circuit Diagram (1 Of 2)
G07600132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

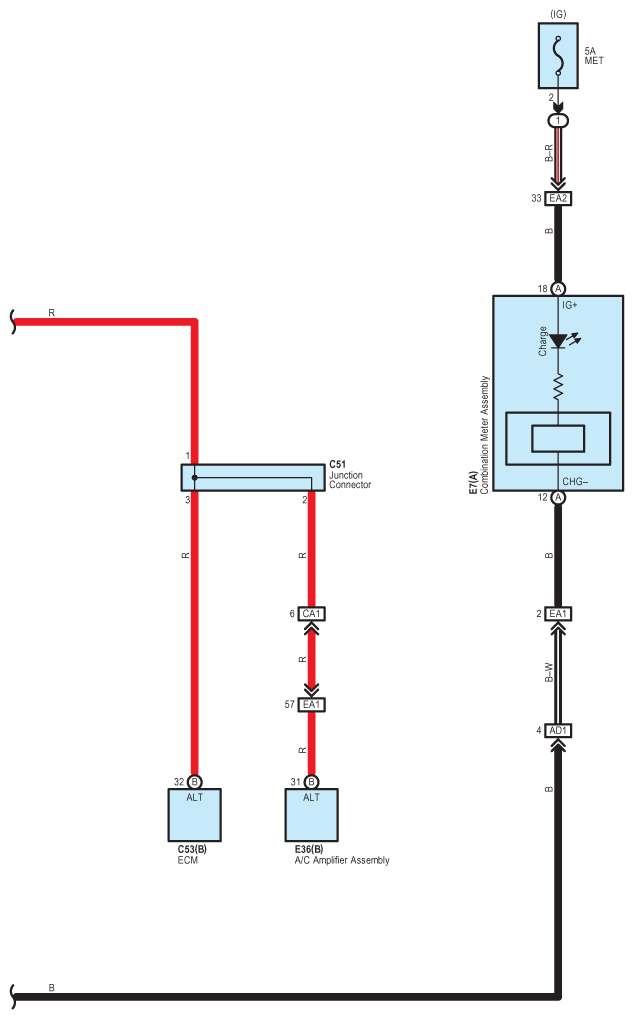

Fig 2: Charging - Circuit Diagram (2 Of 2)
G07600133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
