Home >> Toyota >> 2008 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Clock without Multi-Display >> Notes

Clock without Multi-Display: Notes

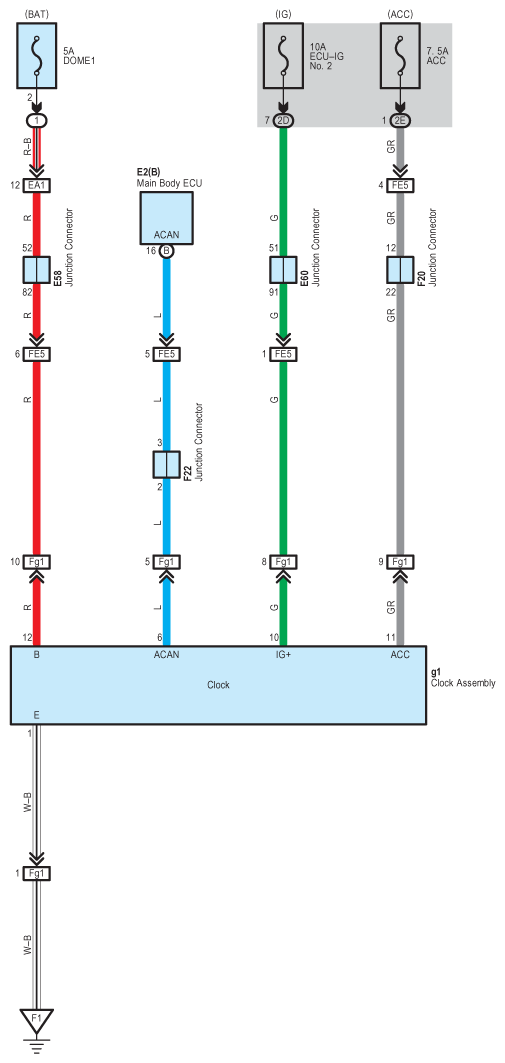

Fig 1: Clock Without Multi-Display - Circuit Diagram

G07600301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
