Data Link Connector 3: Notes

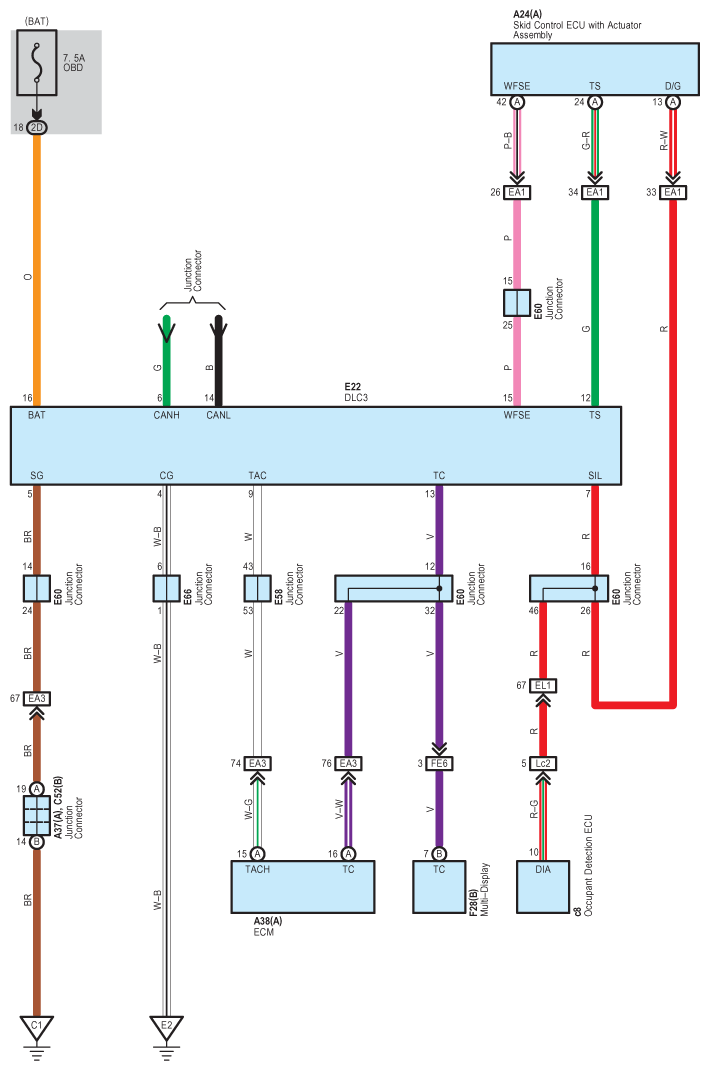

Fig 1: Data Link Connector 3 - Circuit Diagram

G07600155

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
