Home >> Toyota >> 2008 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Electric Tension Reducer System >> Notes

Electric Tension Reducer System: Notes

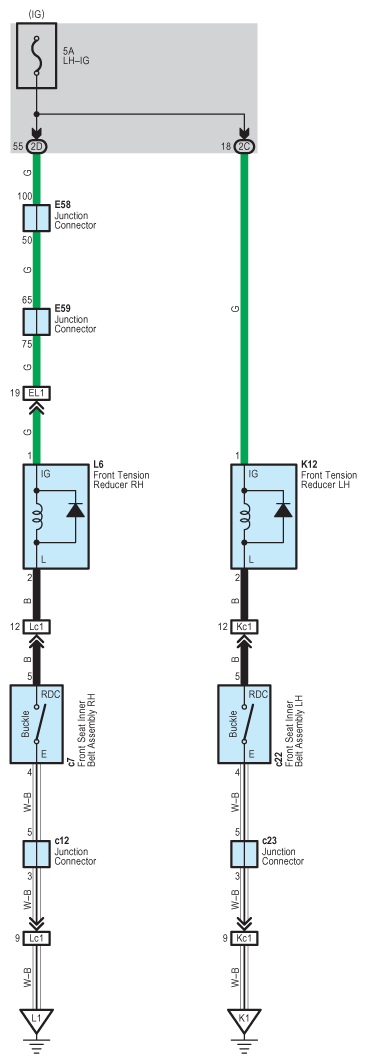

Fig 1: Electric Tension Reducer - Circuit Diagram
G07600251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
