Front Window Deicer System: Notes

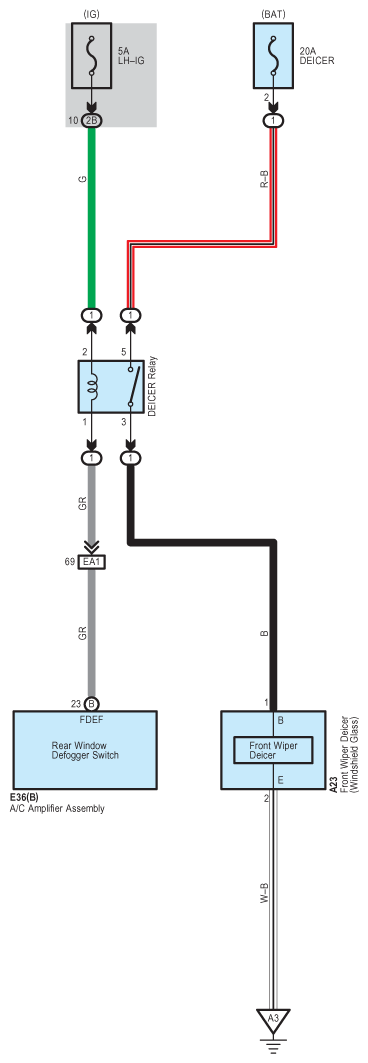

Fig 1: Front Window Deicer - Circuit Diagram
G07600290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
