Multiplex Communication System - AVC-LAN
>>
Notes
Multiplex Communication System - AVC-LAN: Notes

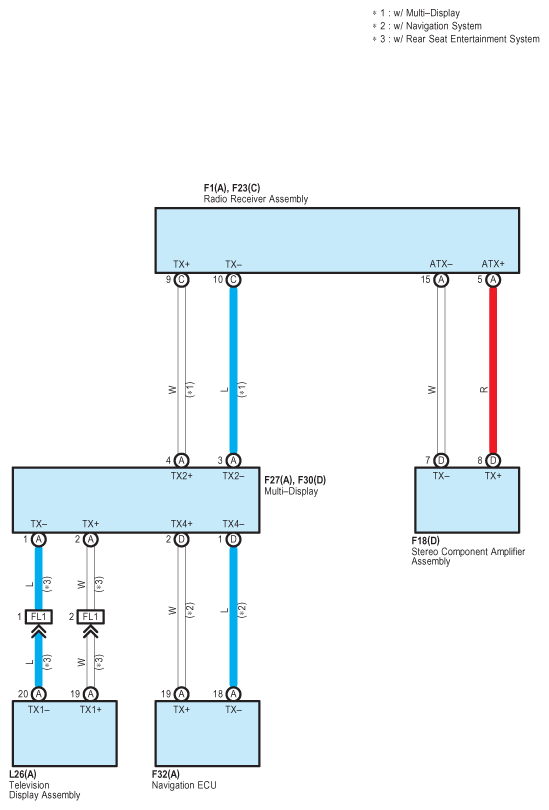

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
