Power Outlet Socket
>>
Components
Power Outlet Socket: Components

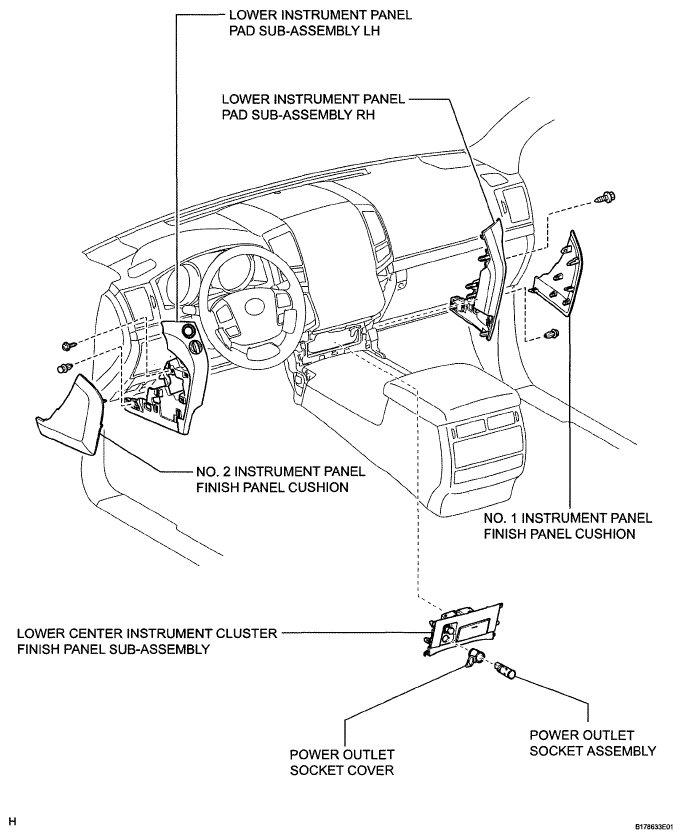

Fig 1: Identifying Power Outlet Socket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
