Home >> Toyota >> 2008 >> Land Cruiser >> Repair and Diagnosis >> Electrical >> Body Electrical >> Power Outlets (Int) >> Rear Power Outlet Socket >> Components

Rear Power Outlet Socket: Components

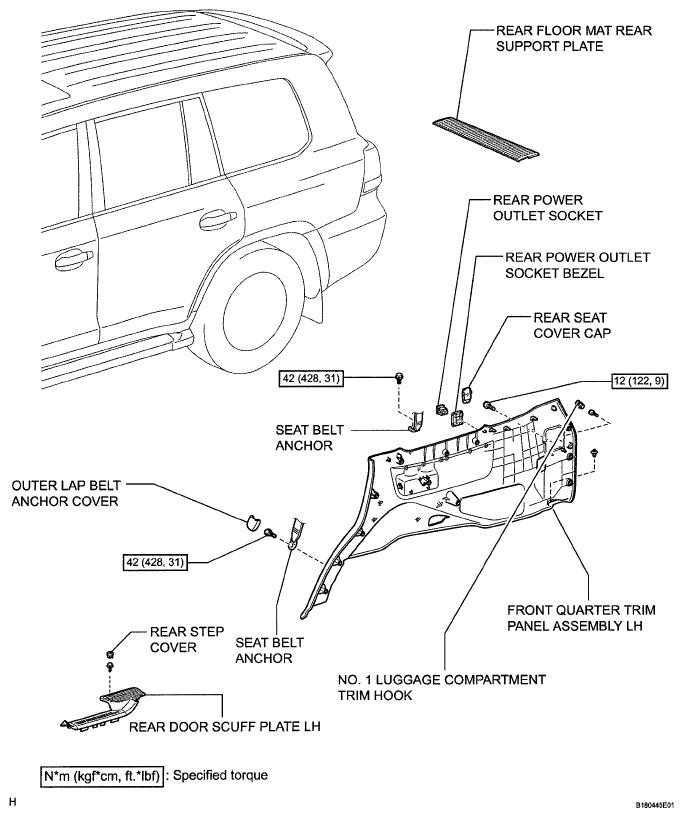

Fig 1: Rear Power Outlet Socket Replacement Components With Torque Specifications

G05635860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
