Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00458500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash Panel

G00458501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Body Overview

G00458502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Front Seats

G00458503

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Body Overview

G00458504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

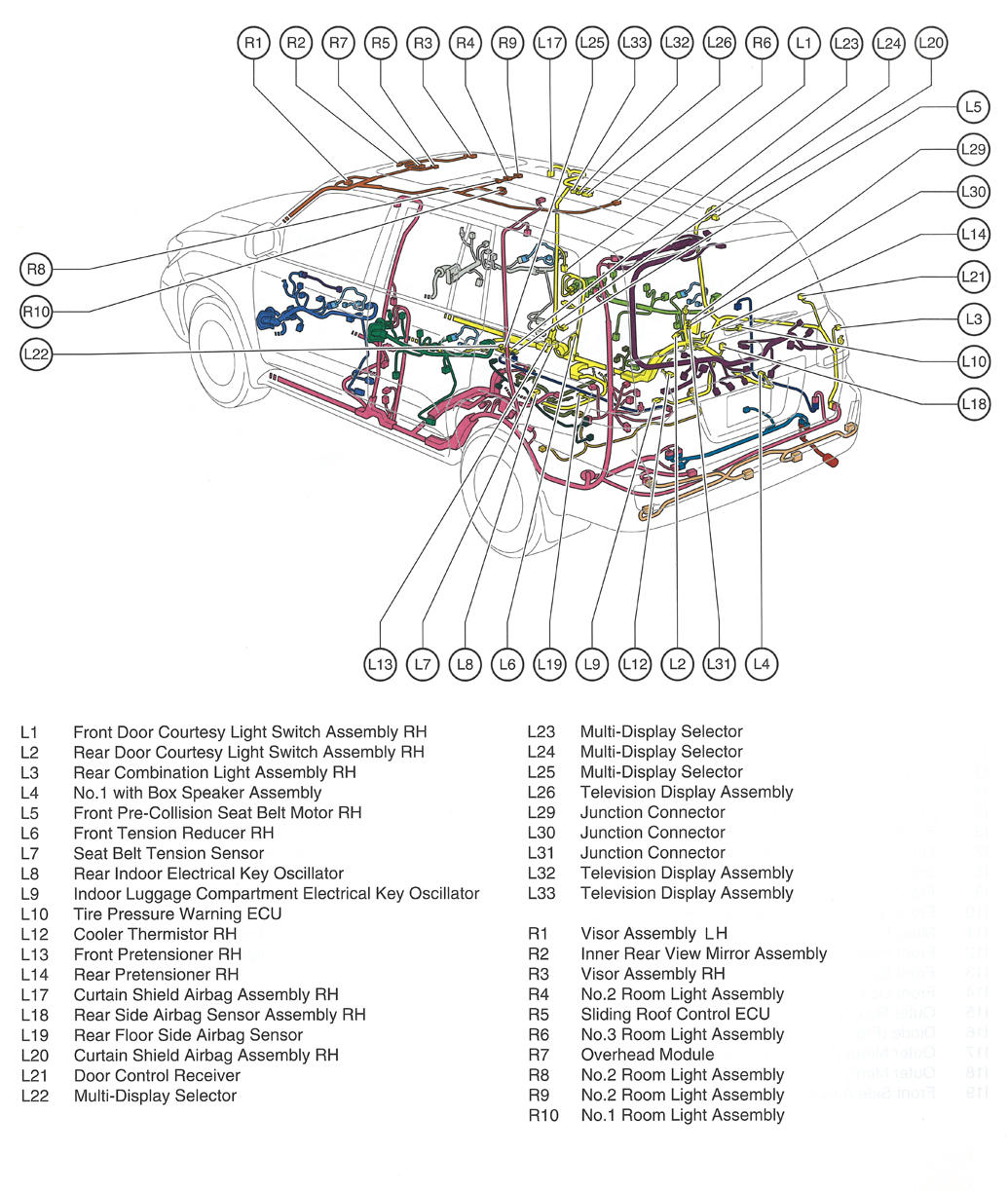

Fig 6: Body Overview

G00458505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

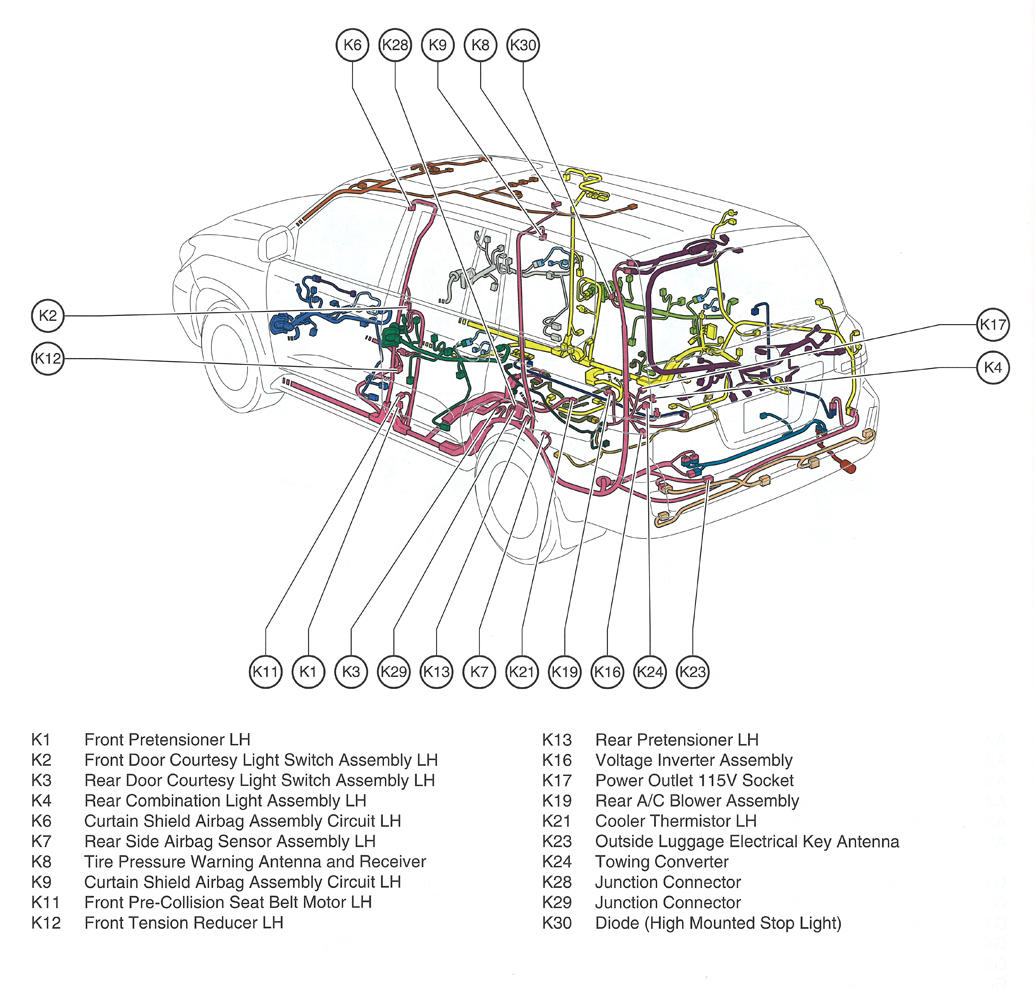

Fig 7: Body Overview

G00458506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

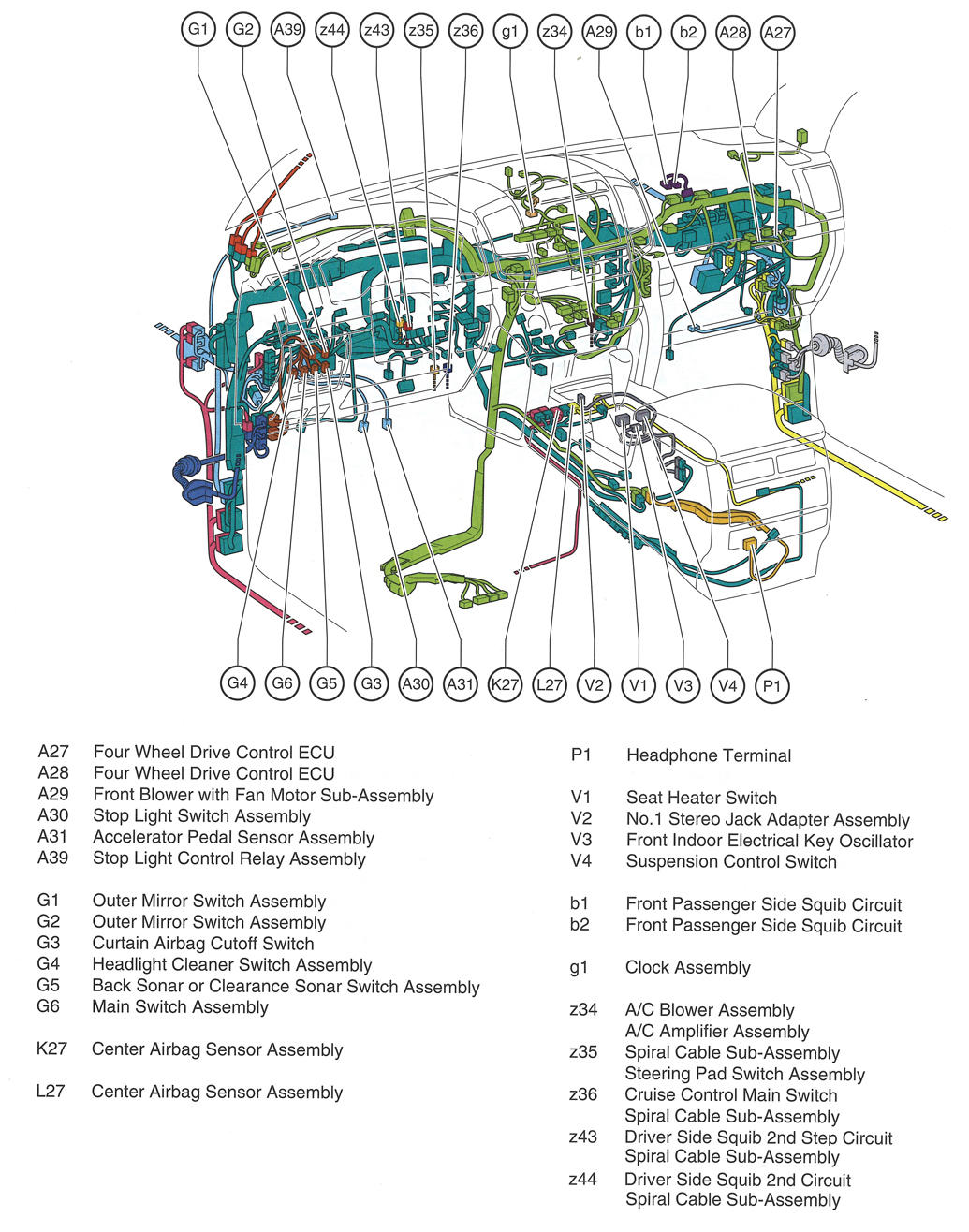

Fig 8: Dash Panel

G00458507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Dash Panel

G00458508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Dash Panel

G00458509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash Panel

G00458510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

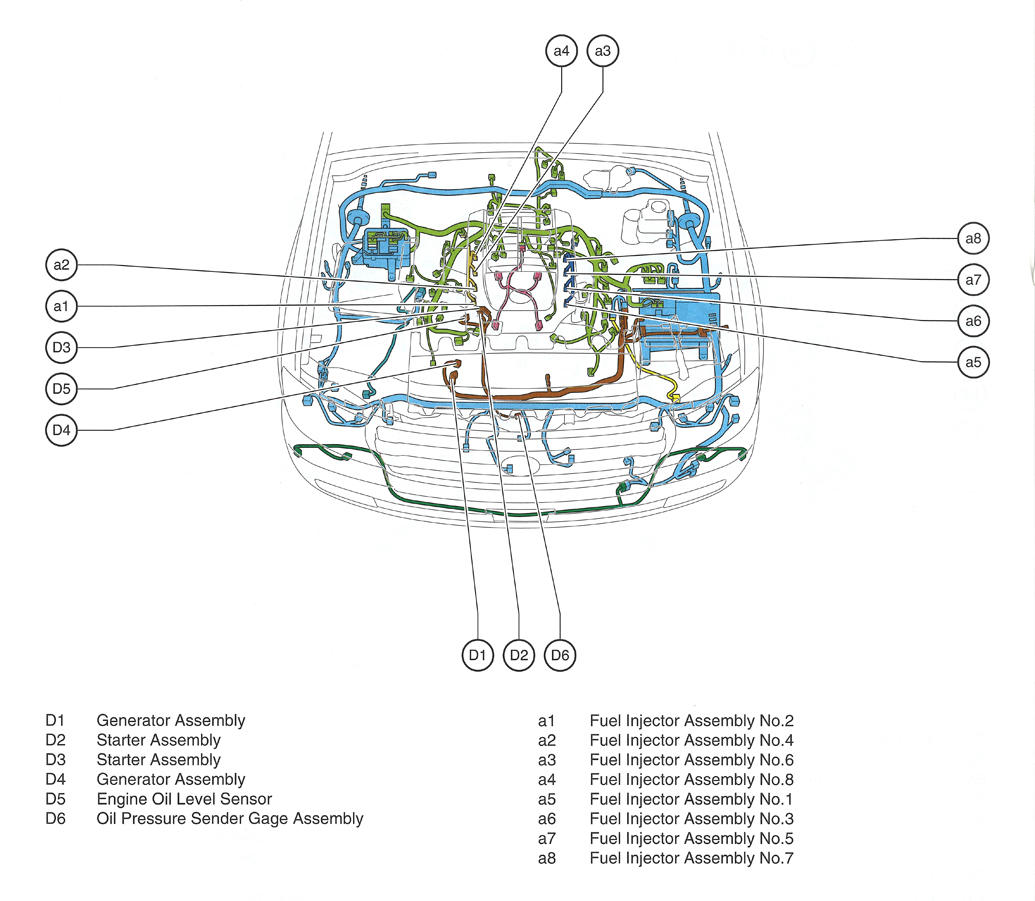

Fig 12: Engine Compartment

G00458511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

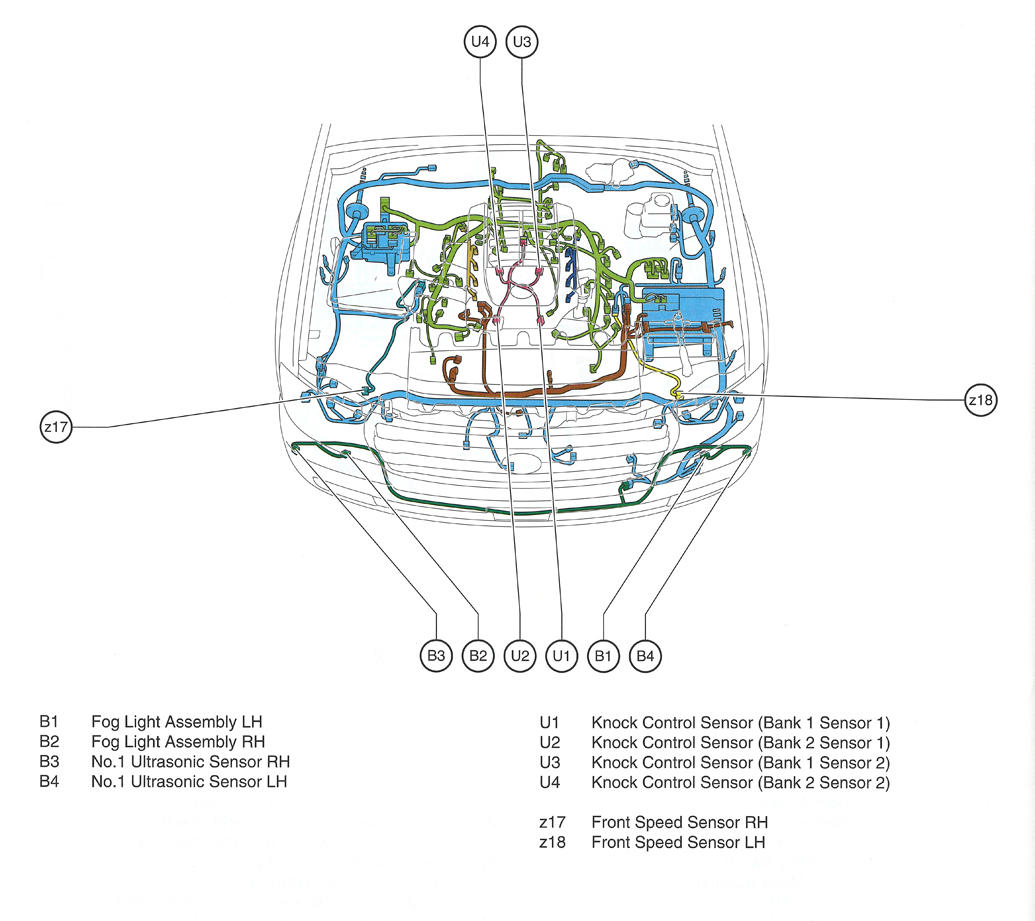

Fig 13: Engine Compartment

G00458512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

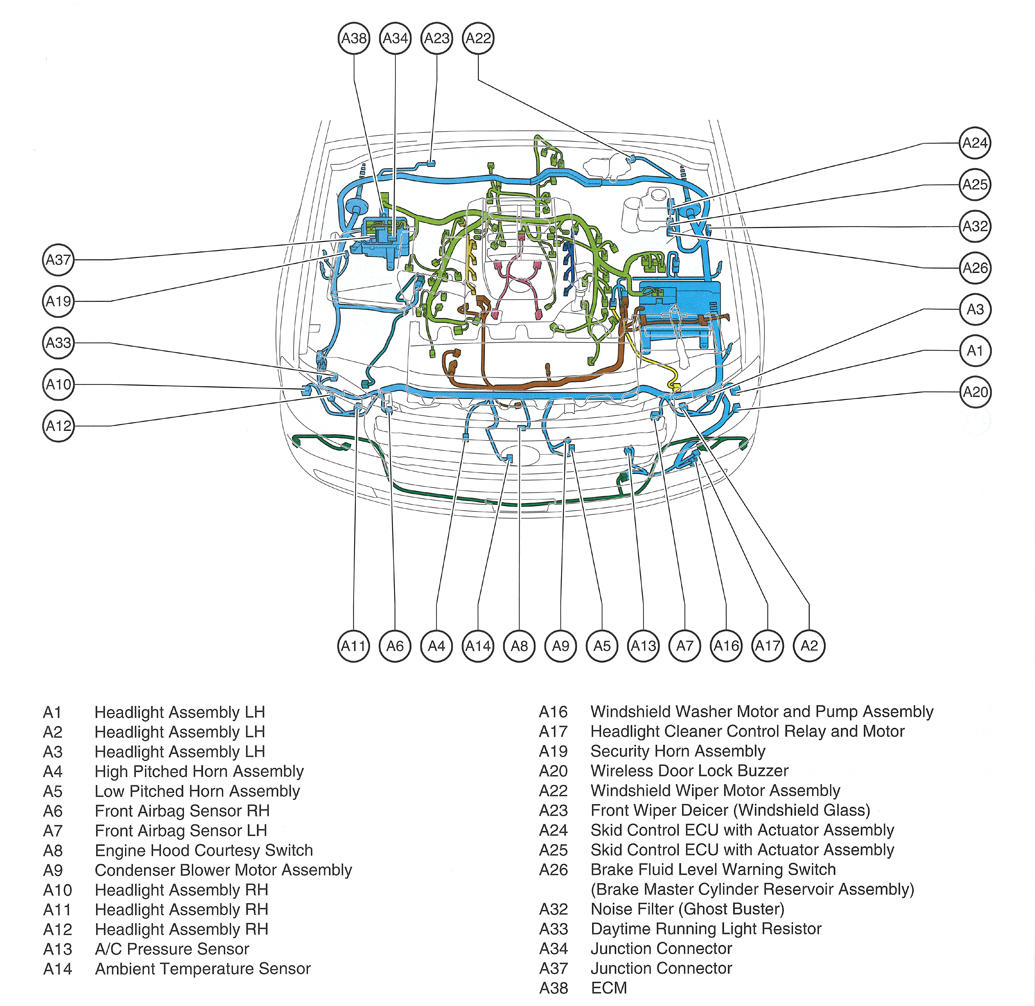

Fig 14: Engine Compartment

G00458513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

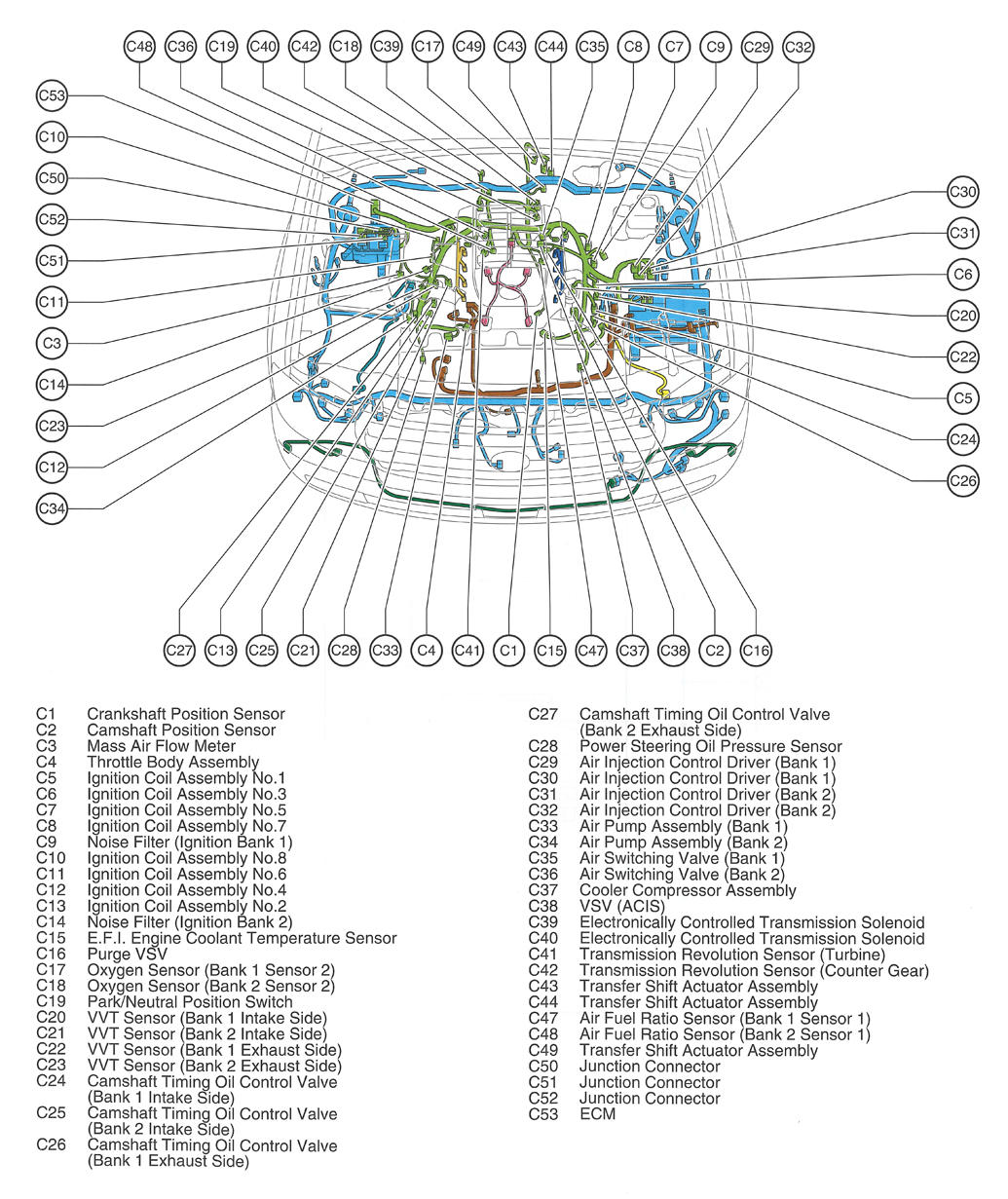

Fig 15: Engine Compartment

G00458514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

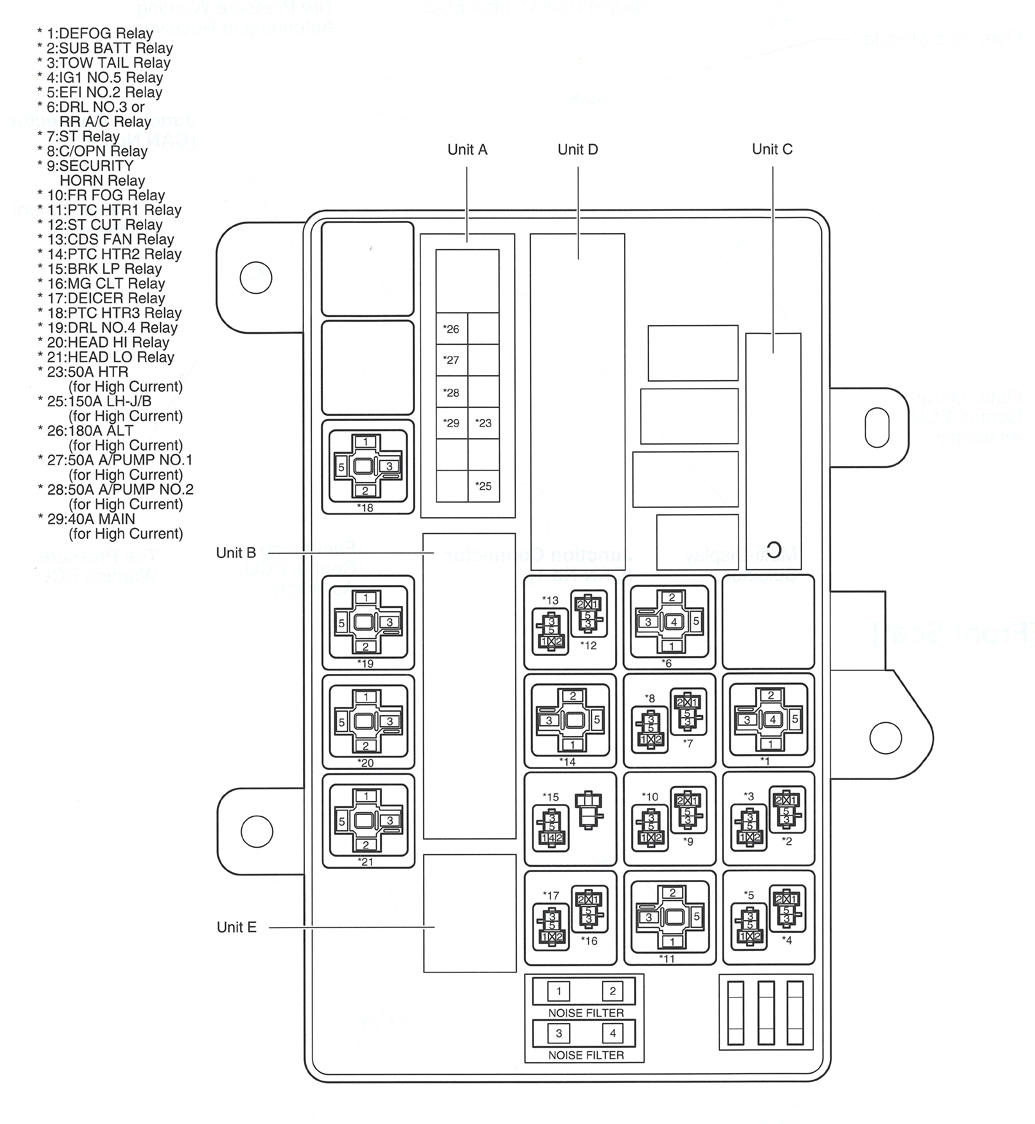

Fig 16: Engine Room Junction Box

G00458515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

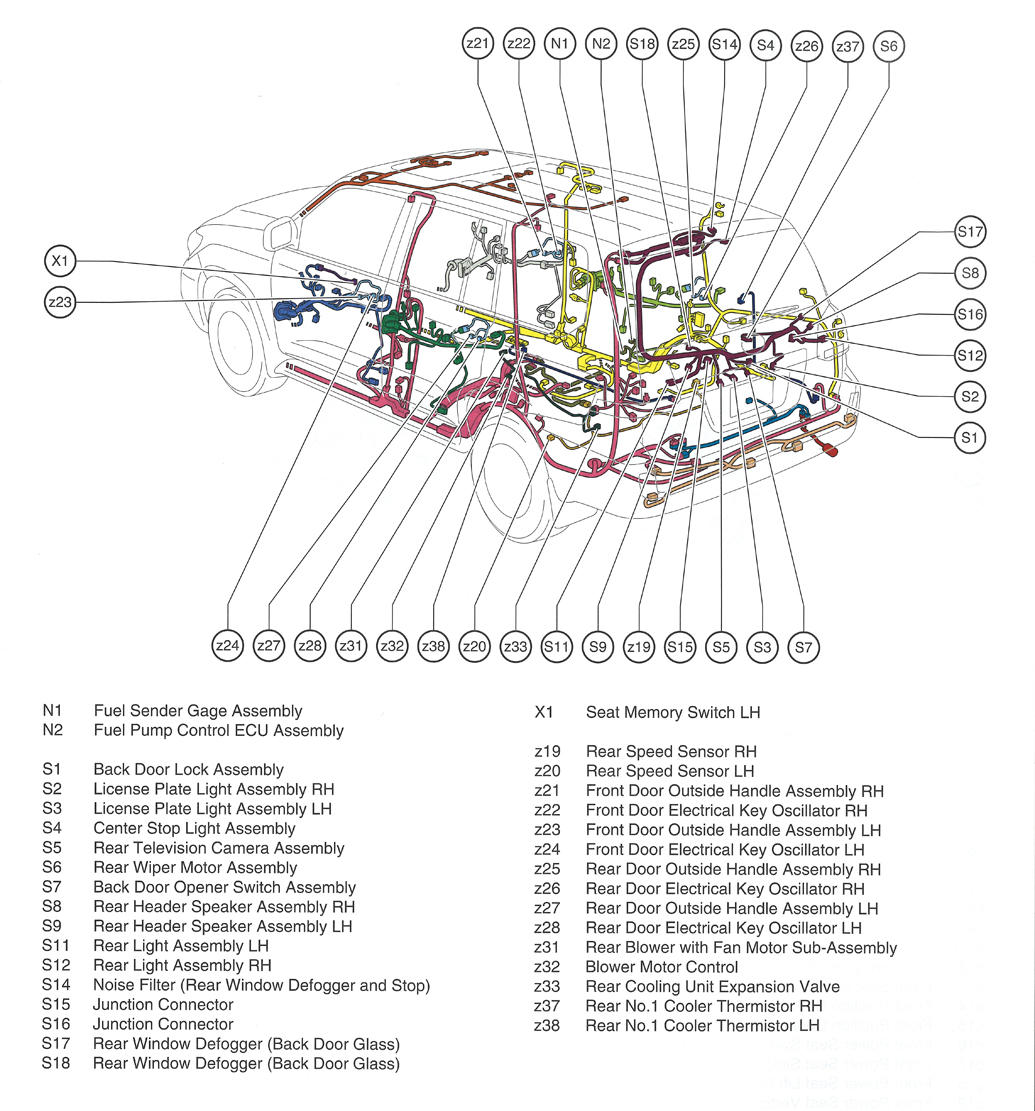

Fig 17: Body Overview

G00458516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

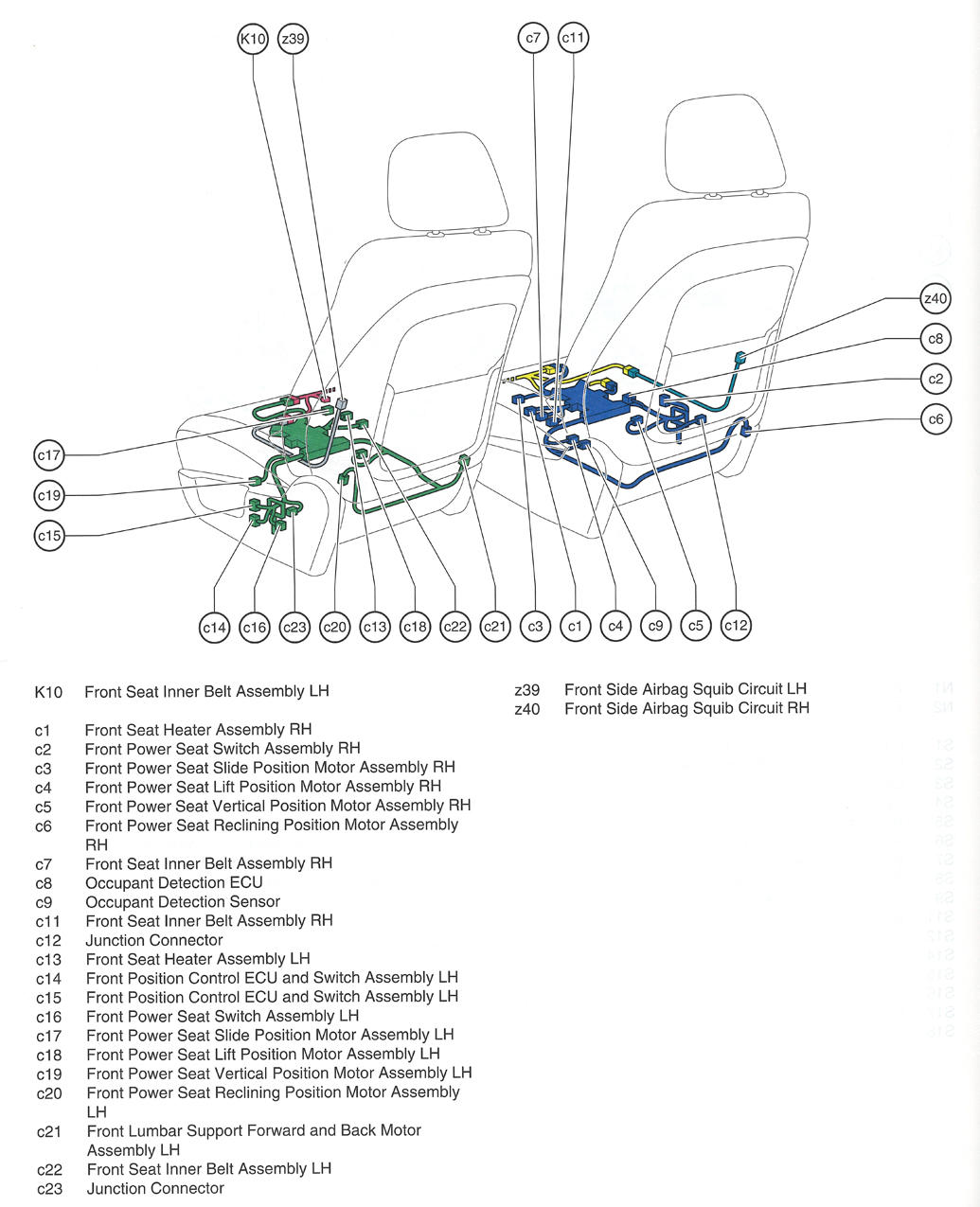

Fig 18: Front Seats

G00458517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

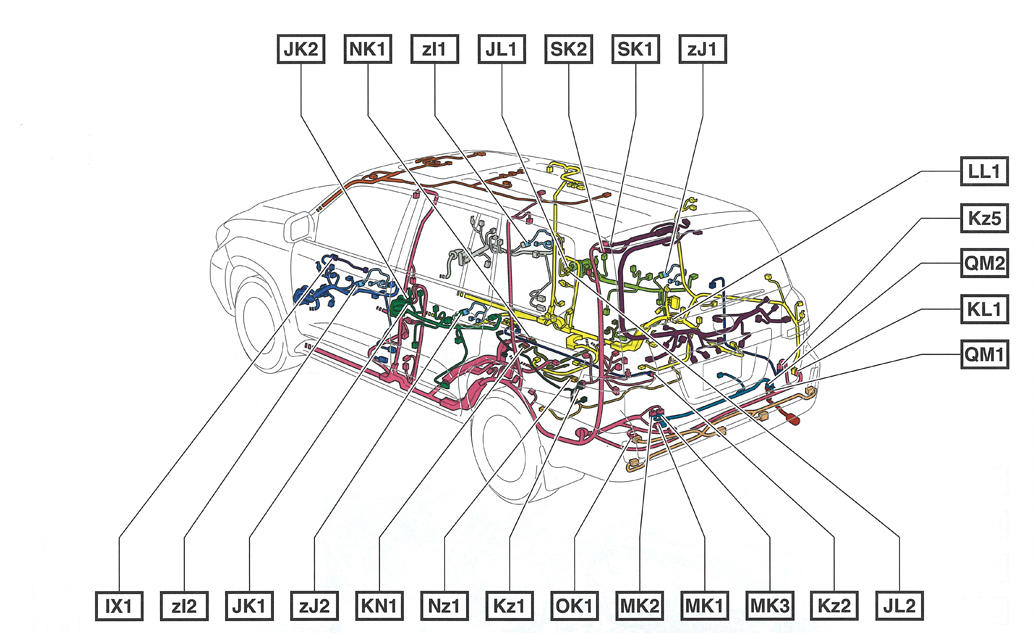

Fig 19: Body Overview

G00458518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

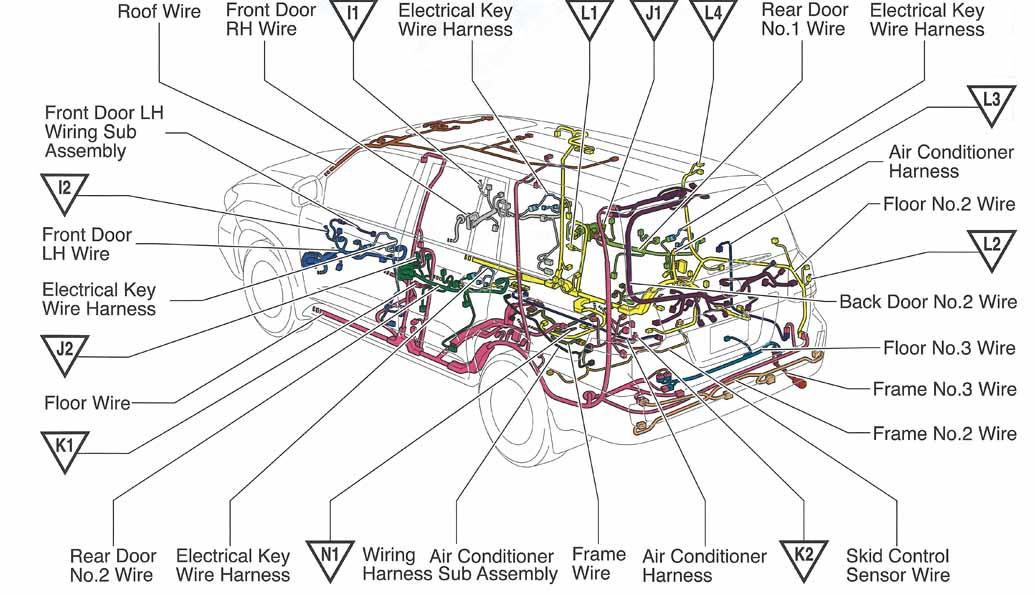

Fig 20: Body Overview

G00458519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

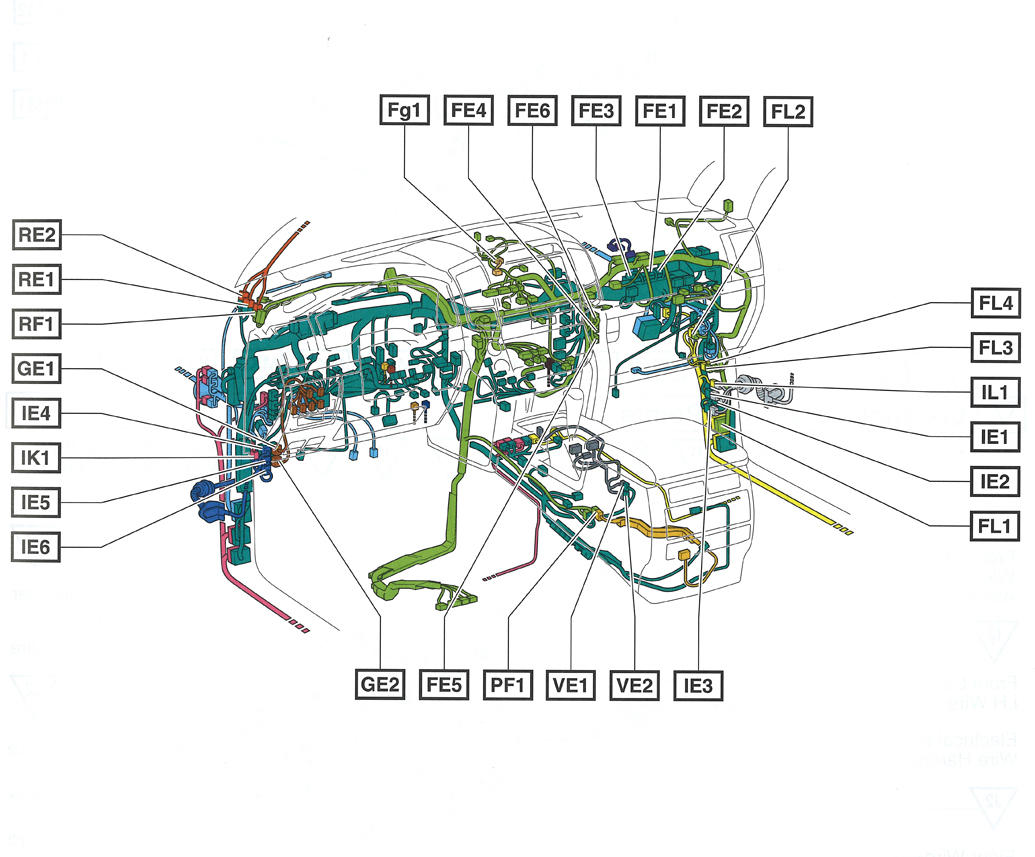

Fig 21: Dash Panel

G00458520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

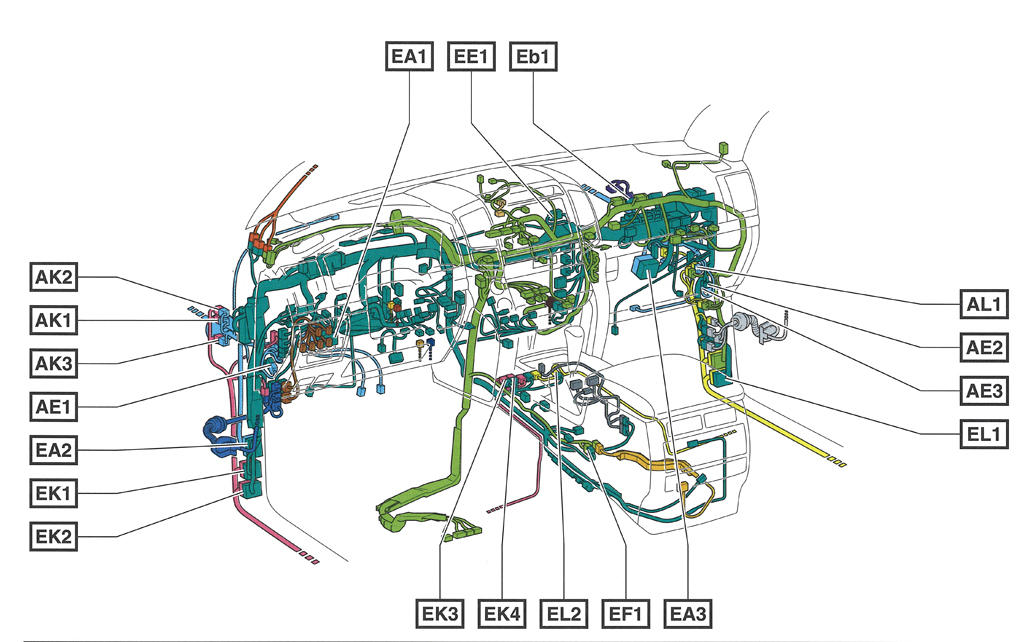

Fig 22: Dash Panel

G00458521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

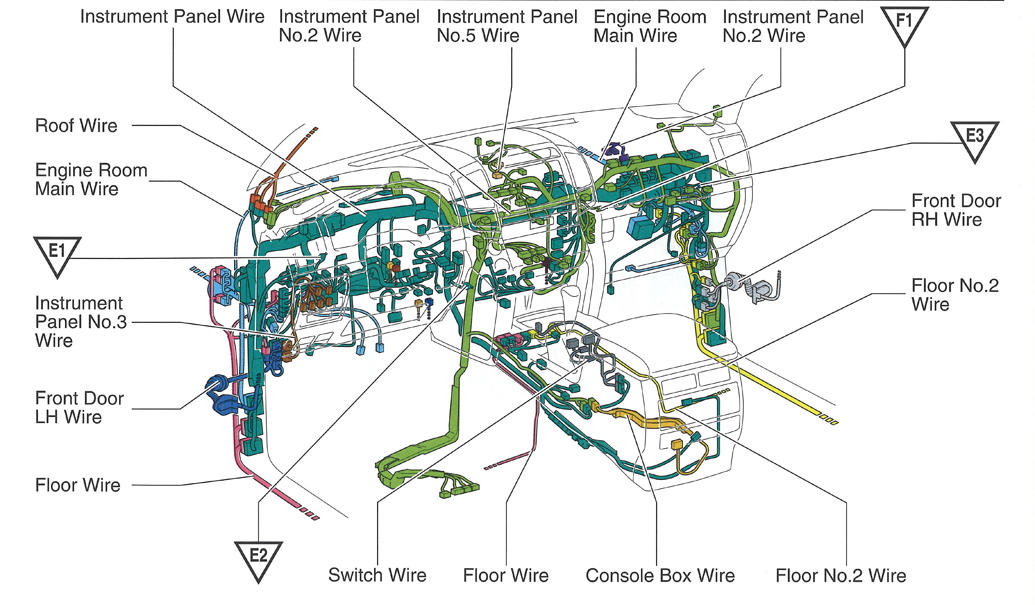

Fig 23: Dash Panel

G00458522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

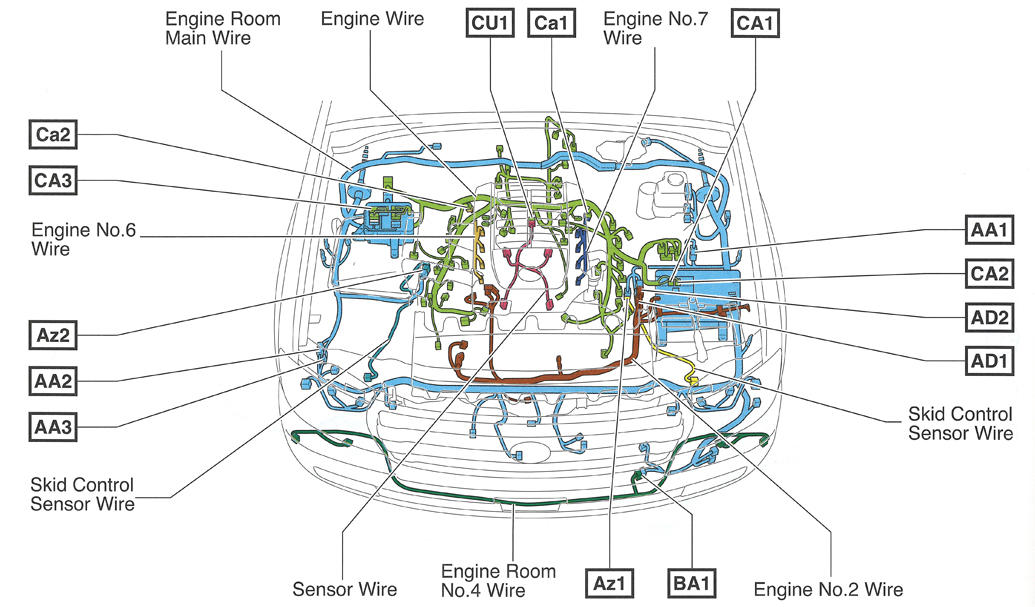

Fig 24: Engine Compartment

G00458523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

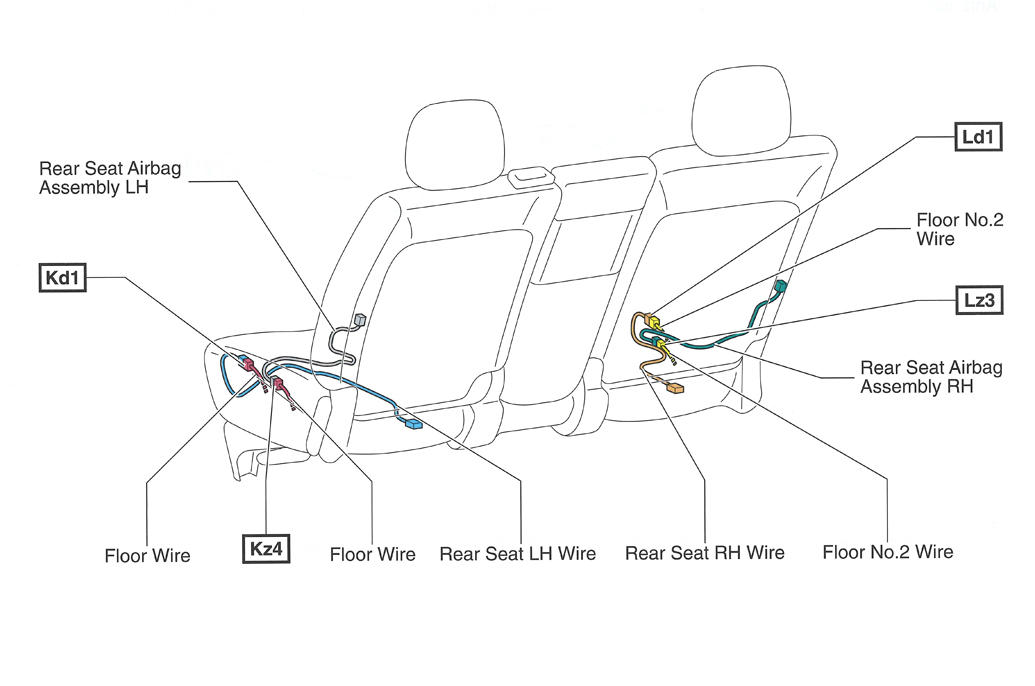

Fig 25: Rear Seats

G00458524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

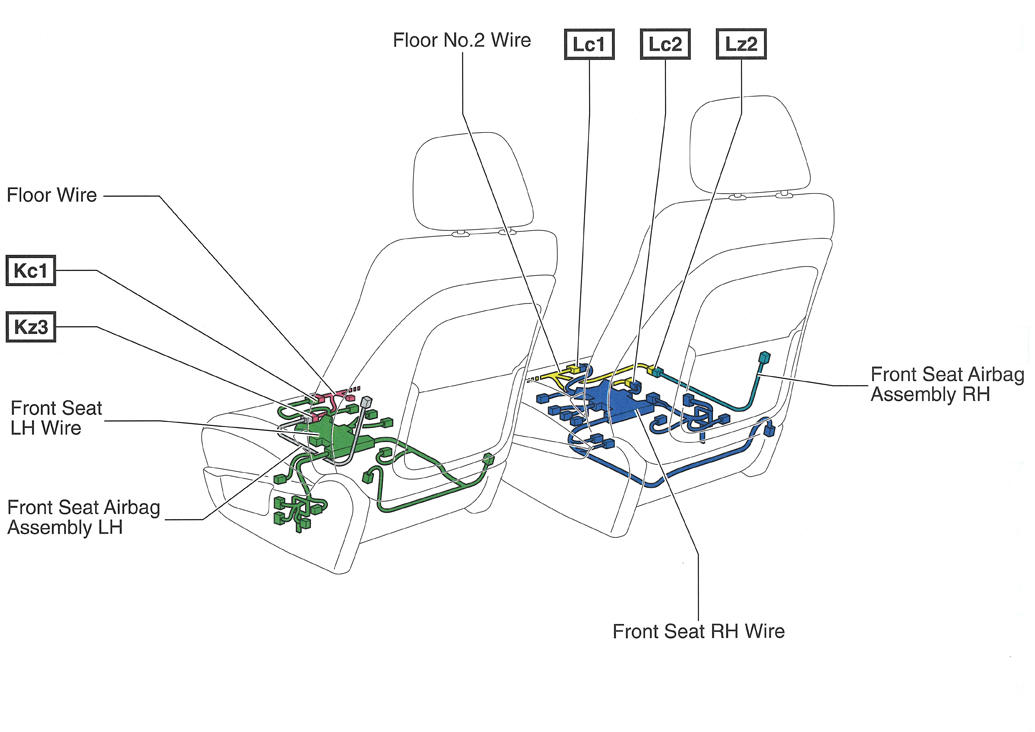

Fig 26: Front Seats

G00458525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
