System Diagram

The configuration of the electronic control system in the AB60F automatic transmission is as shown in the following chart.

Fig 1: Identifying Automatic Transmission System Diagram (1 Of 2)
G05628941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

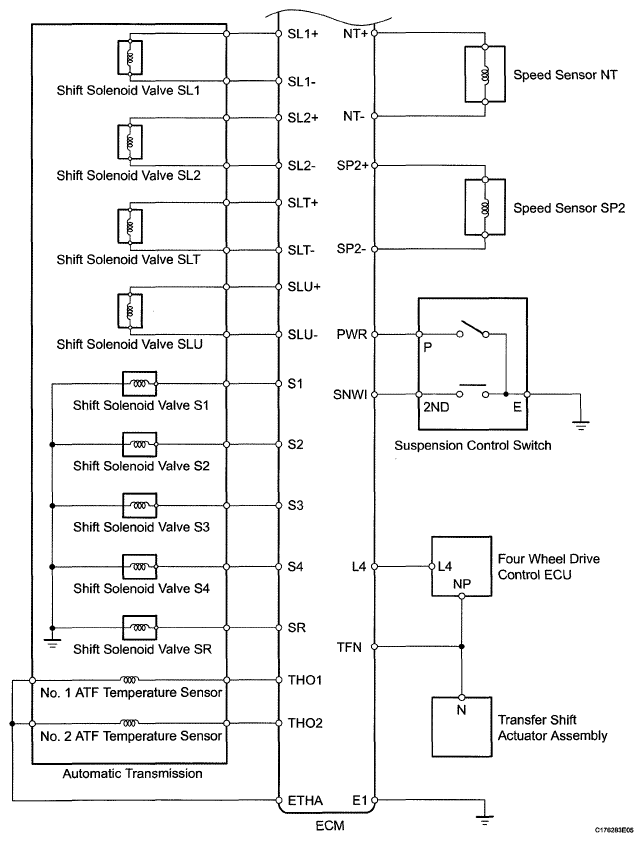

Fig 2: Identifying Automatic Transmission System Diagram (2 Of 2)
G05628942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
