Shift Lever: Components

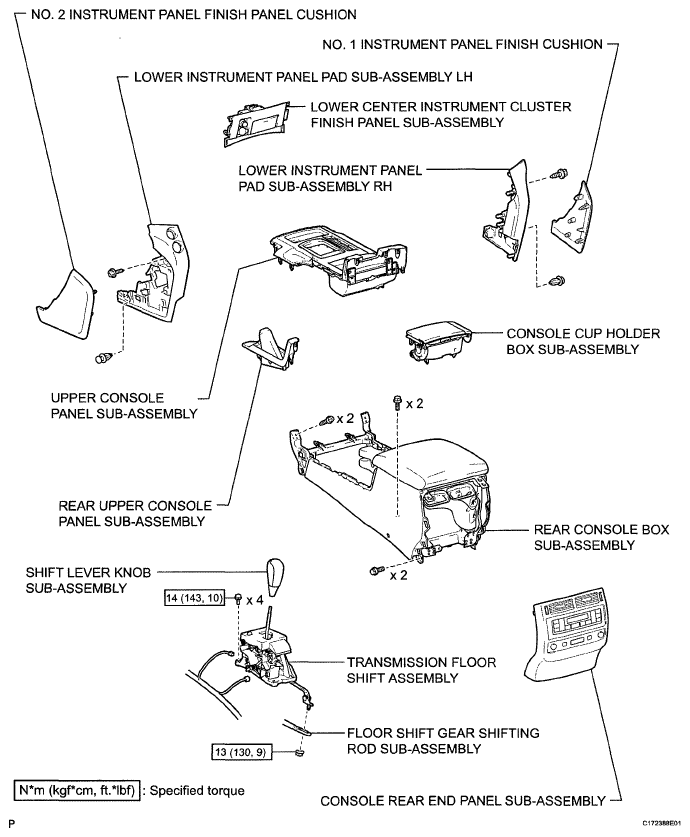

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05629171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

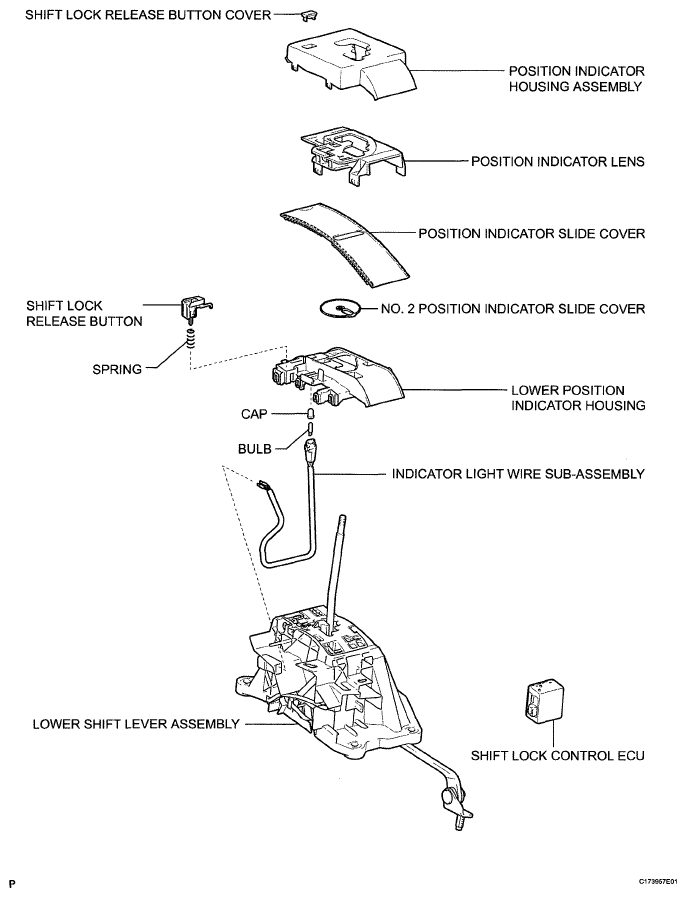

Fig 2: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G05629172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
