Shift Lever: Disassembly

REMOVE SHIFT LOCK RELEASE BUTTON COVER

Fig 1: Locating Transmission Floor Shift Connector And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Fig 2: Removing Shift Lever Knob Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Using a thin-bladed screwdriver, release the connector housing retainer.
2. Using a thin-bladed screwdriver, pull out the 4 (ILL+) and 8 (ILL-) terminals from the rear as shown in the illustration (Fig 3).

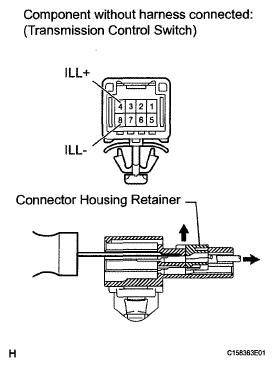

  Fig 3: Pulling Out 4 (ILL+) And 8 (ILL-) Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Rotate the indicator light wire counterclockwise to align the key part and remove the wire.

  Fig 4: Rotating Indicator Light Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING ASSEMBLY
1. Detach the 4 claws and remove the position indicator housing from the floor shift.

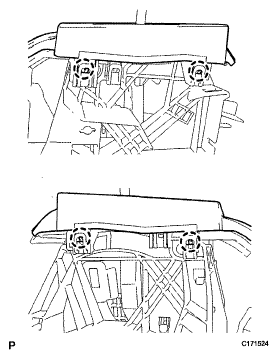

  Fig 5: Identifying Position Indicator Housing With Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LENS
1. Detach the 4 claws and remove the position indicator lens from the floor shift.

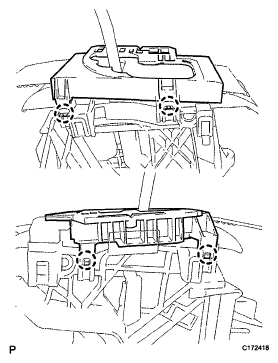

  Fig 6: Identifying Position Indicator Lens With Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER AND NO. 2 POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover with No. 2 position indicator slide cover.
2. Remove the No. 2 position indicator slide cover from the position indicator slide cover.

  Fig 7: Identifying Position Indicator Slide Cover With No. 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Detach the 2 claws and remove the button and spring.

  Fig 8: Identifying Shift Lock Release Button
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER POSITION INDICATOR HOUSING
1. Using a small screwdriver, detach the 6 claws and remove the housing.

  Fig 9: Removing Lower Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK CONTROL ECU
1. Disconnect the shift lock solenoid connector.
2. Detach the 3 claws and remove the ECU.

  Fig 10: Identifying Shift Lock Control ECU Connector With Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
