Shift Lever: Reassembly

  1. INSTALL SHIFT LOCK CONTROL ECU
    1. Attach the 3 claws to install the ECU to the floor shift.
    2. Connect the shift lock solenoid connector.
      Fig 1: Identifying Shift Lock Control ECU Connector With Claws
      G05629189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER POSITION INDICATOR HOUSING
    1. Attach the 6 claws to install the housing.
      Fig 2: Installing Lower Position Indicator Housing
      G05629190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SHIFT LOCK RELEASE BUTTON
    1. Attach the 2 claws to install the spring and button.
      Fig 3: Identifying Shift Lock Release Button
      G05629191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL POSITION INDICATOR SLIDE COVER AND NO. 2 POSITION INDICATOR SLIDE COVER
    1. Install the No. 2 position indicator slide cover to the position indicator slide cover.
    2. Install the position indicator slide cover together with the No. 2 position indicator slide cover.

      HINT:

      Install the position indicator slide cover so that its mark faces the vehicle front.

      Fig 4: Installing Position Indicator Slide Cover And No. 2 Position Indicator Slide Cover
      G05629192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

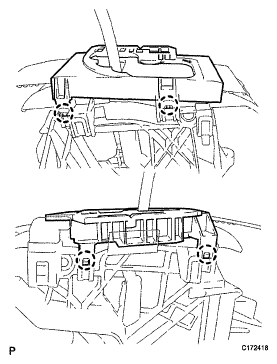

  5. INSTALL POSITION INDICATOR LENS
    1. Attach the 4 claws to install the position indicator lens.
      Fig 5: Identifying Position Indicator Lens With Claws
      G05629193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

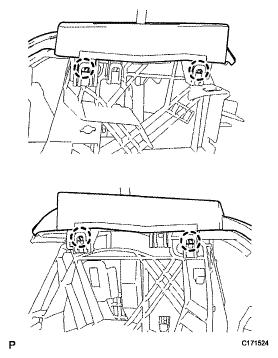

  6. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
    1. Attach the 4 claws to install the position indicator housing.
      Fig 6: Identifying Position Indicator Housing With Claws
      G05629194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
    1. Align the wire with the key part of the position indicator housing lower, and install the wire. Then rotate the wire clockwise until it locks.
      Fig 7: Rotating Wire Clockwise
      G05629195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

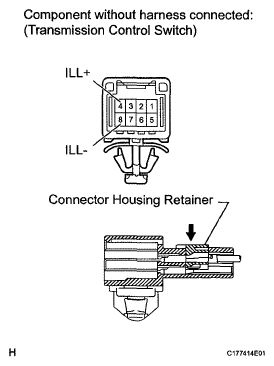

    2. Securely connect the 2 wire terminals to terminal 4 (ILL+) and 8 (ILL-) of the transmission control switch connector. Then push the connector housing retainer to lock it.
      Fig 8: Identifying Transmission Control Switch Connector Terminals
      G05629196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the shift lock solenoid and indicator light wire harness as shown in the illustration (Fig 9).
      Fig 9: Identifying Indicator Light Wire Harness
      G05629197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

    Torque: 3 to 5 N*m (31 to 51 kgf*cm, 27 to 44 in.*lbf)

  9. INSTALL SHIFT LOCK RELEASE BUTTON COVER
    Fig 10: Installing Shift Lever Knob Sub-Assembly
    G05629198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
