Home >> Toyota >> 2008 >> Land Cruiser >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Transmission Wire >> Components

Transmission Wire: Components

Fig 1: Identifying Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G05629082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

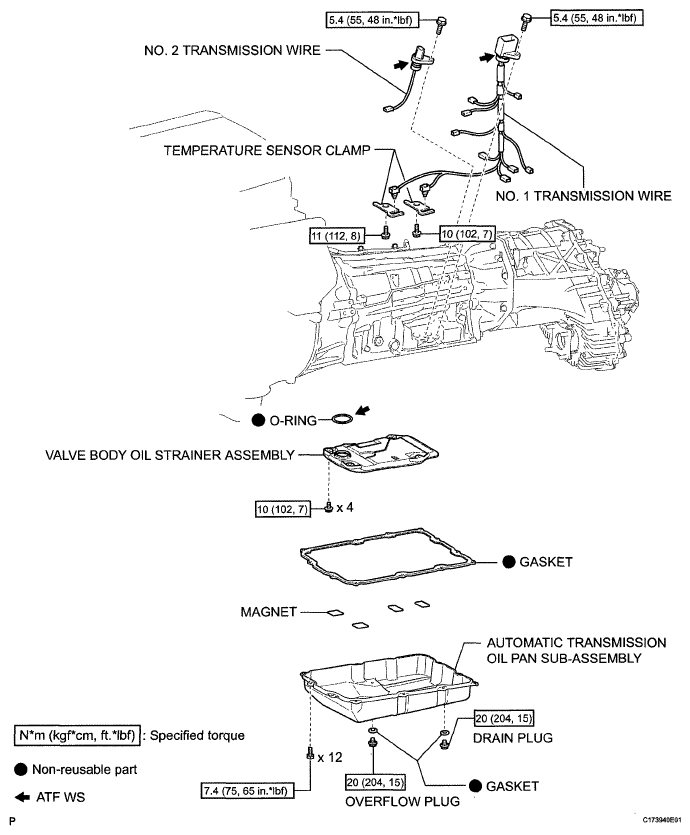

Fig 2: Identifying Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G05629083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
