Power Window Control System
>>
Parts Location
Parts Location

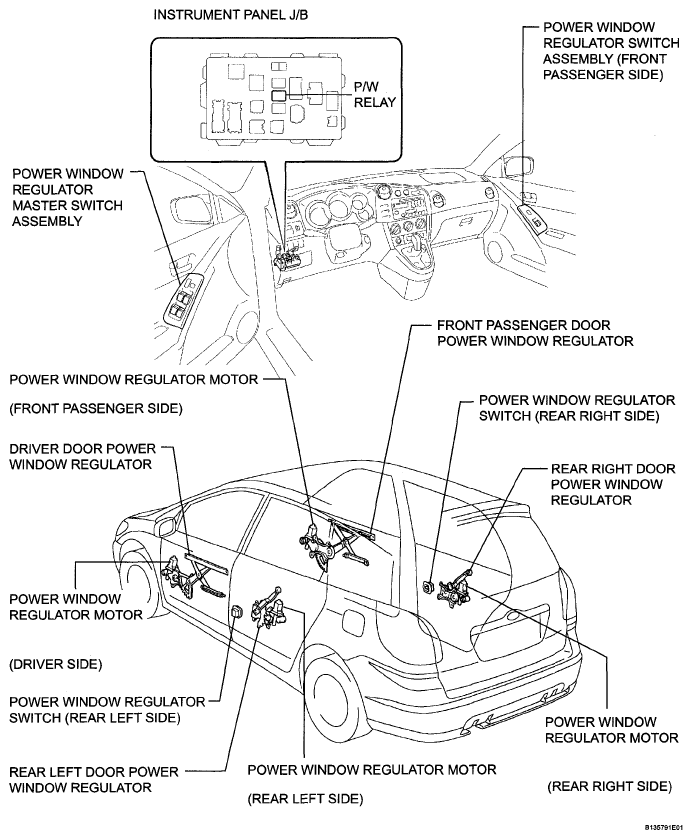

Fig 1: Identifying Power Window Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
