Front Wiper and Washer System: Notes

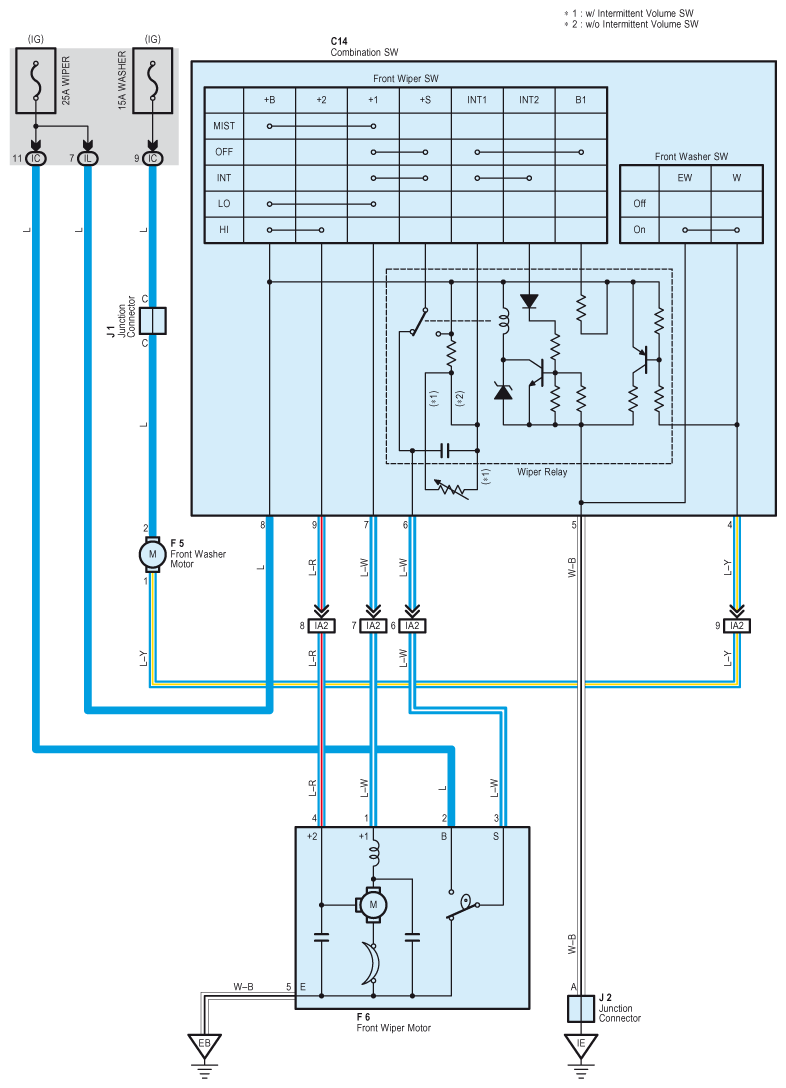

Fig 1: Front Wiper And Washer - Circuit Diagram
G07599170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
