Home >> Toyota >> 2008 >> Matrix Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight System >> Notes

Headlight System: Notes

Fig 1: Headlight - Circuit Diagram (1 Of 2)
G07599157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

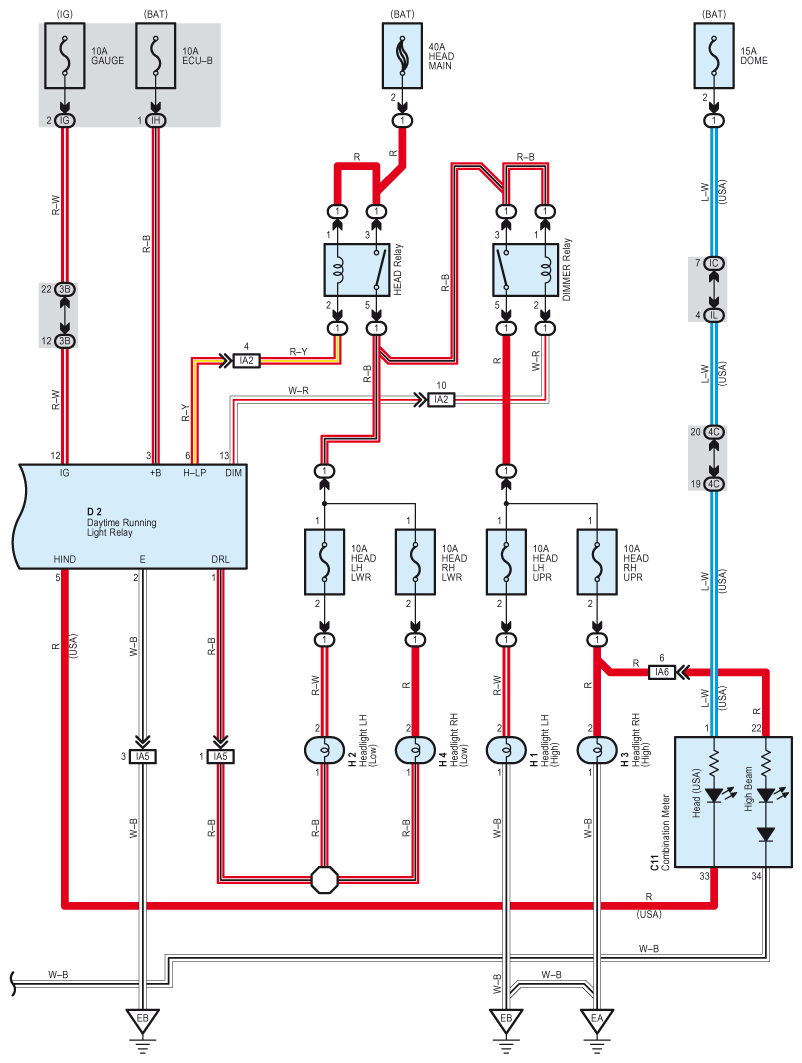

Fig 2: Headlight - Circuit Diagram (2 Of 2)
G07599158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
