Home >> Toyota >> 2008 >> Matrix Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Key Reminder and Light Reminder System >> Notes

Key Reminder and Light Reminder System: Notes

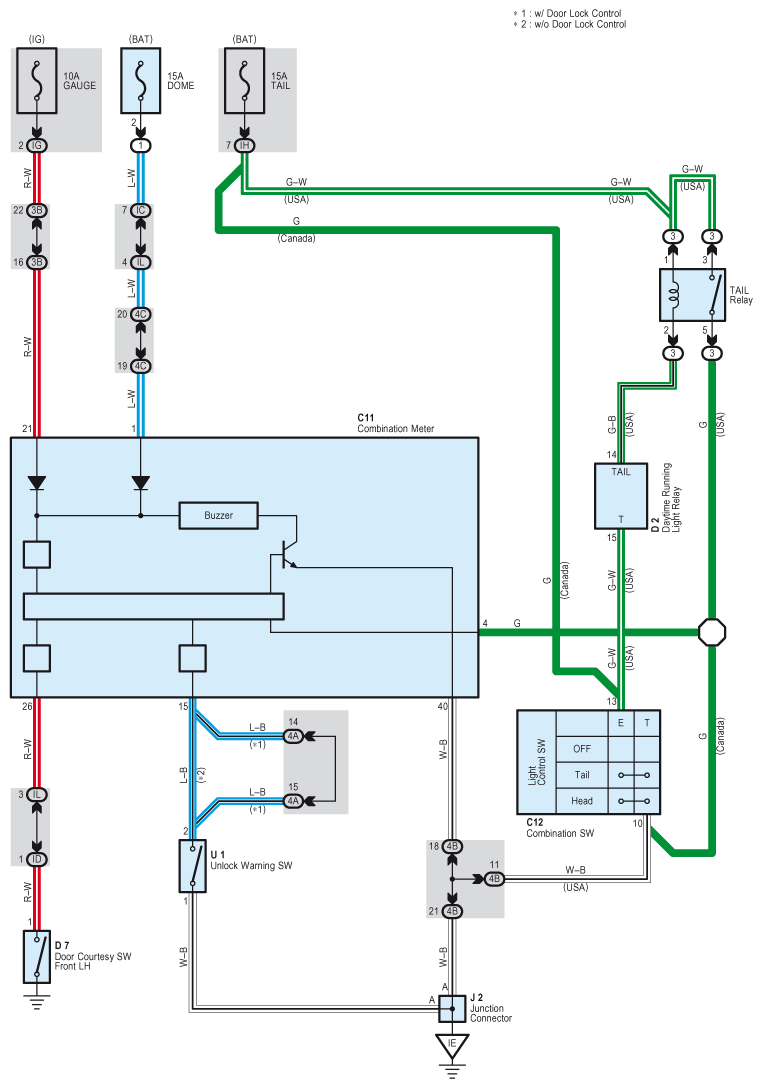

Fig 1: Key Reminder And Light Reminder - Circuit Diagram

G07599218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
