Radiator Fan System: Notes

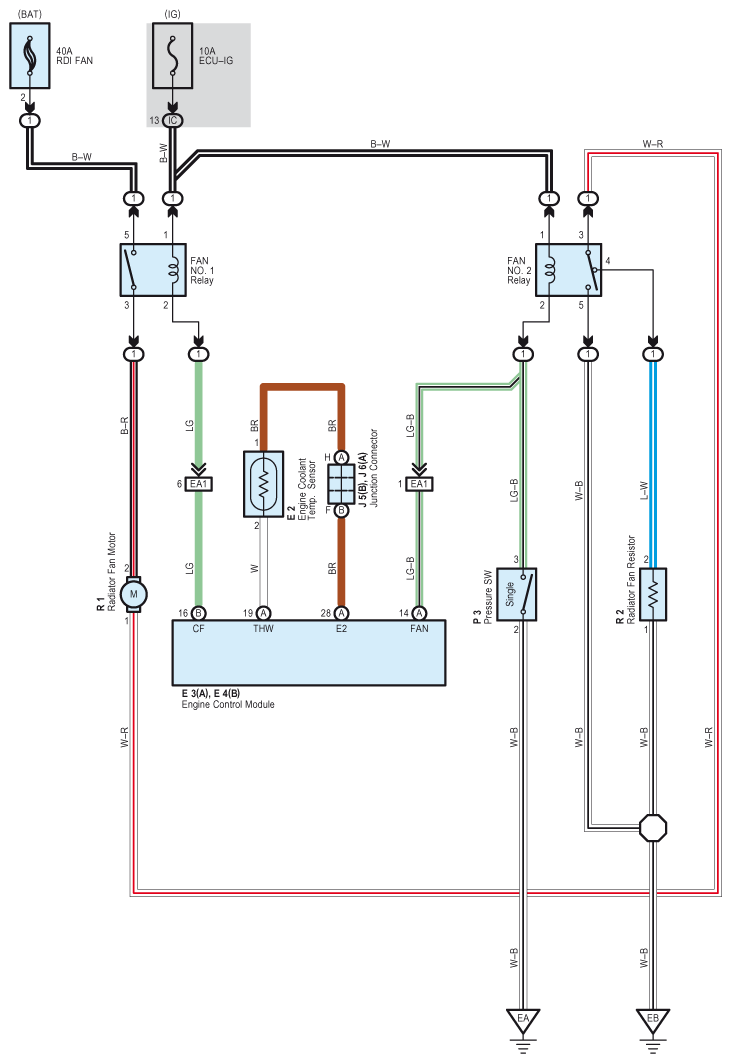

Fig 1: Radiator Fan - Circuit Diagram

G07599231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
