Seat Belt Warning System: Notes

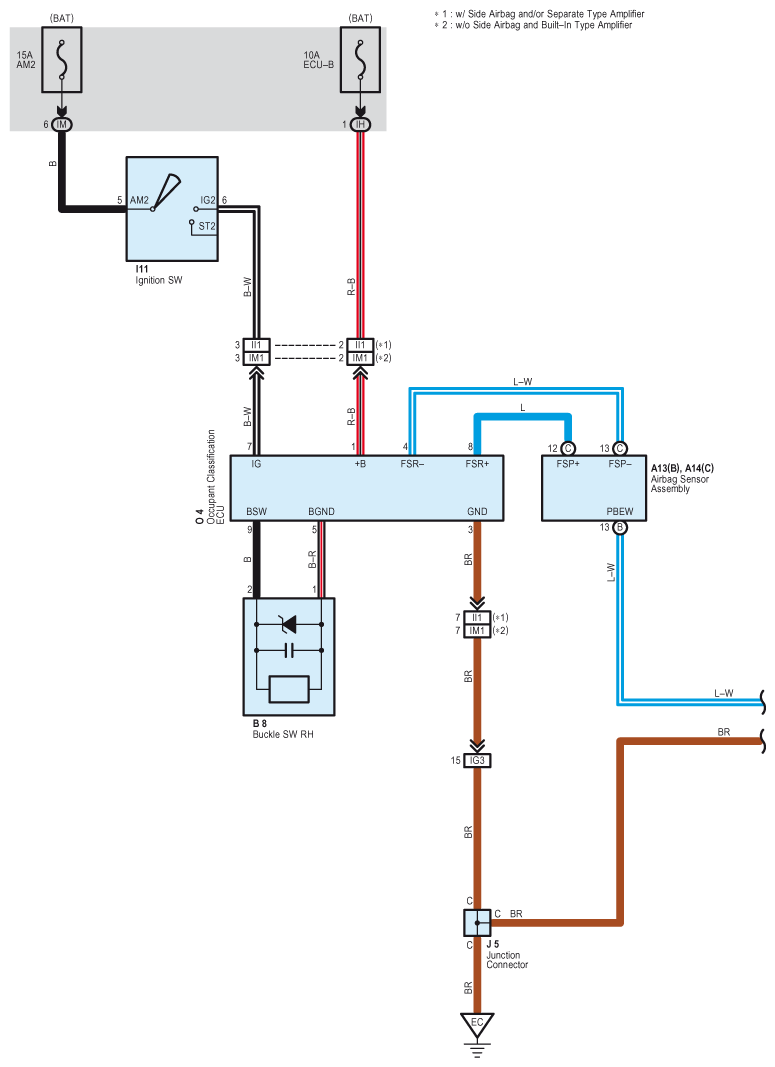

Fig 1: Seat Belt Warning - Circuit Diagram (1 Of 2)
G07599219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

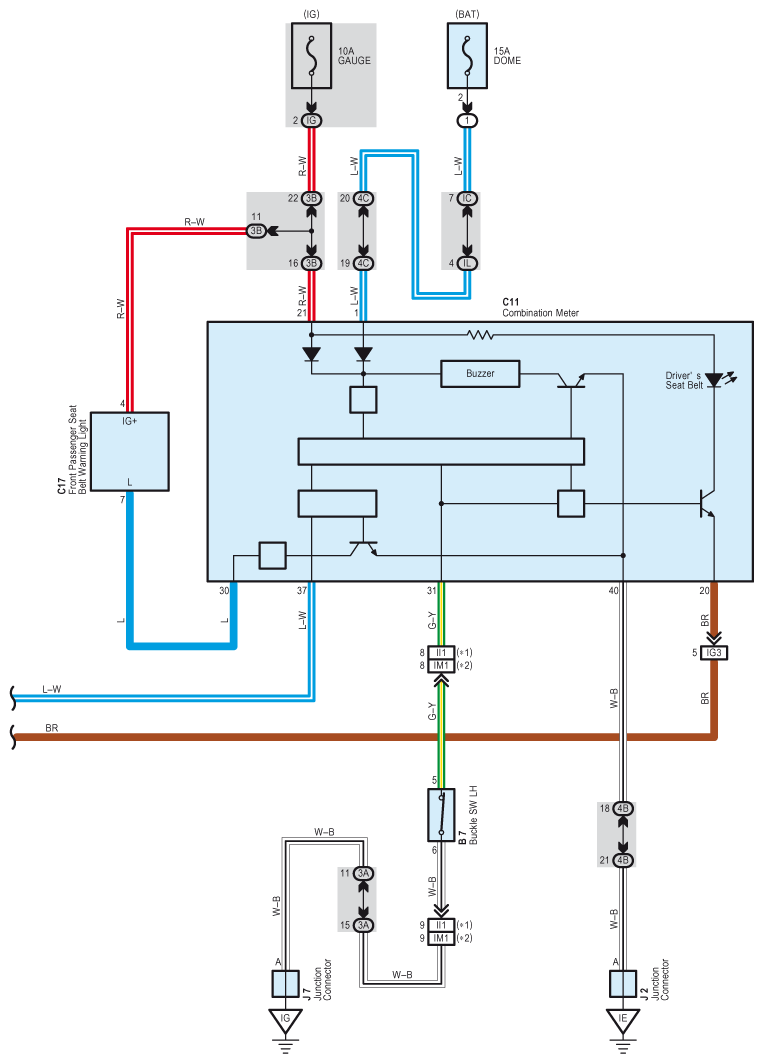

Fig 2: Seat Belt Warning - Circuit Diagram (2 Of 2)
G07599220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
