Mode 6 - TOYOTA
>>
YARIS
Mode 6 - TOYOTA: YARIS

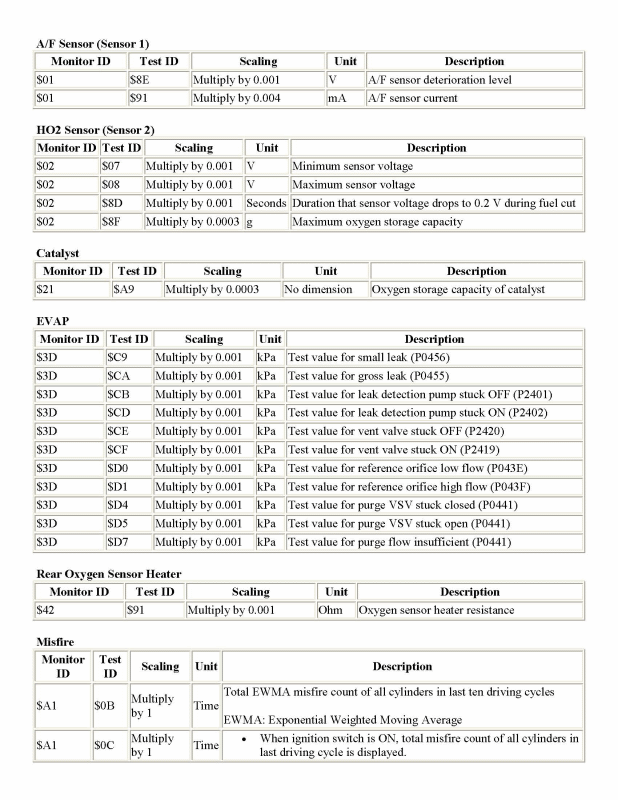

Fig 1: Mode 6 Data For Yaris (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

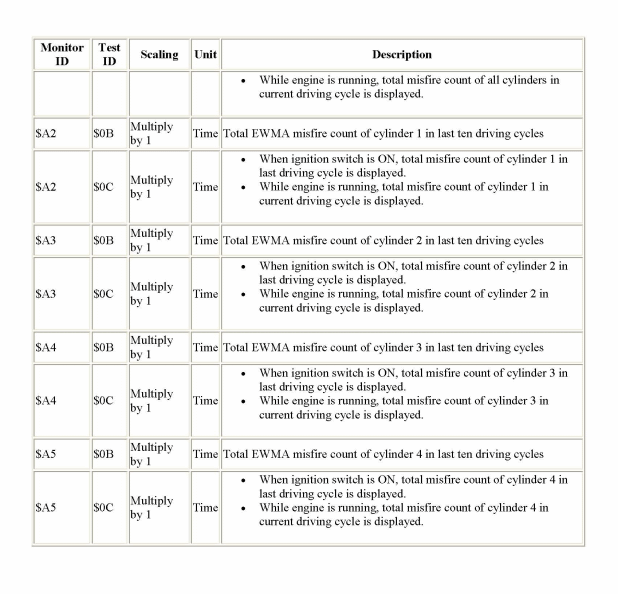

Fig 2: Mode 6 Data For Yaris (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
