Windshield Glass: Components

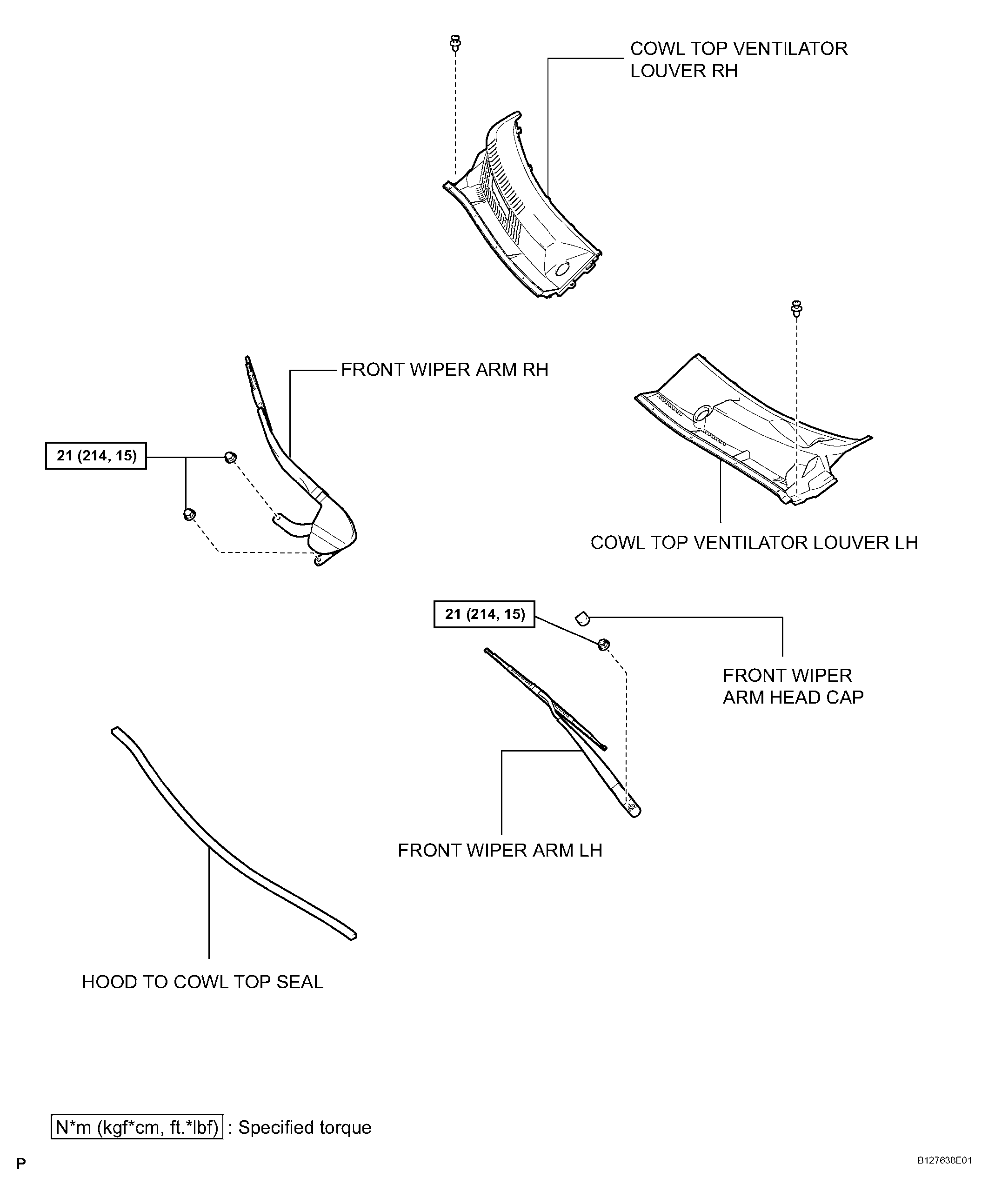

Fig 1: Identifying Windshield Glass Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Windshield Glass Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

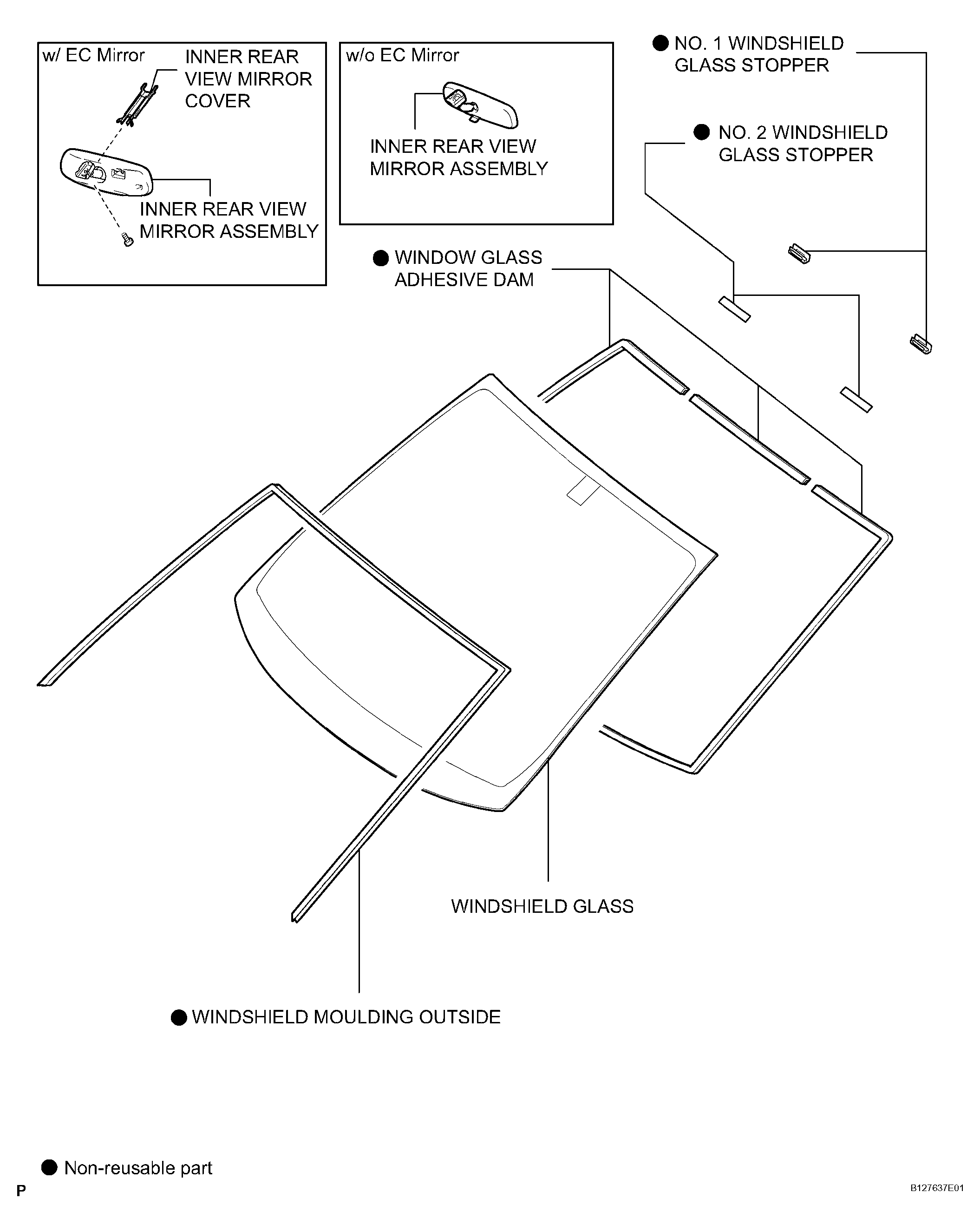

Fig 3: Identifying Windshield Glass Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
