Parts Location

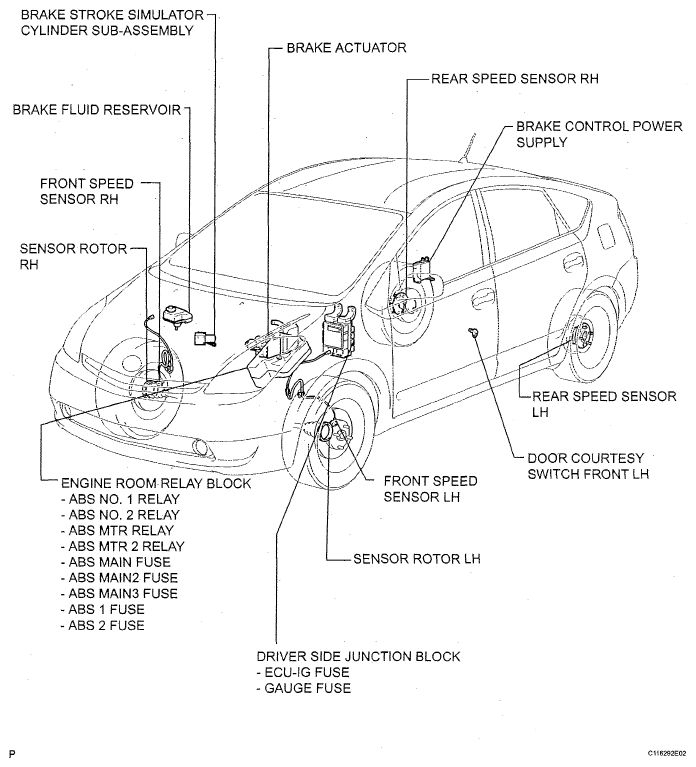

Fig 1: Identifying Brake Control Parts Location (1 Of 2)
G05189184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

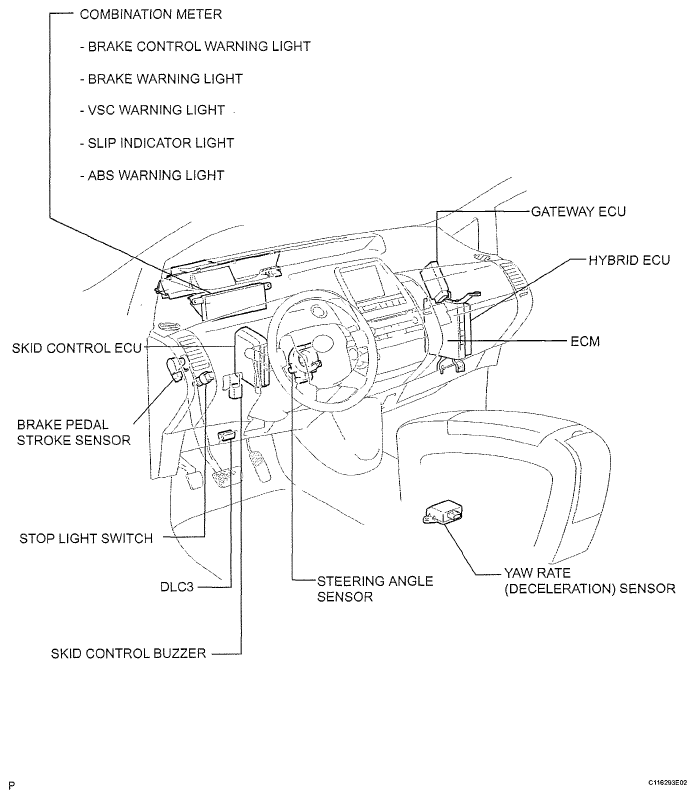

Fig 2: Identifying Brake Control Parts Location (2 Of 2)
G05189185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
