OEM System Circuits: Clock: Notes

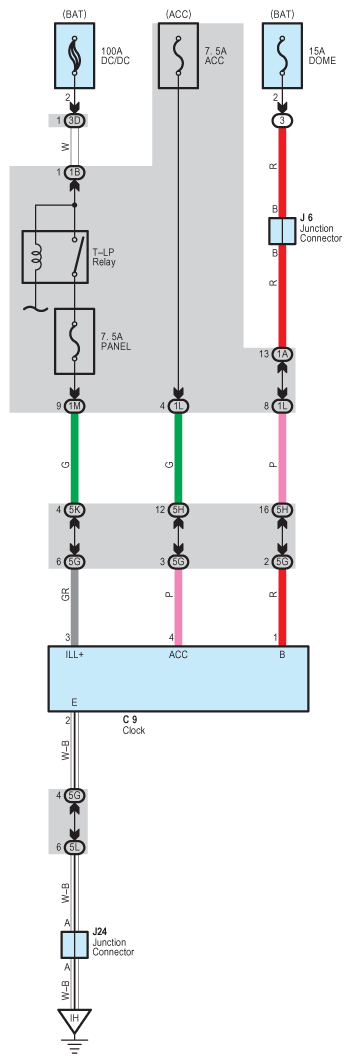

Fig 1: Clock - Circuit Diagram

G07577108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
