Front Fog Light System: Notes

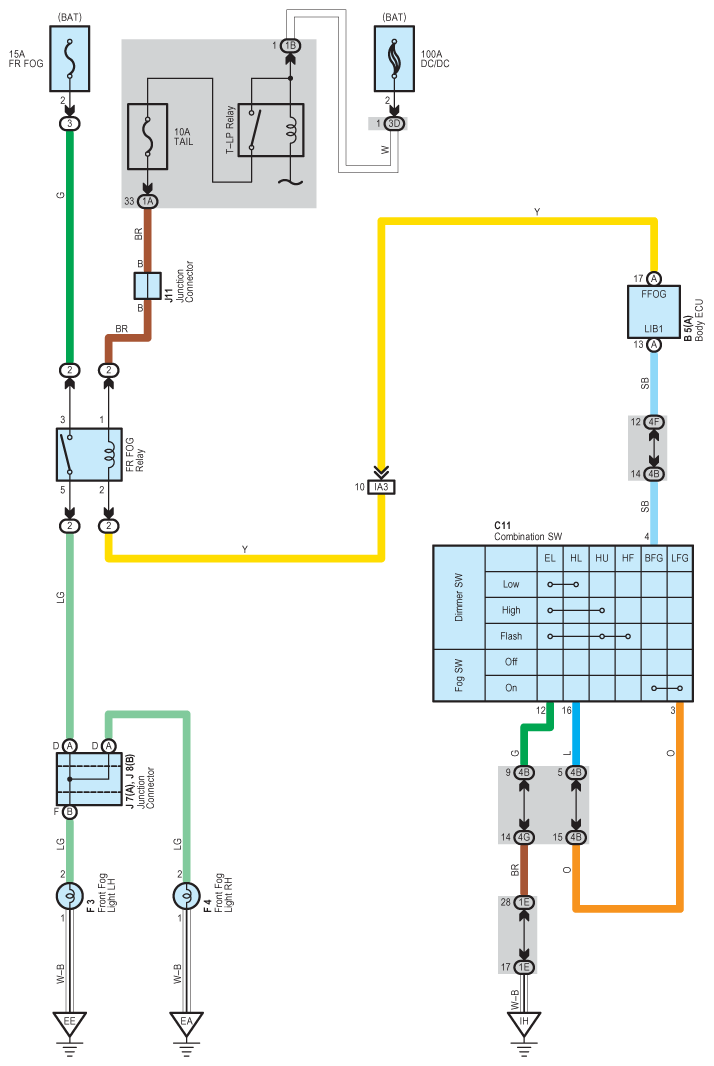

Fig 1: Front Fog Light - Circuit Diagram
G07577010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
