Home >> Toyota >> 2008 >> Prius Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Headlight Beam Level Control System >> Notes

Headlight Beam Level Control System: Notes

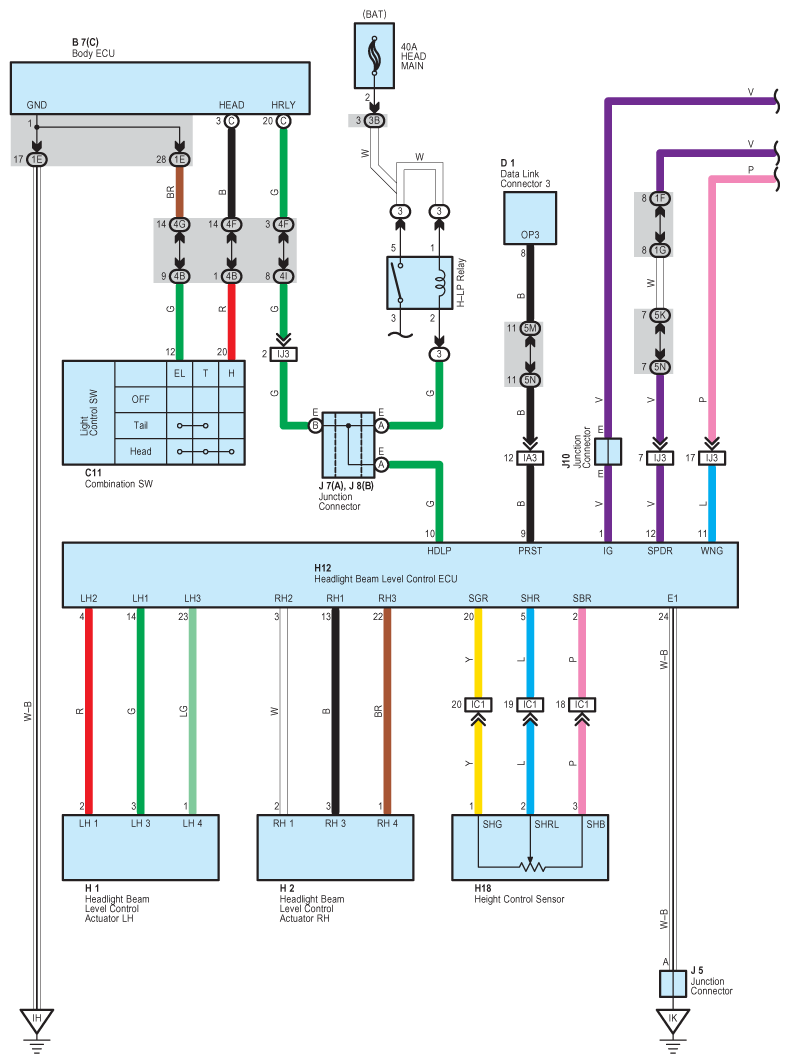

Fig 1: Headlight Beam Level Control - Circuit Diagram (1 Of 2)
G07577007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Headlight Beam Level Control - Circuit Diagram (2 Of 2)
G07577008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
